➤ Used MORI SEIKI NT1000SZM Lathe For Sale | gindumac.com

Show in original language

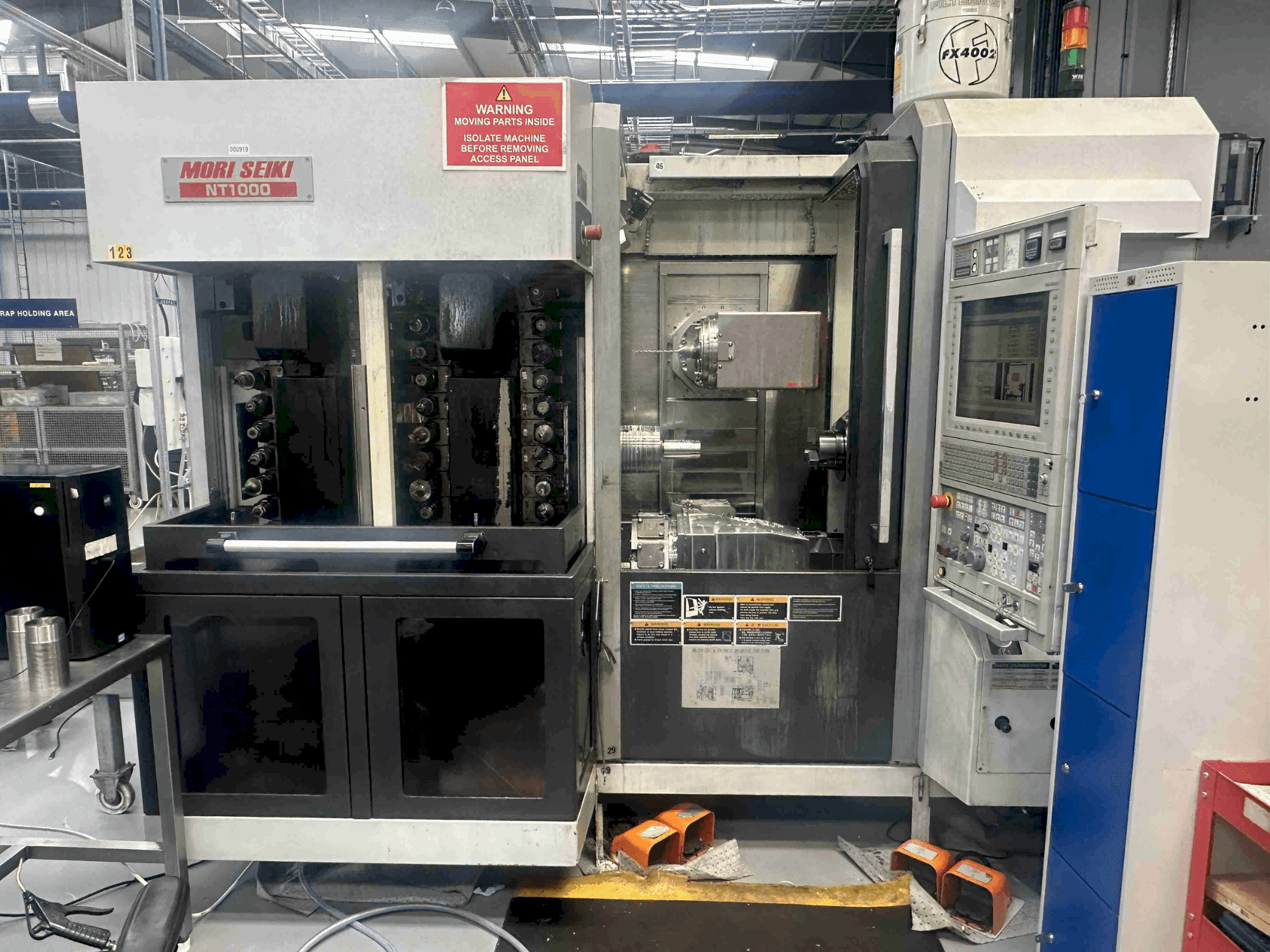

This Mill Turn Centre was manufactured in 2010. A robust Mori Seiki NT1000SZM, it features MSX-711IV control, a high-speed tool spindle at 20,000rpm, and a 76 tool ATC. It supports a max turning diameter of 370mm and length of 400mm. Additional features include a 70 Bar high-pressure coolant system and a Knoll compact filter unit. Ideal for precision machining, the Mori Seiki NT1000SZM machine we have for sale. Contact us for further details regarding this Mill Turn Centre.

Overview

brand: MORI SEIKI
year: 2010
MODEL: NT1000SZM
production hours: 16400
application type: Turning
Location: Ireland
machine type: Turn-Mill Centre
availability: Sold
control unit brand: MITSUBISHI

Technical Information - MORI SEIKI NT1000SZM

General Data

Measurements width: 2895 mm
Measurements depth: 3810 mm
Measurements height: 2670 mm
Machine weight: 8500kg

Control Unit

Model: MSX-711IV
CNC language customizable: Yes
Brand: MITSUBISHI

Main drive

Number of spindles: 3
Spindle speed range: 20000 rpm 1/MIN
Spindle motor power: 11/7.5kW

Movement

X-AXIS Movement: 380 mm
Y-AXIS Movement: 210 mm
Z-AXIS Movement: 480 mm
B-AXIS Movement: +/- 120° MM
C-AXIS Movement: 360° MM

Workpiece

Workpiece drm: 370 mm
Workpiece z: 400 mm

Turret

Number of turrets: 1

Tools

Max weight: 5kg
Max tool diameter: 130mm

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Kitagawa 5" Chuck // Kitagawa 8" Hollow Chuck
- Spindle 1 Through-Hole Spindle 73mm
- 76 Tool ATC
- Full selection of Tool Holders as seen in videos
- Swarf Conveyor // Workpiece Conveyor for Bar Feeder
- 70 Bar High Pressure Coolant System
- Air Blow for Chuck (Spindle 1) // Air Blow for Tool Tip (Tool Spindle)
- In Machine Tool Presetter for Tool Spindle and Turret 2
- Bar Feed Interface
- Tool Counter // Workpiece Counter

Additional Information

Machine history

Material type: Stainless steel
End product: Medical device components
Industries: Medical device

Machine Benefits

Technical Machine Benefits:
- - High speed tool spindle - 20,000rpm // tool spindle drive motor: 9/5. 5kw
- - Signal tower
- - Double foot switch for both spindles
- - Part program storage length (1mb) + 1000 registerable programs
- - Knoll compact filter unit
- - Double wound transformer
- - Igh-speed tool spindle (20,000rpm), high-pressure coolant system (70 bar), comprehensive tool storage capacity (76 tools), advanced control system (msx-711iv)
- - Through spindle hole diameter: 73mm
Qualitative Machine Benefits:
- - Excellent condition

Extra information

- Machine still undern power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
