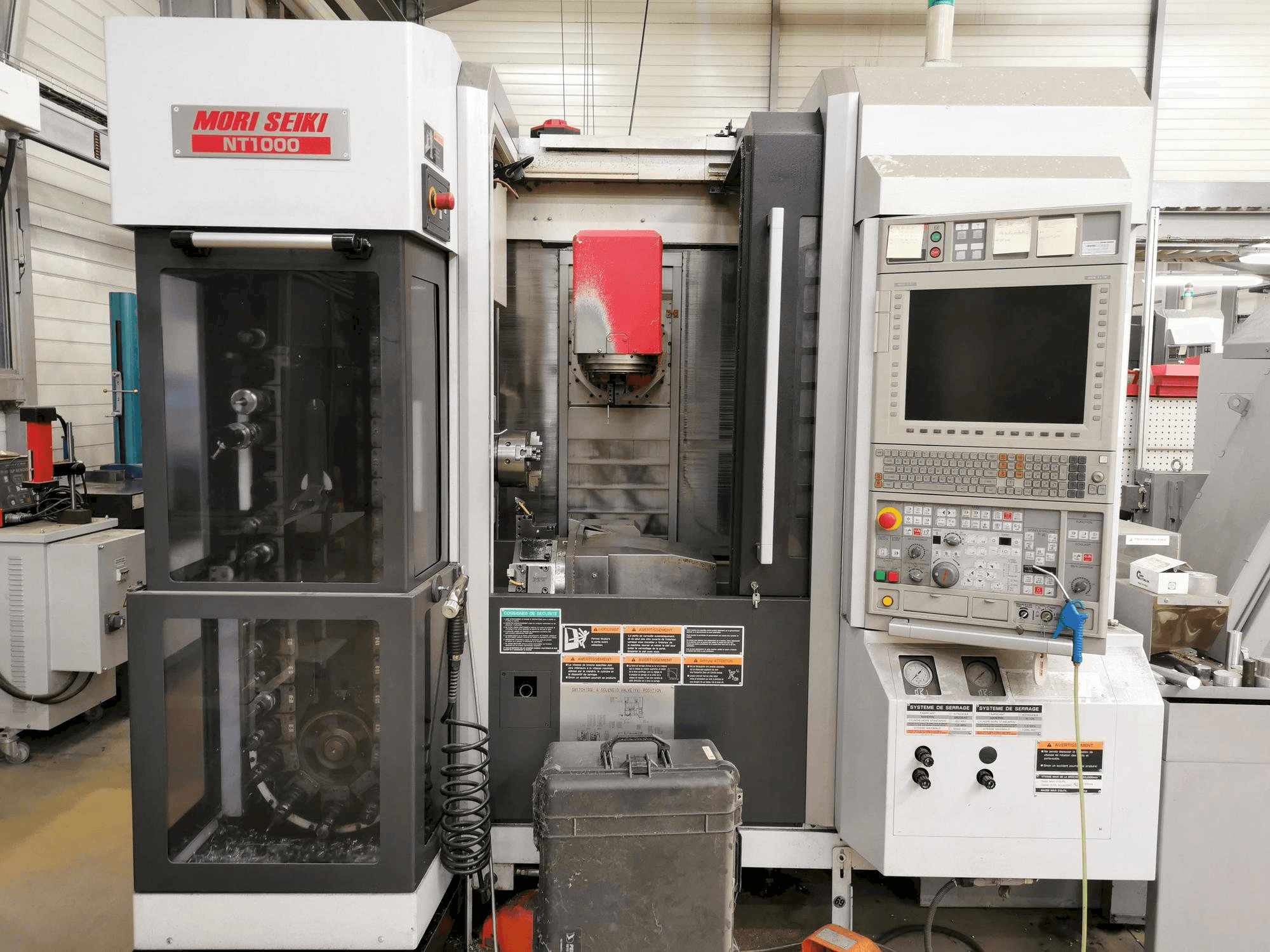

MORI SEIKI NT 1000 Lathe

Show in original language

This MORI SEIKI NT 1000 Lathe was built in Japan in the year 2010. This 7 axis machine is capable of working with the main spindle speed up to 20000 rpm, and the sub spindle speed up to 6000 rpm.

Overview

brand: MORI SEIKI
year: 2010
MODEL: NT 1000
application type: Turning
Location: France
machine type: Turn-Mill Centre
availability: Sold

Technical Information - MORI SEIKI NT 1000

General Data

Machine weight: 8700 kg

Main drive

Number of spindles: 2
Spindle speed range: 20000 1/MIN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 7 axis
- - Main spindle: axe x1 380 mm, axe y 210 mm, axe z1 460 mm, axe b ±120°
- - Broche 1/broche 2: axe c 360°
- - Turret 2: axe x2 155 mm, axe z2 610 mm
- - Fast forward speed: x1 axis 40 m / min, z1 axis 50 m / min, axe y 40 m/min
- - Max machining diameter: main spindle: 370mm, second turret: 270mm, max length turning: 424 mm, bar machining capacity: 52mm / 65mm
- - B axis indexing time (90 °): 0,49s, b axis rotation speed: 100min, minimum indexing increment: 0,0001º
- - Sub spindle: 6000 rpm
- - Coolant system, high-pressure (635 w/1040 w)
- - Capto c5
Qualitative Machine Benefits:
- - Prepared interface for barfeeder
- - 38 tool capacity
- - Chip conveyor : hinge

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
