MORI SEIKI - MT2000 SZIT-TUR-MOR-2004-00002

Name: MORI SEIKI MT2000 SZ
Brand: MORI SEIKI
SKU: IT-TUR-MOR-2004-00002
Price: 5775150 INR
Availability: InStock

Rs. 5,775,150

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mori Seiki MT2000 SZ Lathe

Show in original language

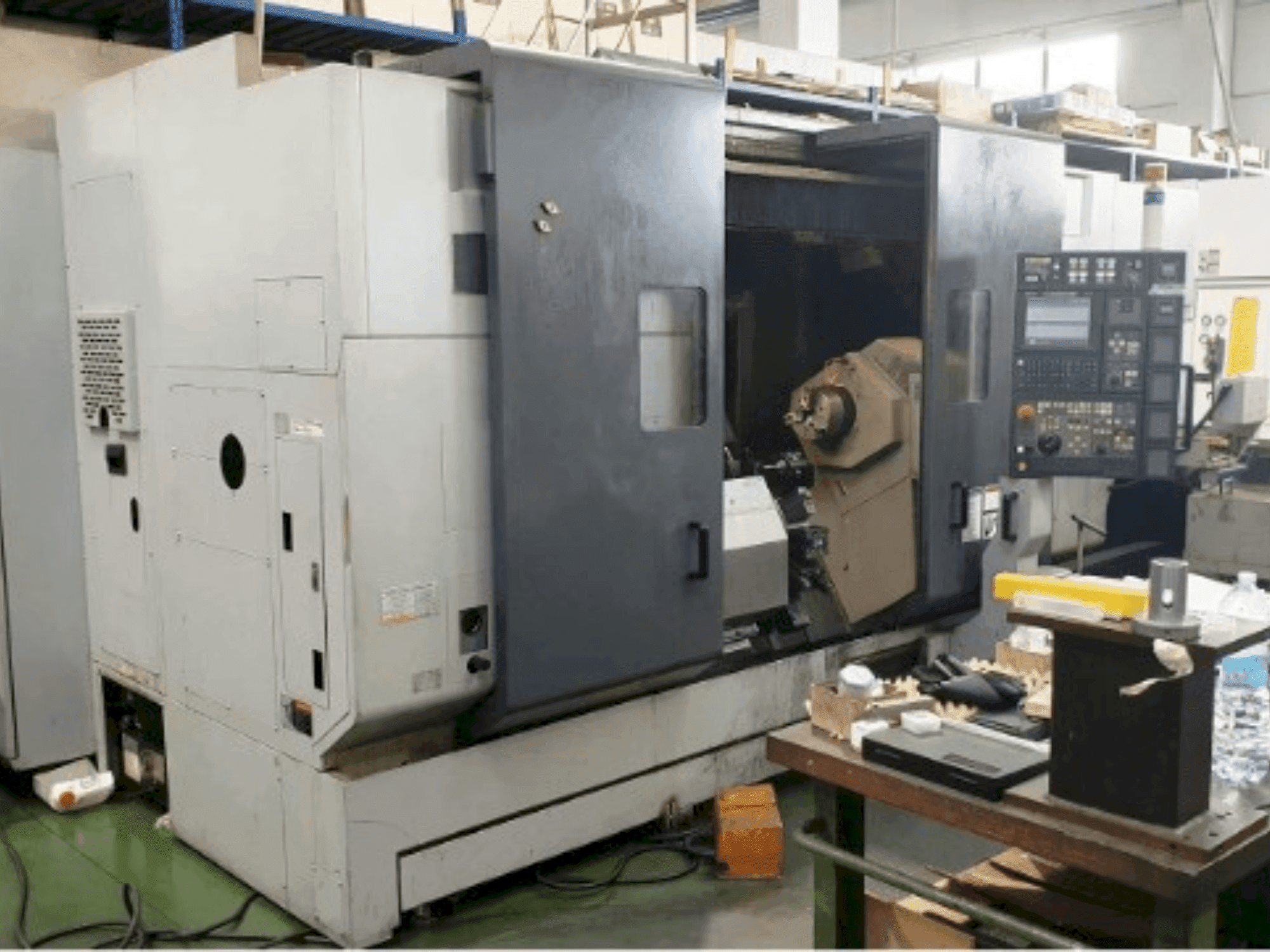

This Mori Seiki MT2000 SZ Lathe was manufactured in 2004 in Japan. It operates with a FANUC Control unit, a spindle speed of 6000 rpm, 2 turrets, and 4 axes (X/Y/Z/B). The spindle bar diameter is 65 mm and the turning diameter is 550 mm. This turning machine can handle a max. turning length of 1020 mm. It comes with a chip conveyor, high pressure pump, and a set of tools (see photo gallery). It is in good condition.

Overview

brand: MORI SEIKI
year: 2004
MODEL: MT2000 SZ
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
availability: Immediately
control unit brand: FANUC

Technical Information - MORI SEIKI MT2000 SZ

General Data

Measurements width: 3800 mm
Measurements depth: 2100 mm
Measurements height: 2565 mm

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 6000 rpm 1/MIN
Spindle motor power: 15-22 kW
Number of axis: 4

Movement

X-AXIS Movement: 565 mm
Y-AXIS Movement: +/- 80 mm
Z-AXIS Movement: 1077 mm
B-AXIS Movement: +/- 120°, 0.001° MM

Turret

Number of turrets: 2
Number of tool slots: 12 x 2
Rotating tools: Yes
Tool taper: CAPTO C6

Additional equipment

- Chip conveyor
- High pressure pump
- Various tools (see photo gallery)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle: noise: a2-6” // speed - main spindle: 6,000 , sub-spindle 4,500 rpm // power: 22-15 kw (main spindle), 15 kw (sub-spindle)
- - Milling head: speed: 10,000 rpm // power: 7. 5 kw
- - Driven tools: 12 x 2 // capacity: 60 // speed 6,000 rpm
- - X travel: 565 mm, y travel: +/- 80 mm, z travel: 1077 mm, b axis: +/- 120° / 0,001°
- - Spindle bar Ø: 65 mm // turning diameter: 550 mm // max turning length: 1020 mm
Qualitative Machine Benefits:
- - Good condition

Extra information

- Machine under power, can be inspected at any time

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
