- MORI SEIKI M-300L2 Milling Machine

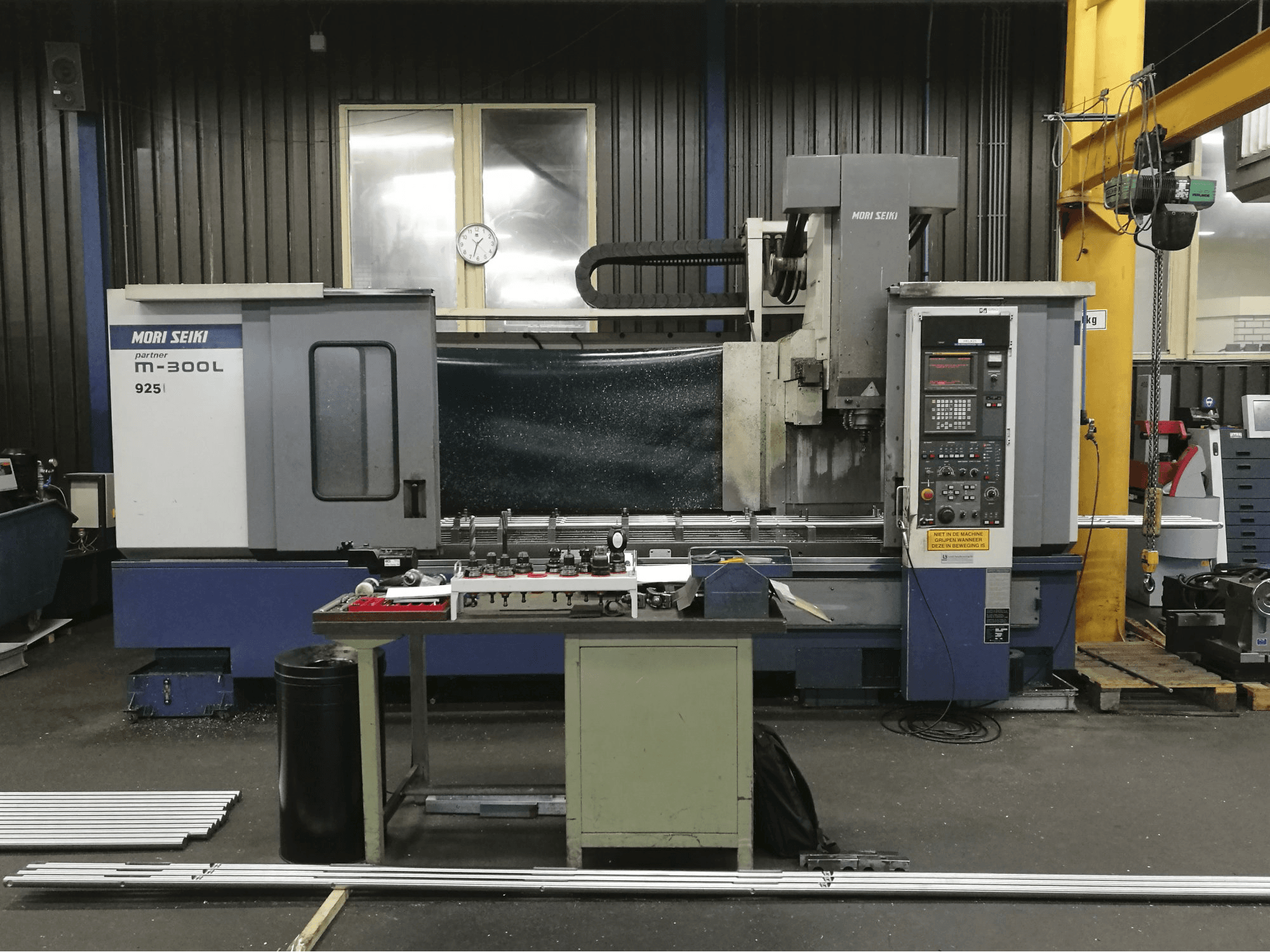

This MORI SEIKI M-300L2 Milling Machine was manufactured in 1992 in Japan and has a working record of 13884 production hours ever since. Operated through a FANUC MF-M6 Control unit, the machine comes with a 13x tool holder, a chip conveyer and a power transformer as additional equipment. In the past, this MORI SEIKI has worked mainly with steel and aluminium producing pipes. The model incorporates a cooling-through tool and allows the separation of the working table in two parts, according to machining tasks requirements. It is to point out that the tool holder needs to be revised: ocasionally it could drop the attached tool. Nonetheless, the machine is fully operative.
Overview
- brand: MORI SEIKI
- year: 1992
- MODEL: M-300L2
- production hours: 13884
- application type: Milling
- Location: Netherlands
- machine type: Horizontal Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - MORI SEIKI M-300L2
General Data
- Measurements width: 5000 mm
- Measurements depth: 3035 mm
- Measurements height: 2750 mm
- Machine weight: 12000 kg
Control Unit
- Model: MF-M6
- Brand: FANUC
Main drive
- Number of spindles: 1
- Spindle speed range: 6000 1/min
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 500 mm
- Z-AXIS Movement: 470 mm
Workpiece
- Workpiece drm: 3000 mm
- Workpiece x: 3000 mm
- Workpiece y: 500 mm
- Workpiece z: 470 mm
- Workpiece weight: 2x 700 kg
Table
- Outer length: 3300 mm
- Outer width: 540 mm
Tools
- Max weight: 8 kg
- Max tool diameter: 80 (125) mm
- Max tool length: 250 mm
Media
- Main electronic connection: 380 V
- Power consumption: 25.6 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
Additional equipment
- - 13x Tool holder
- - Chip conveyer
- - Power transformer
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
