MORARA Heavy Quick I/E 1000 CNC Grinding machine

Show in original language

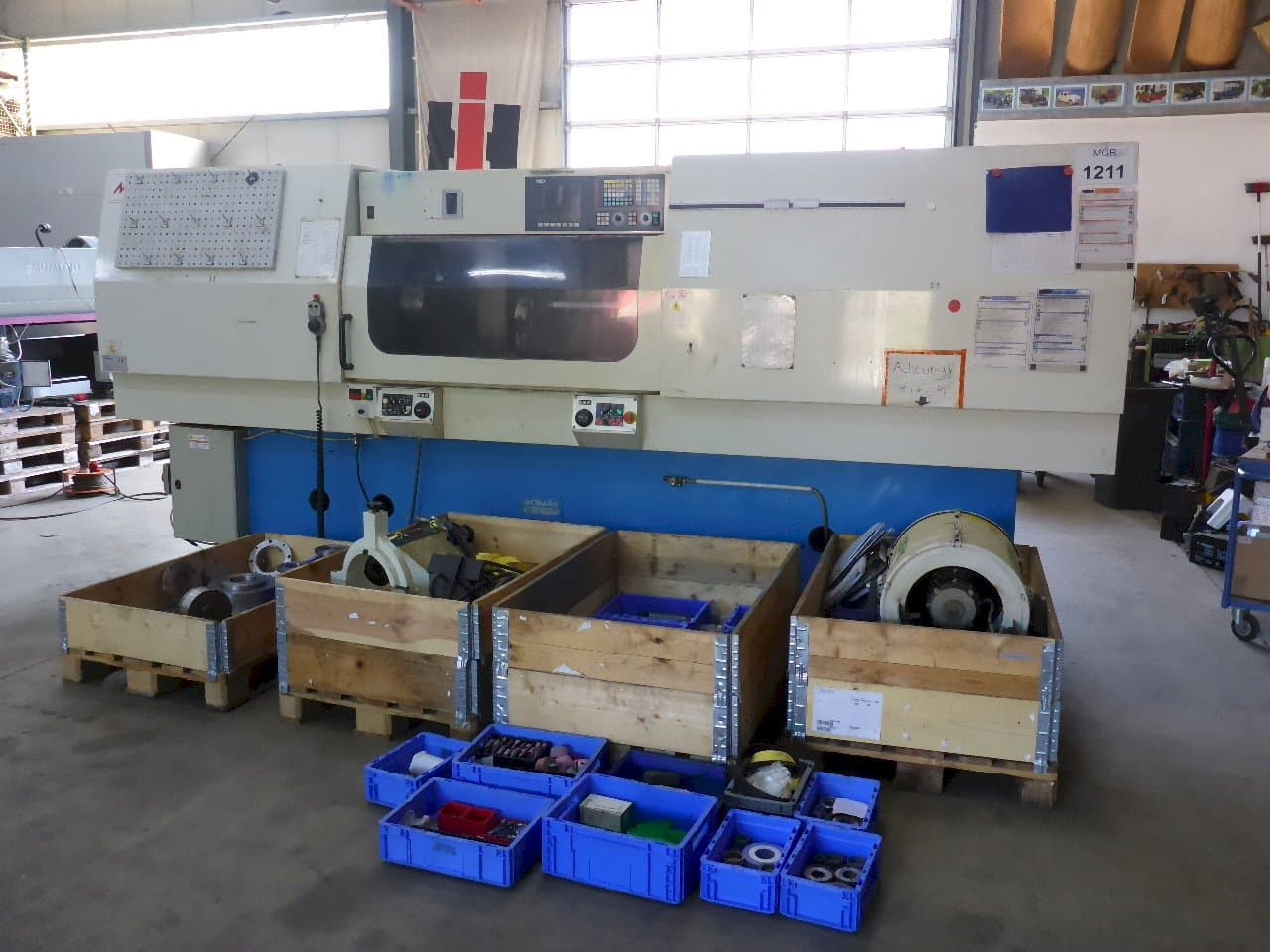

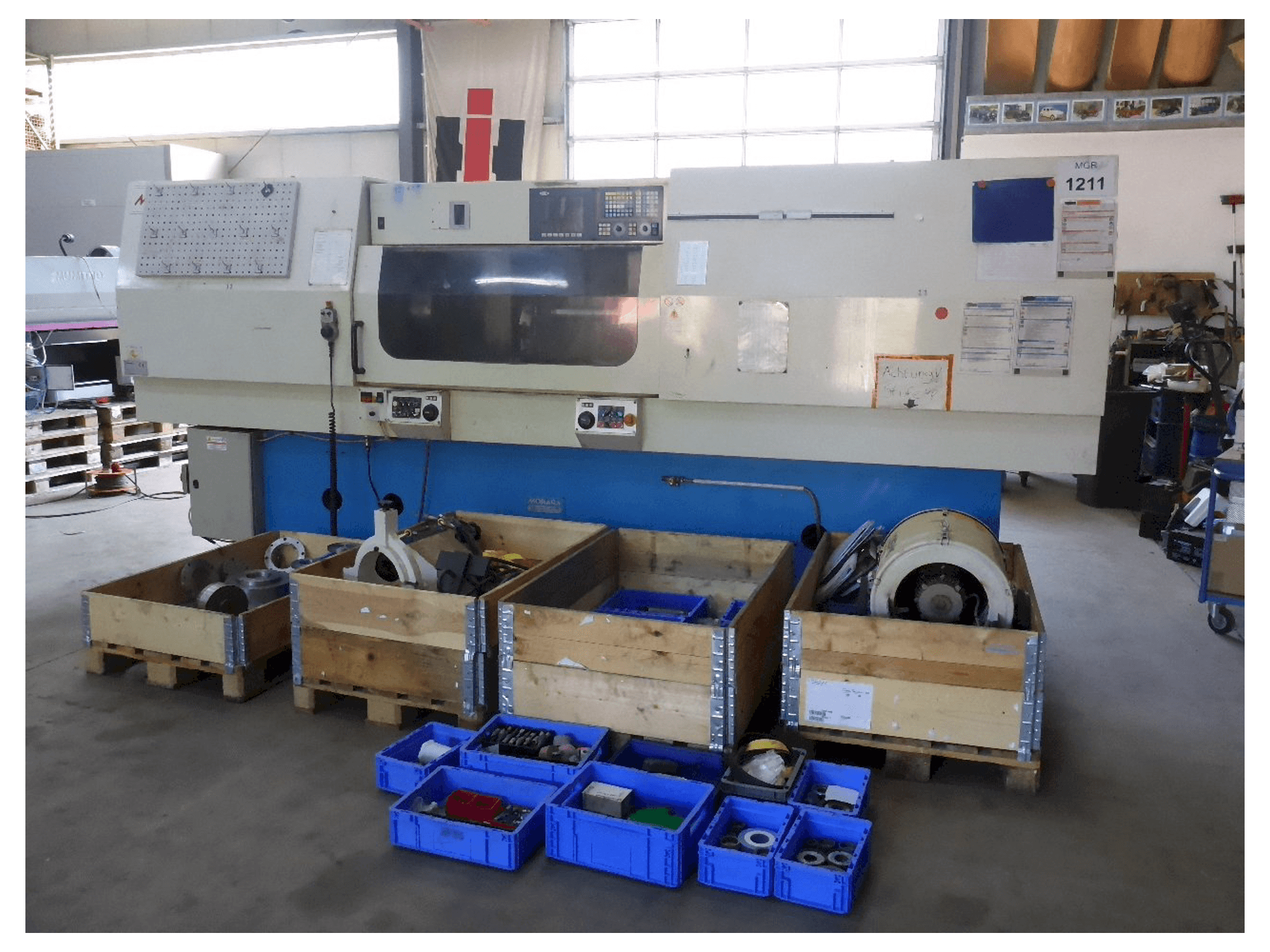

This MORARA Heavy Quick I/E 1000 CNC Grinding machine was manufactured in the year 2004 in Italy. It is equipped with a FAGOR 8055 TCO Digital control unit and has 2 axis. The machine has a maximum grinding length of 1000 mm.

Overview

brand: MORARA
year: 2004
MODEL: Heavy Quick I/E 1000 CNC
application type: Grinding
Location: Germany
machine type: Cylindrical Grinding Machine
availability: Sold
control unit brand: FAGOR

Technical Information - MORARA Heavy Quick I/E 1000 CNC

General Data

Measurements width: 6000 mm
Measurements depth: 3500 mm
Machine weight: 9000 kg

Control Unit

Model: 8055 TCO Digital
Brand: FAGOR

Main drive

Number of axis: 2

Movement

X-AXIS Movement: 330 mm
Z-AXIS Movement: 1400 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Center distance 1030 mm.
- - Maximum grinding length 1000 mm
- - Maximum grindable outer diameter 600 mm.
- - Maximum grinding inner diameter 400 mm.
- - Maximum weight between centers 700 kg.
- - Outer grinding wheel stock: spindle type - on precision ball bearing.
- - Wheel (diameter, width, bore) 508x80x203. 2mm.
- - Peripheral speed of the wheel m/s 45.
- - Power of disk motor kw 7,5.
- - Orientation - motorized.
Qualitative Machine Benefits:
- - Largest adjustment angle 200 degrees, smallest angle pitch 1. 5 degrees, locking/release - hydraulic, resolution 0. 001 degree.
- - Internal grinding headstock: spindle type - standard belt drive. Outside diameter of the spindle max 100mm.
- - Control - digital encoder. Ball screw 40x5mm, control - digital encoder. Ball screw 50x5mm. Upper table adjustment 0 to 4 degrees.
- - Workpiece headstock: internal taper mk6.
- - Centering cone outside asa 11. Clearance diameter 30mm.
- - Rotation on the base 15 degrees.
- - Spindle torque 180 nm.
- - Tailstock: mounting taper mk5. Spindle diameter 80mm. Opening stroke 70mm. Cylindrical correction +/- 0. 10mm.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
