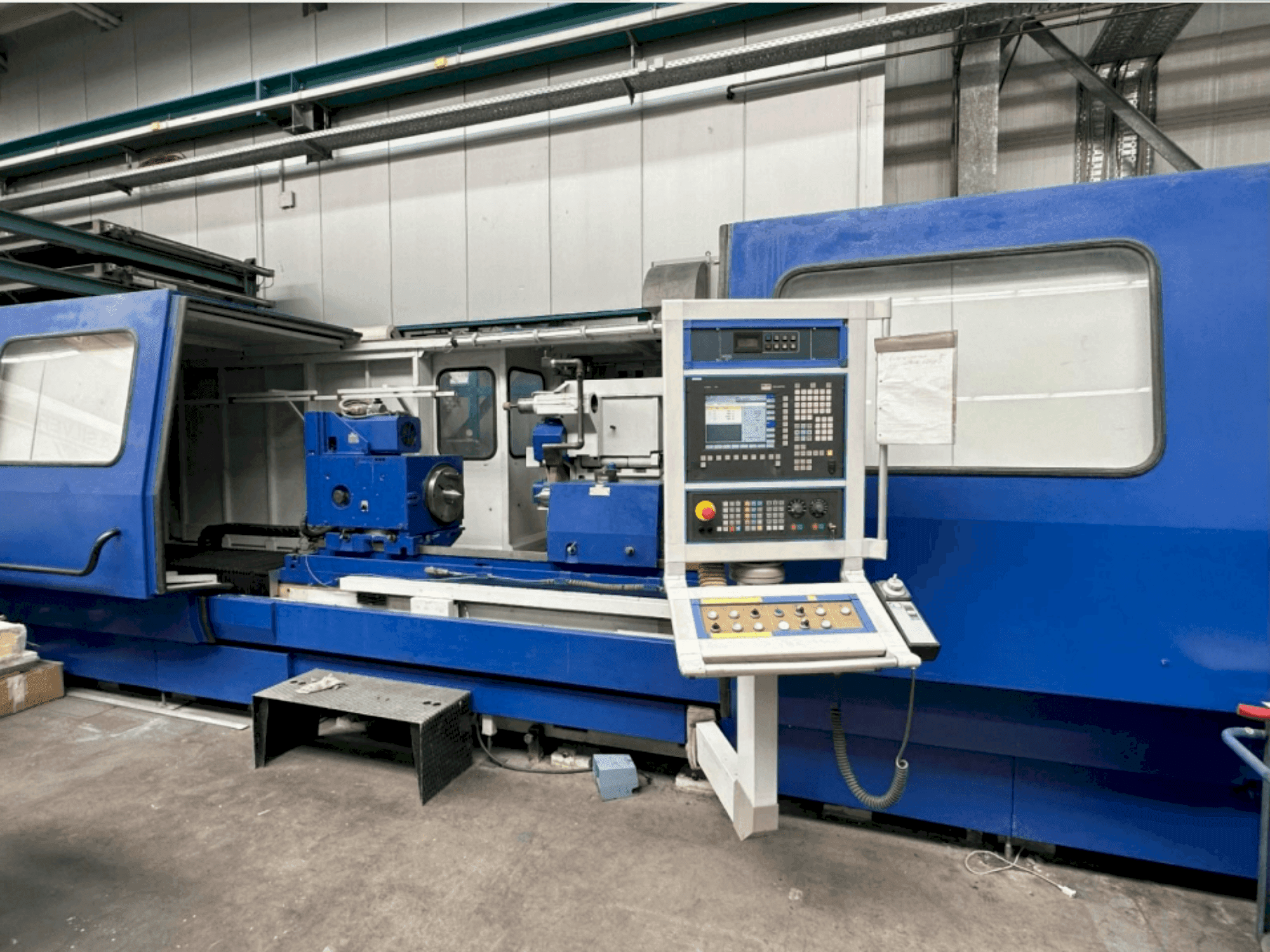

Cetos - BUC 63C CNC/2000DE-GRI-CET-2003-00001

Additional equipment

• - Equipped with an electrical quill travel of 80 mm (overhauled)
• - Grinding Spindle: Overhauled
• - Grinding Wheel Handling: Broad grinding wheel support, manual steadies, wheel-changing facility with a grinding wheel stand
• - Resy coolant management system
• - Automatic and manual steadies included
• - The machine has been mechanically overhauled
• - The bed and grinding spindle are in refurbished condition

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Center distance: 2000 mm
  • - Swing diameter: 630 mm
  • - Maximum workpiece weight: 4000 kg
  • - Workpiece drm: 630 mm / workpiece x: 2000 mm
  • - Power supply: 3x400v, 50hz / control voltage: 230v ac, 24v dc / total power consumption: 65/80 kva / machine bed material: cast iron (gray iron)
  • - Tailstock equipped with electrical quill travel and adjustable clamping force / grinding spindle swivel range: +30° to -10° / automatic infeed range: 0. 0005 mm to 380 mm / rapid traverse speed: 10,000 mm/min / pneumatics: working air pressure: 0. 5 mpa, air consumption: 800 l/min / lubrication: grinding spindle lubrication and guideways and infeed mechanisms lubrication
• Qualitative Machine Benefits:
  • - Technical machine benefits: mechanically overhauled, broad grinding wheel support
  • - Qualitative machine benefits: overhauled components including tailstock with electric quill stroke, spindle head, grinding spindle, and machine bed
