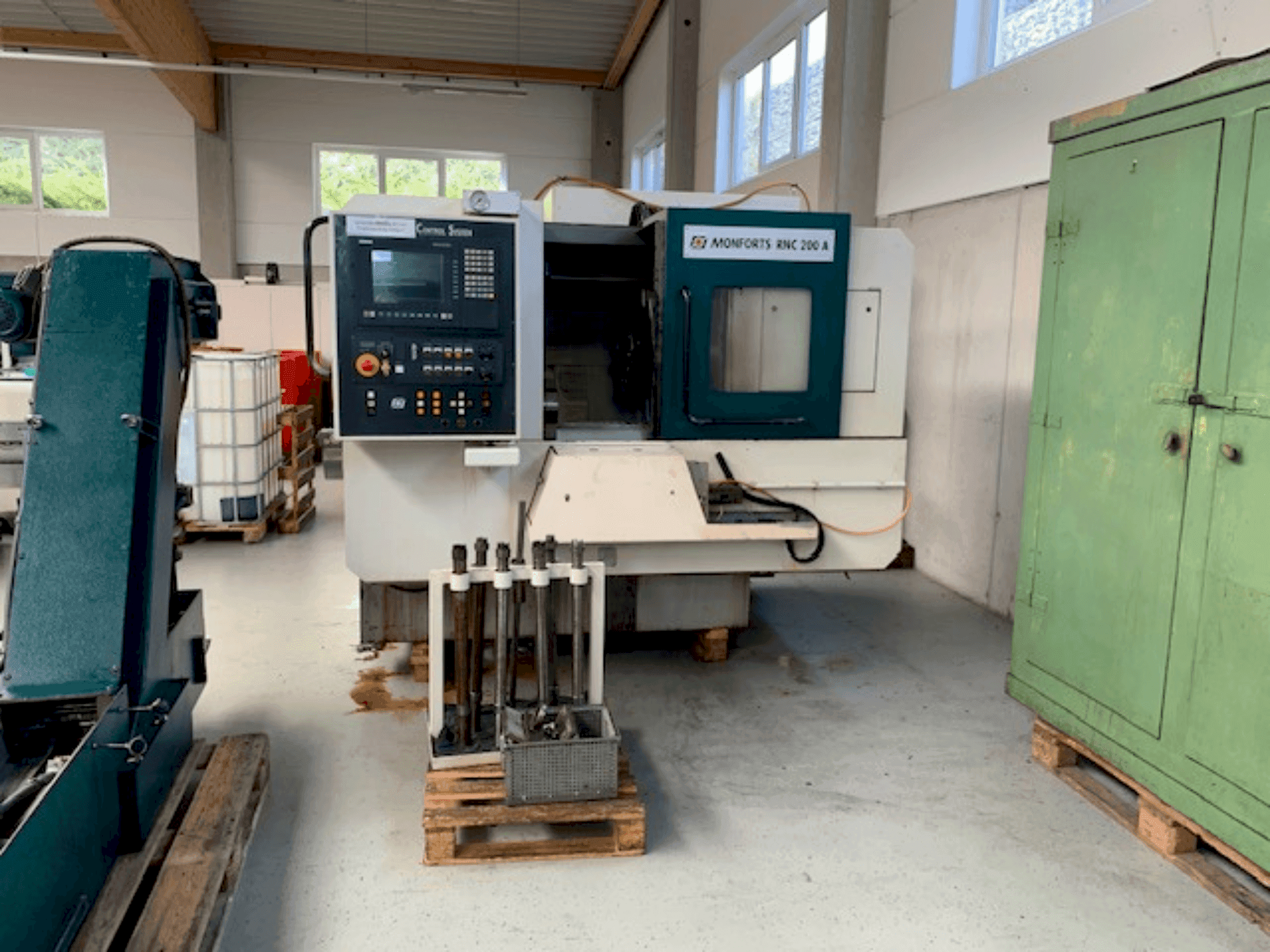

This MONFORTS RNC 200A lathe was manufactured in 2000. It features a maximum orbital diameter of 300mm and a turning length of 250mm. The main spindle supports a speed range of 50-6000 rpm, with a material passage of 42mm. Equipped with 12 driven stations and rapid traverse rates of 24m/min on the X/Z-axis, this machine ensures efficient and precise turning operations. The MONFORTS RNC 200A machine we have for sale is ready to meet your production needs. Delivery scope does not include a bar feeder. Contact us for more information.
Overview
- brand: Monforts
- year: 2000
- MODEL: RNC 200A
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- availability: Sold
Technical Information - Monforts RNC 200A
General Data
- Measurements width: 2320 MM
- Measurements depth: 2270 MM
- Measurements height: 1750 MM
- Machine weight: 3500 KG
Main drive
- Number of spindles: 1
- Spindle speed range: 50 - 6000 1/MIN
- Number of axis: 2
Movement
- X-AXIS Movement: 175 mm
- X-AXIS Feed Force: 3.6 kN
- X-AXIS Rapid traverse: 24 m/miin
- Z-AXIS Movement: 300 mm
- Z-AXIS Feed Force: 3.6 kN
- Z-AXIS Rapid traverse: 24 m/miin
Workpiece
- Workpiece drm over bed: 300 mm
- Workpiece drm over support: 190 mm
Media
- Chip conveyor: Yes
Additional equipment
- - Tailstock with quill diameter 70mm and max quill force 8.8 kN
- - The following tools are still available: Hainbuch Spanntop without collets, without tools, Chip conveyor, Spindle insert tubes for the following material diameters: 16/21/25/27/30/34/36 and 41.
Additional Information
- Technical Machine Benefits:
- - Turning length: 250mm
- - Coolant volume: 130 liters
- - High-speed and precision turning capabilities with advanced spindle and rapid traverse features.
- Qualitative Machine Benefits:
- - Robust construction and reliable performance for high-quality turning operations.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
