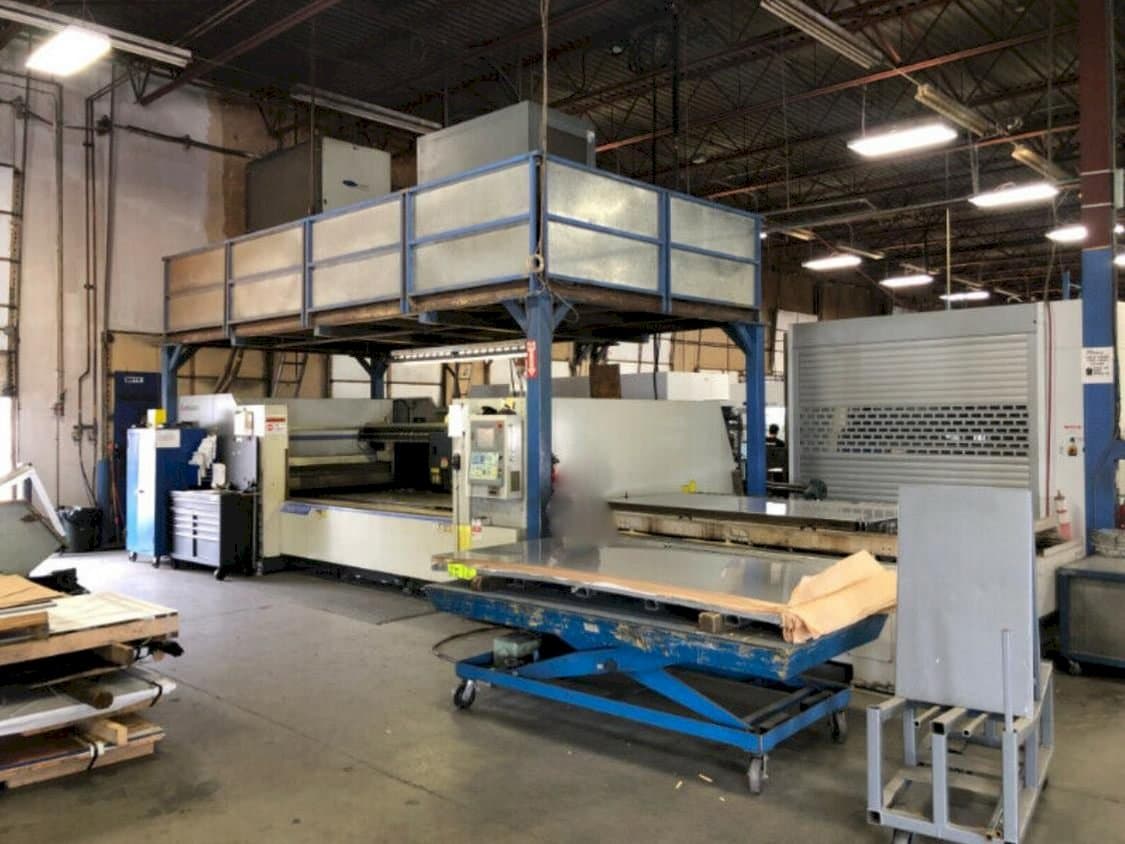

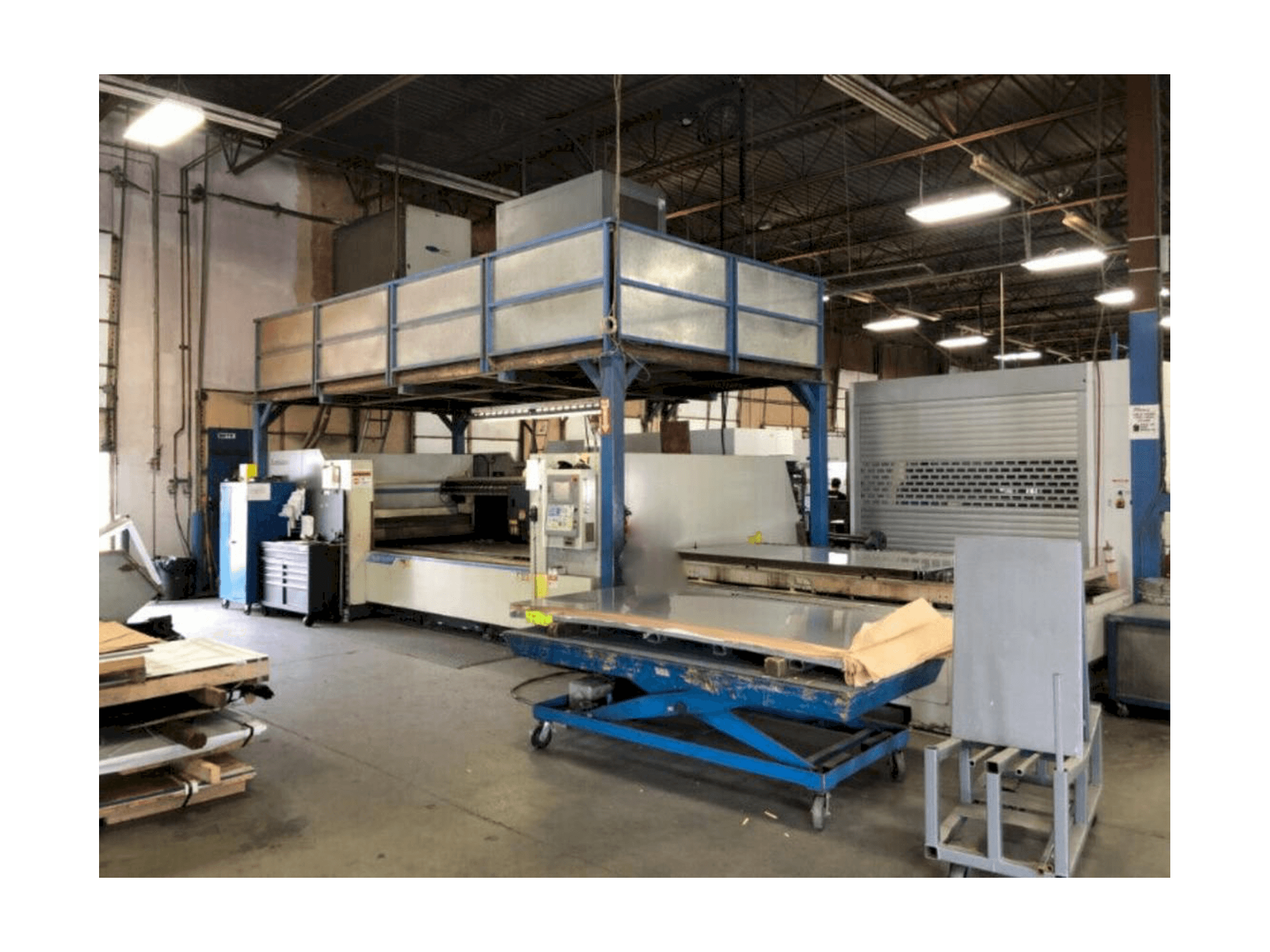

Mitsubishi ML3015LVP PLUS 40CFX-A Laser Cutting Machine

Show in original language

This Mitsubishi ML3015LVP PLUS 40CFX-A Laser Cutting Machine was built in the year 2006. This machine incorporates a laser power of 4 kW and can cut steel sheets of a size of 1524x3048 mm.

Overview

brand: Mitsubishi
year: 2006
MODEL: ML3015LVP PLUS 40CFX-A
application type: Cutting
Location: Canada
machine type: CO2 Laser Cutting Machine
availability: Sold

Technical Information - Mitsubishi ML3015LVP PLUS 40CFX-A

General Data

Measurements width: 11690 mm
Measurements depth: 5695 mm
Machine weight: 12400 kg

Main drive

Laserpower: 4 kW
Laser type: CO2

Movement

X-AXIS Movement: 3101 mm
Y-AXIS Movement: 1550 mm
Z-AXIS Movement: 90 mm

Workpiece

Workpiece weight: 930 kg

Table

Outer length: 1524 MM
Outer width: 3048 mm

Additional equipment

- Chiller

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Workpiece size: 3050 x 1525 mm
- - Processing access auto up/down style front door
- - Max. Processing feedrate: 29972 mm
- - Machine structure fixed table / flying optic
- - Automatic heavy-duty pallet changer
- - Programmable gas assist w/ high pressure bypass system
- - Closed loop air cooler
- - Mitsubishi phx cutting head
- - Beam optimizer
- - Multifunction visible alignment laser
Qualitative Machine Benefits:
- - Drive motor type intelligent ac servo
- - Pallet changer: change time approx. 25 sec
- - Drive mechanism chain
- - Excitation method 3-axis cross flow, sd
- - Control method power feedback
- - Power stability plus/minus 1 percent
- - Beam mode low-order
- - Consumption amount 3 liter/hour
- - High-speed capacitance height sensor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
