MicroStep PLS 12001.30 P Plasma Cutting Machine

Show in original language

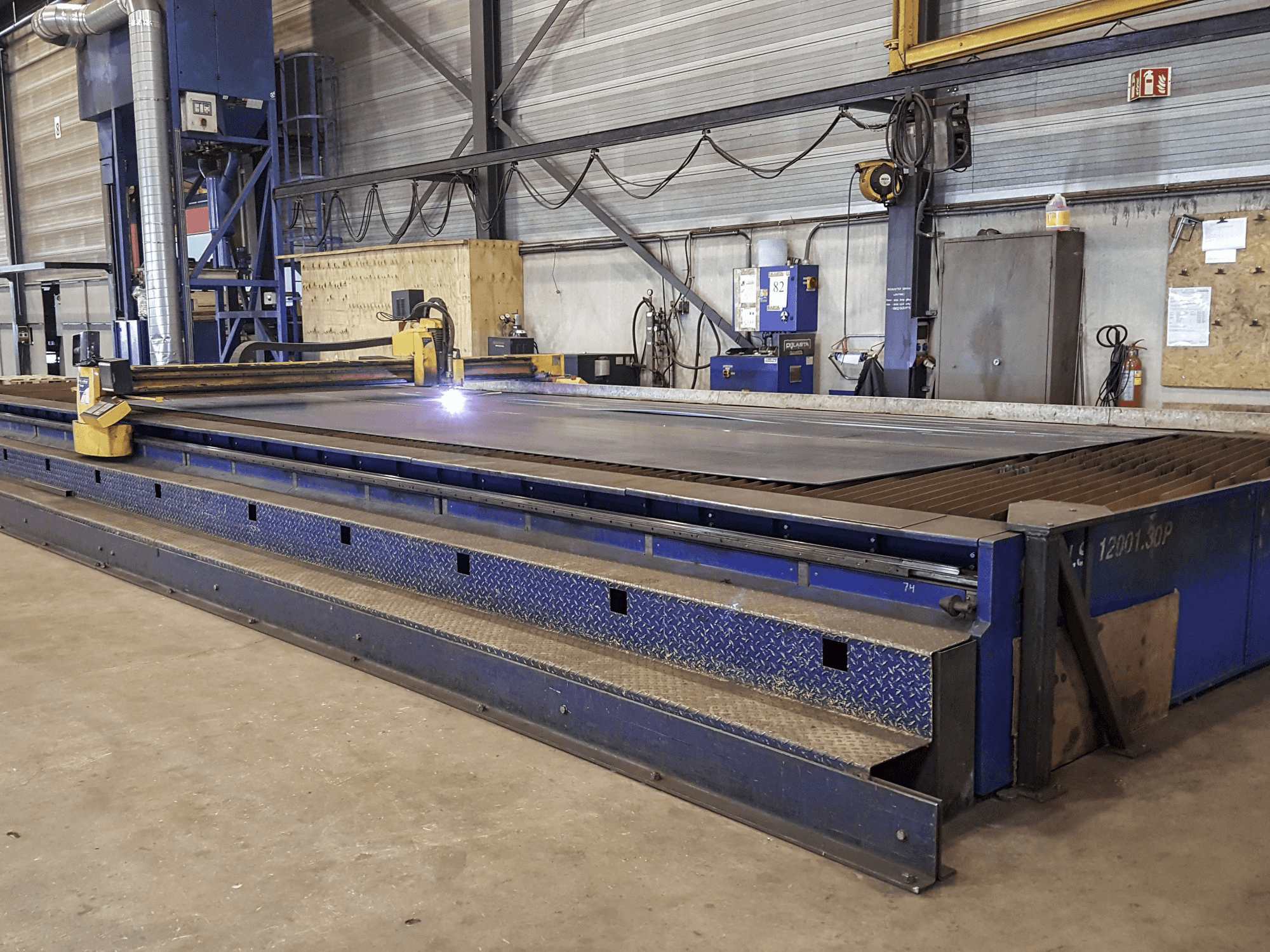

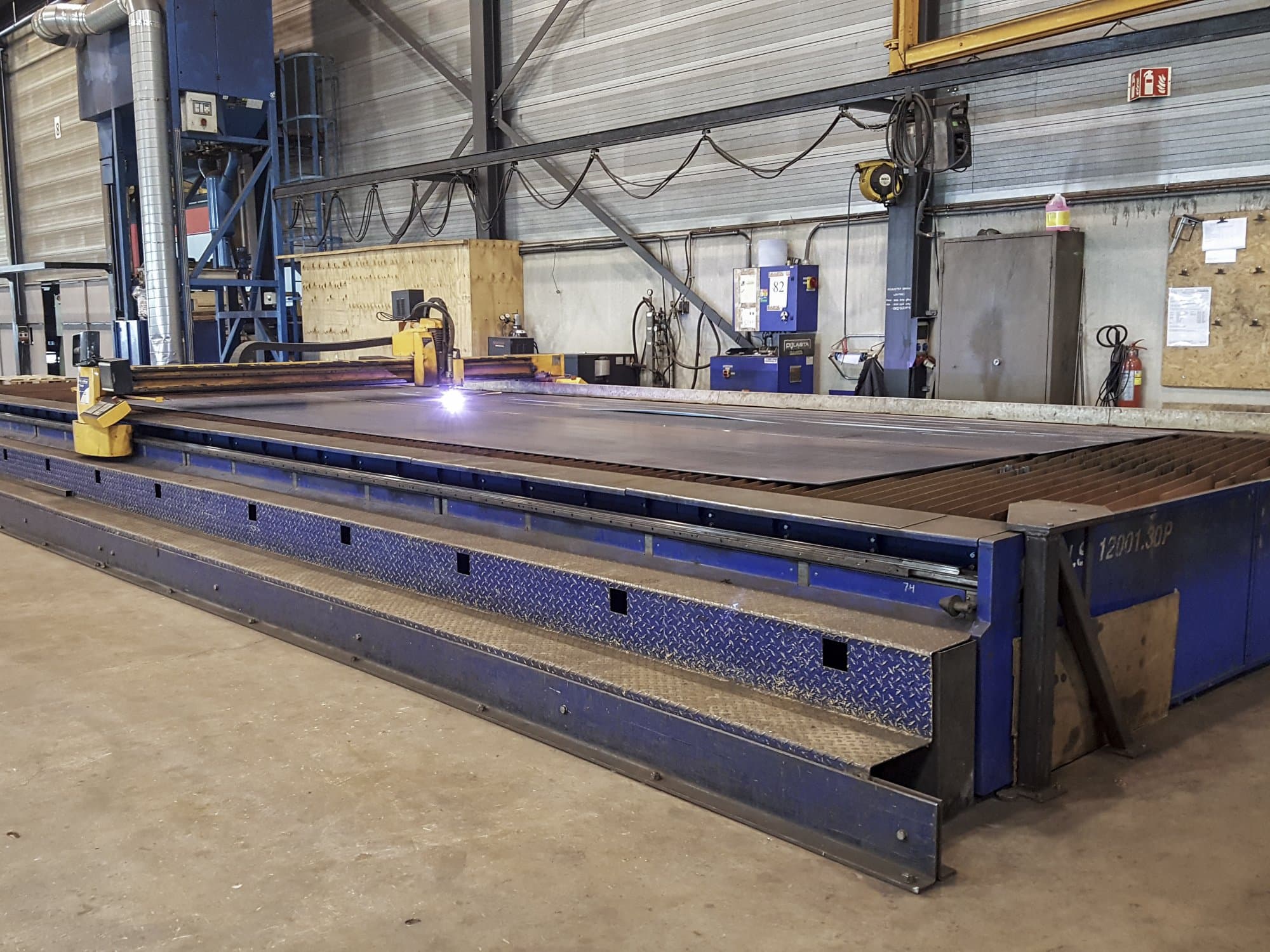

This MicroStep PLS 12001.30 P Plasma Cutting Machine was manufactured in the Netherlands in 2006 and has a working record of 27623 production hours. This model is operated through a MicroStep MSN500 Control unit and was regularly maintained by an official MicroStep dealer. Due to its high precision linear guidelines this machine allows a very fast and precise movement completed by an upgraded Hypertherm HyPerformance HPR260XD plasma system. The proper fuse box with main switch protects the machine from electrical damage. During the past, this system mainly processed steel sheets up to 50 mm of thickness.

Overview

brand: MicroStep
year: 2006
MODEL: PLS 12001.30 P
production hours: 27623
application type: Cutting
Location: Netherlands
machine type: Plasma Cutting Machine
availability: Sold
control unit brand: MicroStep

Technical Information - MicroStep PLS 12001.30 P

General Data

Measurements width: 4554 mm
Measurements depth: 14100 mm
Measurements height: 1800 mm

Control Unit

Brand: MicroStep
Model: MSN500

Movement

X-AXIS Movement: 12000 mm
Y-AXIS Movement: 3000 mm
Z-AXIS Movement: 50 mm

Workpiece

Workpiece x: 12800 mm
Workpiece y: 3000 mm
Workpiece z: 50 mm

Max Material thickness

Steel: 40 mm
Stainless steel: 35 mm
Aluminum: 35 mm

Media

Main electronic connection: 380 V
Power consumption: 70 kVA

Additional equipment

- HyPerformance HPR260XD plasma system
- Fuse box with main switch

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
