MicroStep - HS 3001.15LT-PLA-MIC-2003-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- MicroStep HS 3001.15 Plasma Cutting Machine

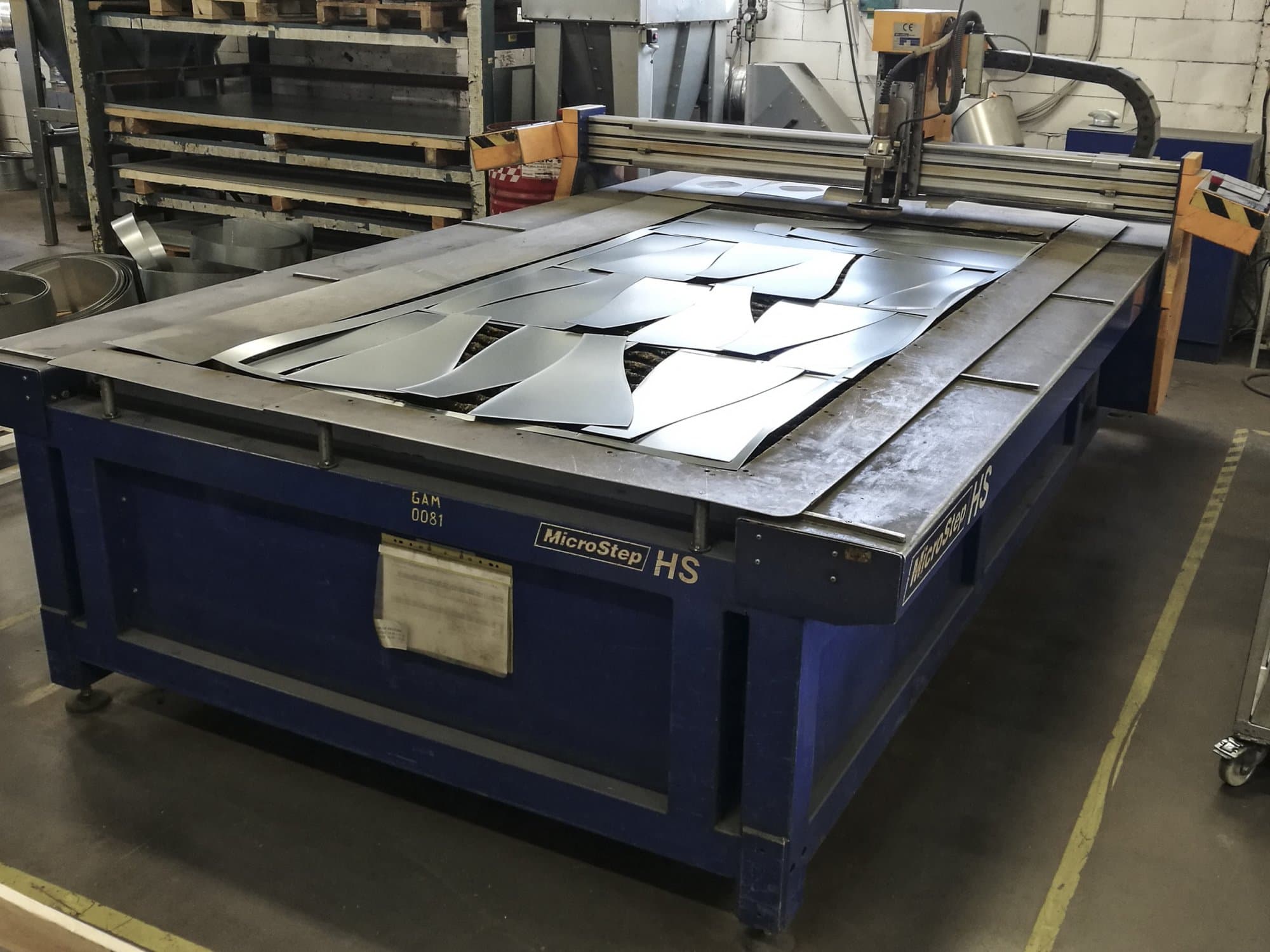

This MicroStep HS 3001.15 Plasma Cutting Machine was manufactured in 2003 in Slovakia and has a working record of 13242 production hours. This machine is equipped with a MicroStep MSNC RO2 Control unit and has mainly worked over galvanized steel during the past. An additional air filter system is included, drawing off noxious emissions during production.
Overview
- brand: MicroStep
- year: 2003
- MODEL: HS 3001.15
- production hours: 13242
- application type: Cutting
- Location: Lithuania
- machine type: Plasma Cutting Machine
- availability: Sold
- control unit brand: MicroStep
Technical Information - MicroStep HS 3001.15
General Data
- Measurements width: 2912 mm
- Measurements depth: 3900 mm
- Measurements height: 1600 mm
- Machine weight: 2500 kg
Control Unit
- Brand: MicroStep
- Model: MSNC RO2
Movement
- X-AXIS Movement: 3100 mm
- Y-AXIS Movement: 1530 mm
- Z-AXIS Movement: 200 mm
Workpiece
- Workpiece x: 3000 mm
- Workpiece y: 1500 mm
Media
- Main electronic connection: 230 V / 50 Hz
- Power consumption: 2.2 kVA
Additional equipment
- - Air filter system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
