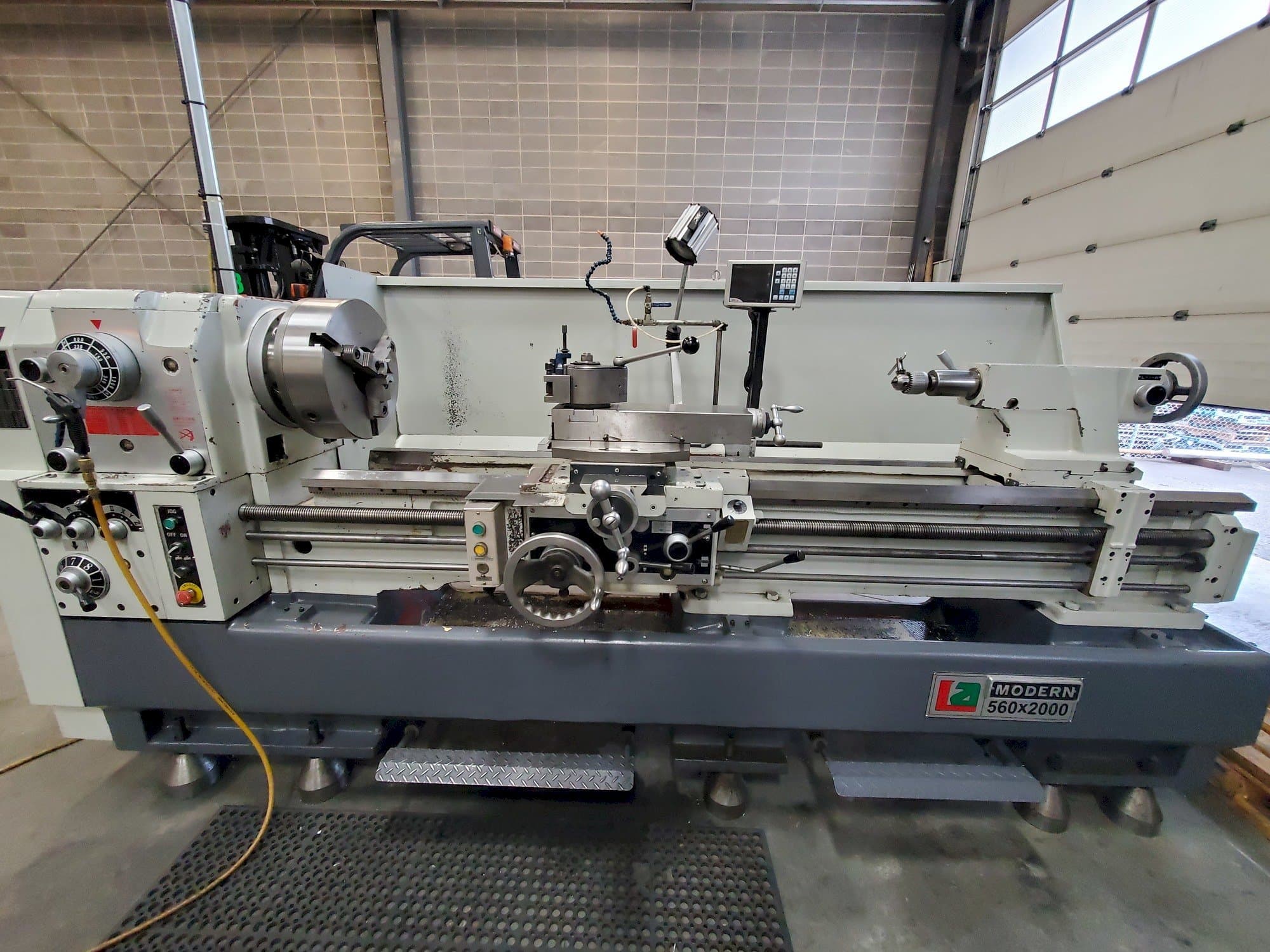

MICROCUT Modern 560X2000 Lathe

Show in original language

This MICROCUT Modern 560X2000 Lathe was manufactured in the year 2012. This machine operates with a spindle speed range of 8 -800 rpm.

Overview

brand: MICROCUT
year: 2012
MODEL: Modern 560X2000
application type: Turning
Location: Canada
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - MICROCUT Modern 560X2000

Main drive

Number of spindles: 12
Spindle speed range: 8 - 800 1/MIN
Spindle motor power: 15HP/208V / 3PH

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bed width: – 15-3/4″
- - Total travel of top slide: – 7-1/2″
- - Swing over bed: – 22″
- - Swing over cross slide: – 13″
- - Swing in gap: – 30-7/8″
- - Gap width in front of face plate: – 10-5/8″
- - Height of centers from leg bottom: – 42″
- - Distance between centers: – 80″
- - Spindle bore: – 4-1/16″
- - Type of spindle nose: – d1-11
Qualitative Machine Benefits:
- - Center sleeve
- - Dead center
- - Levelling screws
- - Service kit
- - Steady rest
- - Drive plate
- - Coolant
- - Follow rest
- - Halogen lamp
- - Taper attachment

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
