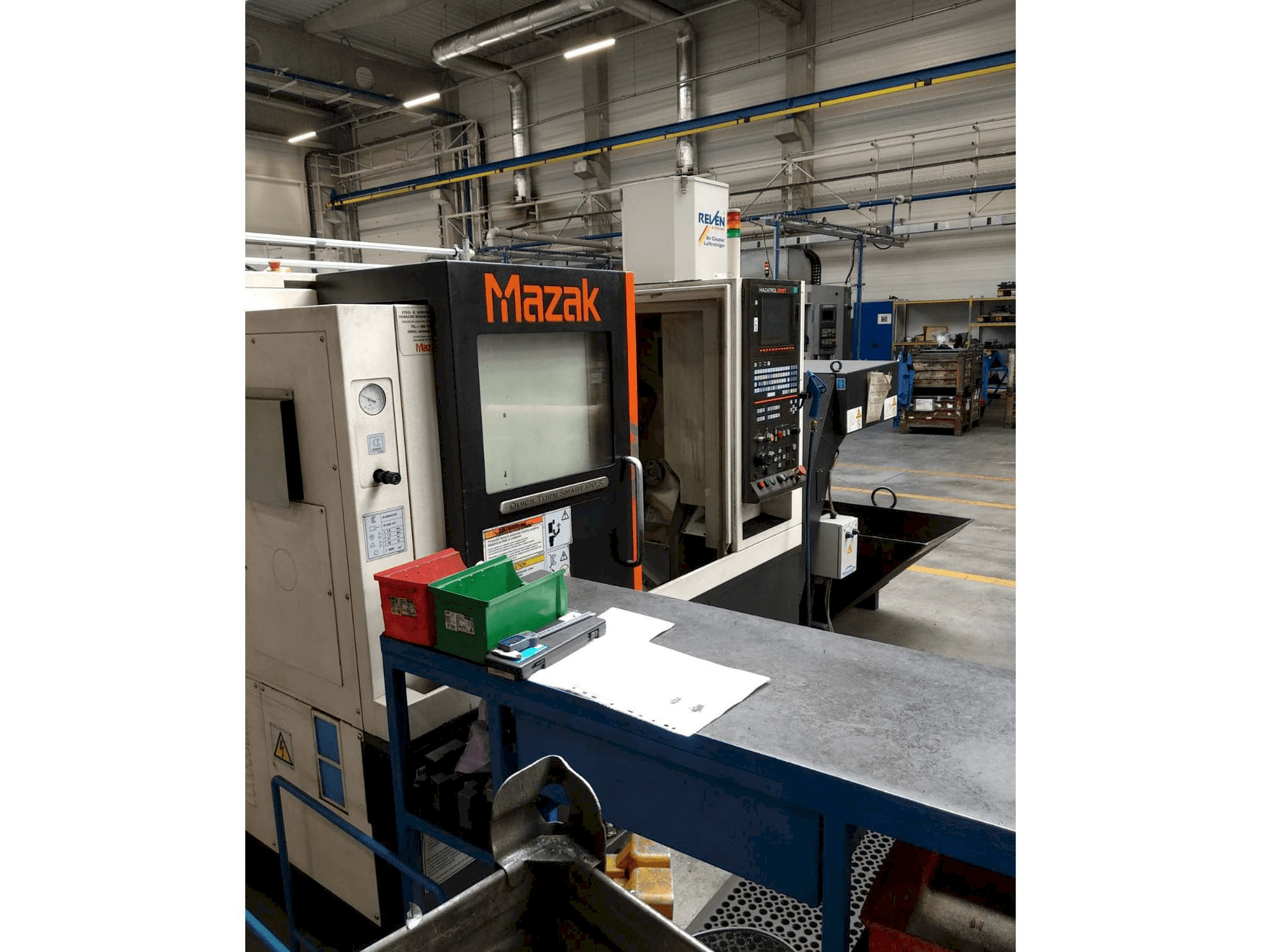

This Mazak Quick Turn Smart 100 S lathe was manufactured in the year 2014 in Singapore. This 2 axis machine has a record of 28759 production hours. It is equipped with a MAZATROL smart control unit. This machine can work with a spindle speed up to 6000 rpm and a bar work capacity 52 mm. It is in very good conditions.
Overview
- brand: Mazak
- year: 2014
- MODEL: Quick Turn Smart 100 S
- production hours: 28759
- application type: Turning
- Location: Czech Republic
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: MAZATROL
Technical Information - Mazak Quick Turn Smart 100 S
General Data
- Measurements width: 1700 MM
- Measurements depth: 1630 MM
- Measurements height: 1800 MM
- Machine weight: 3500 KG
Control Unit
- Model: smart
- Brand: MAZATROL
Main drive
- Number of spindles: 1
- Spindle speed range: 6000 1/MIN
- Spindle motor power: (30min/100%) 11/7.5 kW
- Number of axis: 2
Movement
- X-AXIS Movement: 200 mm
- X-AXIS Rapid traverse: 33 m/min
- Z-AXIS Movement: 340 mm
- Z-AXIS Rapid traverse: 36 m/min
Turret
- Number of turrets: 1
Tools
- Slots in storage: 12
Media
- Main electronic connection: 50/60 hz
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Max. Swing over bed 580 mm
- - Maximum machining diameter 280 mm
- - Maximum machining length 310mm
- - Maximum bar work capacity 52 mm
- - Chuck size 6 in
- Qualitative Machine Benefits:
- - Very good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
