Mazak - Multiplex 6200-IICZ-TUR-MAZ-2015-00003

Name: Mazak Multiplex 6200-II
Brand: Mazak
SKU: CZ-TUR-MAZ-2015-00003
Price: 14114550 INR
Availability: InStock

Rs. 14,114,550

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Multiplex 6200-II Lathe

Show in original language

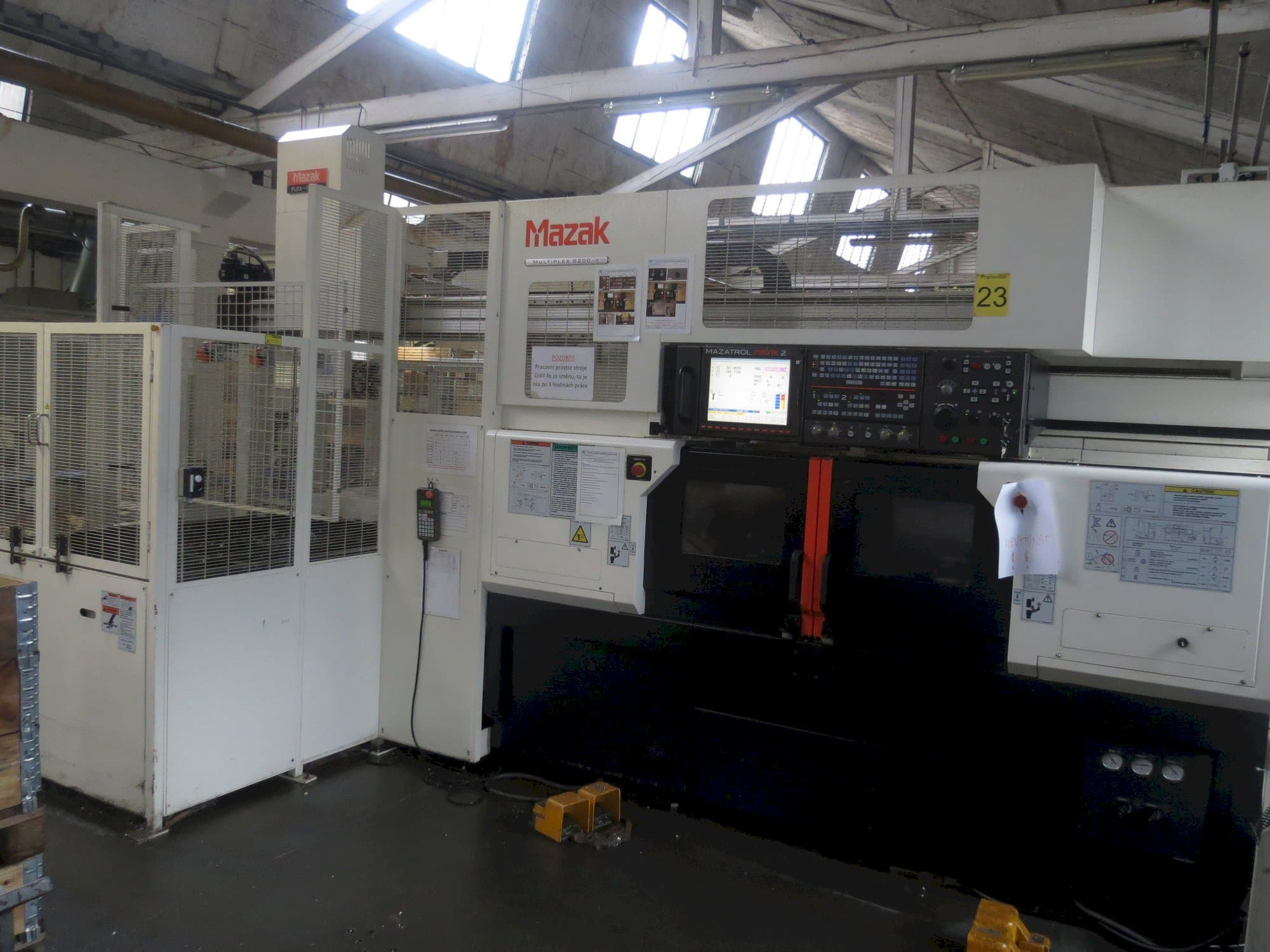

This Mazak Multiplex 6200-II Lathe was manufactured in the year 2015 in Japan. It is equipped with a Mazak Matrix 2 control unit. The machine has a spindle speed of 5000 rpm.

Overview

brand: Mazak
year: 2015
MODEL: Multiplex 6200-II
application type: Turning
Location: Czech Republic
machine type: Turn-Mill Centre
availability: Immediately
control unit brand: MAZATROL

Technical Information - Mazak Multiplex 6200-II

General Data

Measurements width: 3570 mm
Measurements depth: 1795 mm
Measurements height: 2090 mm

Control Unit

Model: Matrix 2
Brand: MAZATROL

Main drive

Number of spindles: 2
Spindle speed range: 5000 1/MIN
Spindle motor power: 22.5 kW

Movement

X-AXIS Movement: 230 mm
Z-AXIS Movement: 440 mm

Turret

Number of turrets: 2

Media

Chip conveyor: Yes

Additional equipment

- 12-position VDI tool head with all positions or live tools (speed 4500 rpm)
- Tool eye (probe) automatic for both turrets
- Direct measuring (X-axis) for left and right side
- ROBOTIC LOADING SYSTEM
- Chip conveyor rear output (link/for steel.material.)
- Mist separator
- Chuck blowing
- Blowing during workpiece transfer

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum swing: 320 mm
- - Maximum machining length chuck work: 180 mm
- - Maximum machining length shaft work: 530 mm
- - Maximum bar size diameter: 51 mm
- - Rapid traverse x1/x2: 30,500 mm/min
- - Main spindle c-axis (0. 0001°)
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
