Mazak LASER-PATH NEW SUPER TURBO X48 Laser Cutting Machine

Show in original language

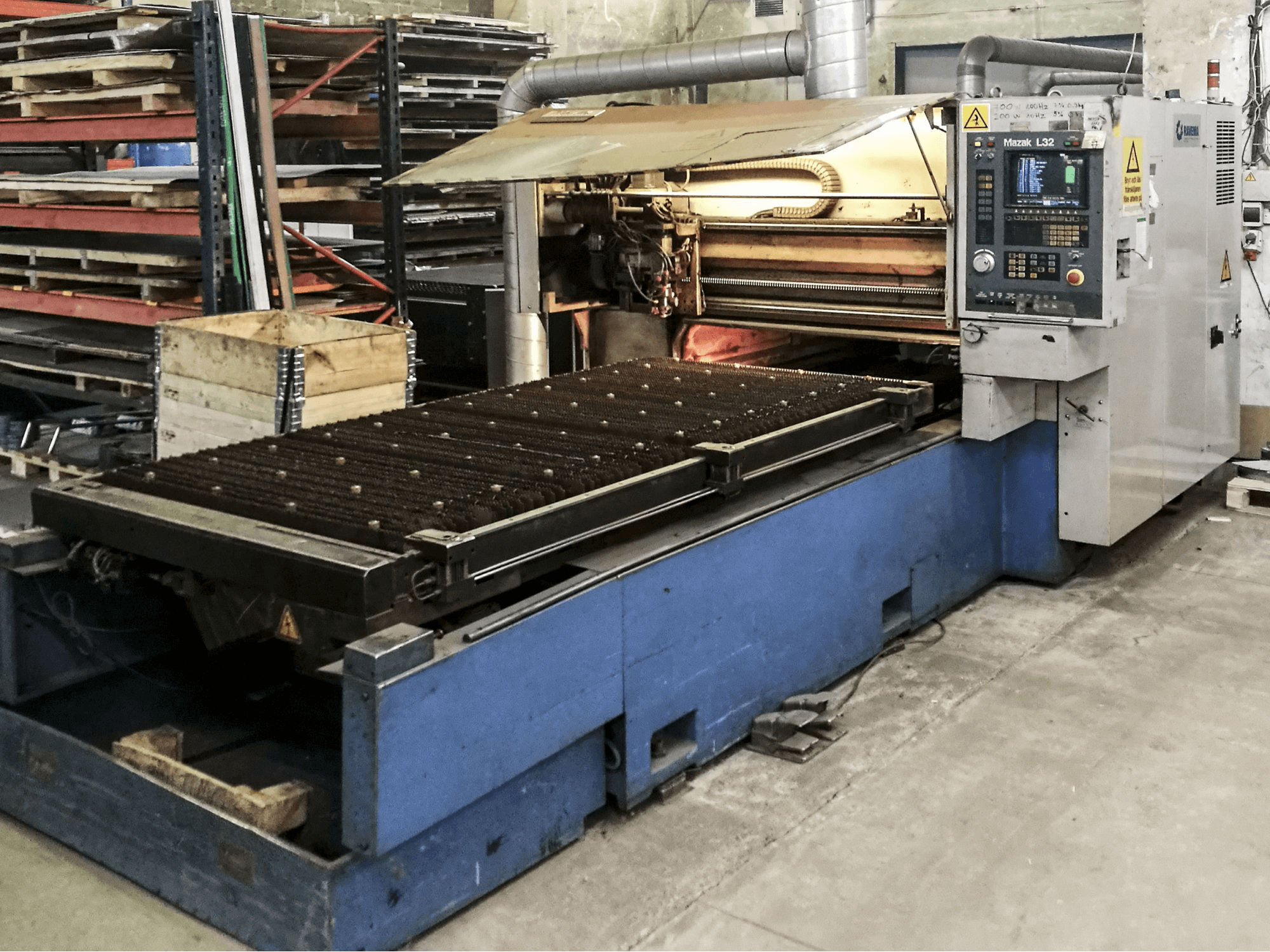

This Mazak LASER-PATH NEW SUPER TURBO X48 Laser Cutting Machine from 1990 was manufactured in Japan and has been operative for 46770 production hours since then. This model is equipped with a Mazak L-32 Control unit and a Panasonic CO2 laser with 1.5 kW laser power. The machine has mainly worked with mild steel sheets of up to 12 mm of thickness during the past and incorporates a chiller in the delivery.

Overview

brand: Mazak
year: 1990
MODEL: LASER-PATH NEW SUPER TURBO X48
production hours: 46770
application type: Cutting
Location: Estonia
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: Mazak

Technical Information - Mazak LASER-PATH NEW SUPER TURBO X48

General Data

Measurements width: 2600 mm
Measurements depth: 5555 mm
Measurements height: 2400 mm
Machine weight: 8500 kg

Control Unit

Brand: Mazak
Model: L-32

Main drive

Laserpower: 1.5 kW
Laser type: CO2
Laser brand: Panasonic

Movement

X-AXIS Movement: 2630 mm
Y-AXIS Movement: 1270 mm
Z-AXIS Movement: 100 mm

Workpiece

Workpiece x: 2500 mm
Workpiece y: 1250 mm
Workpiece weight: 300 kg

Max Material thickness

Steel: 12 mm
Stainless steel: 5 mm
Aluminum: 5 mm

Media

Main electronic connection: 230 / 460 V
Power consumption: 22 kVA
Chip conveyor: Yes

Additional equipment

- Chiller

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
