GINDUMAC
Products
Sheet Metal Machinery
Macri Italia PROVAR 6-65 Pipe Bending Machine

Show in original language

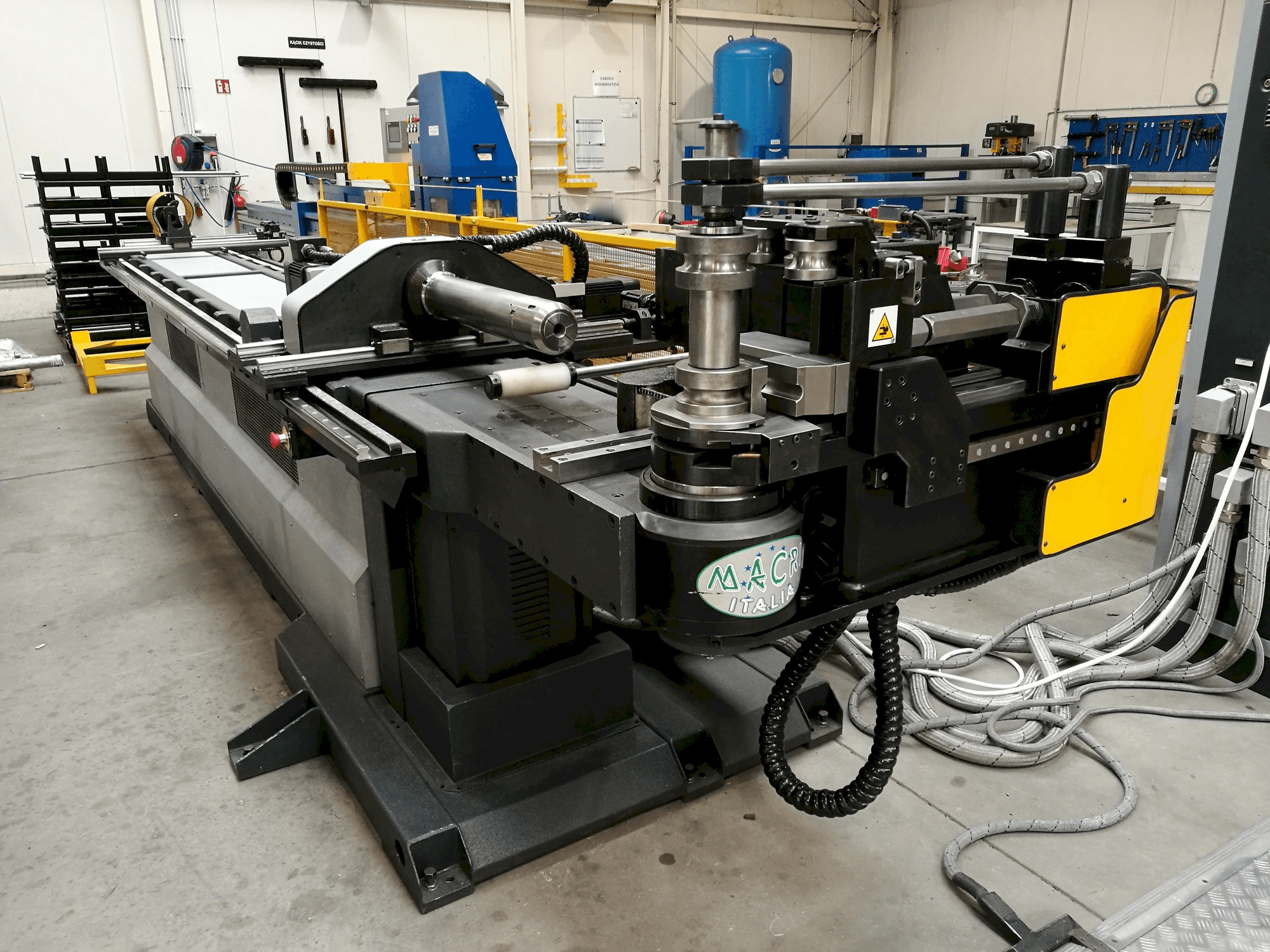

This Macri Italia PROVAR 6-65 Pipe Bending Machine was manufactured in 2011 in Italy. Operated through a numerical touch screen control unit, this machine incorporates 6 fully automatic axes. It stands out for its movable head with gears made of high-strength and improved steel. It has an hydraulic unit for movements of the clamp and all hydraulic closures. The pipe passage in the positioner can work up to a diameter of 65mm. It is possible to build several levels of the tool.

Overview

brand: MACRI
year: 2011
MODEL: PROVAR 6-65
application type: Bending
Location: Poland
machine type: Roll Bending Machine
availability: Sold

Technical Information - MACRI PROVAR 6-65

General Data

Measurements width: 6000 mm
Measurements depth: 1200 mm
Measurements height: 1200 mm
Machine weight: 4800 kg

Main drive

Number of axis: 6

Media

Power consumption: 30.5 kW

Additional equipment

- toolkit
- software
- 3 pallets of additional holders

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Pipe diameter 65x4 mm
- - Usable length of the pipe: 5100 mm
- - Automatic lubrication of the mandrel
- - Movable head with gears made of high-strength, improved steel
- - 3 levels of tools - 3 different fixed beams or 2 different constants
- - Pipe passage in the positioner up to a diameter of 65mm
- - Mounted: radiator, automatic lubrication of the mandrel, extraction of the earlier stem it is possible to build several levels of the tool
Qualitative Machine Benefits:
- - Direction of rotation in a clockwise direction
- - Axial movements using brushless motors and high reliability drives
- - Hydraulic unit for movements of the clamp and all hydraulic closures
- - The possibility of bending standard and free (variable) rays

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
