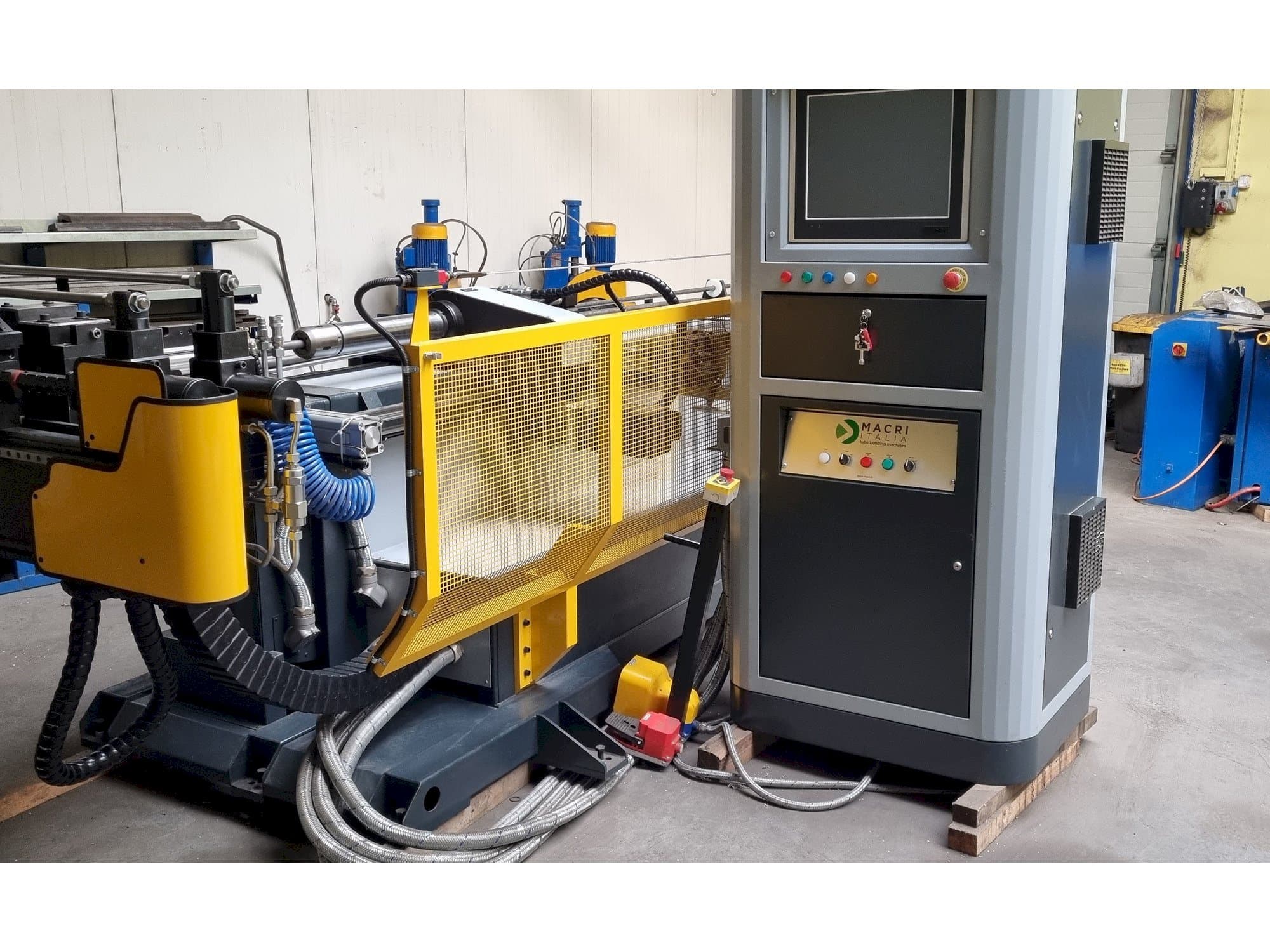

MACRI ITALIA PROVAR 6-45 U-D Bending machine

Show in original language

This MACRI ITALIA PROVAR 6-45 U-D Bending machine was manufactured in the year 2019 in Italy and has 218 working hours. It is equipped with a PC MACRI flat control unit and has 6 axis. The machine has a max tube length of 5800 mm.

Overview

brand: MACRI
year: 2019
MODEL: PROVAR 6-45 U-D
production hours: 218
application type: Bending
Location: Poland
machine type: Die Bending Machine
availability: Sold

Technical Information - MACRI PROVAR 6-45 U-D

General Data

Measurements width: 6000 mm
Measurements depth: 1200 mm
Measurements height: 1200 mm
Machine weight: 4200 kg

Control Unit

Model: flat

Main drive

Number of axis: 6

Media

Main electronic connection: 400V / 50 Hz

Additional equipment

- tooling for pipe dim. 30 mm, bend radius 6
- tooling for pipe dim. 42.4 mm, bend radius 85
- tooling for pipe dim. 60.3 mm, bend radius 120
- tooling for 60x40 profile bending radius
- mandrel to prevent flattening of the pipe when bending
- smoothing pad prevents tube creasing
- automatic lubrication of the mandrel
- additional safety mat during machine operation
- hydraulic clamp vice

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Pc macri flat, 19” touch screen, interface language available: pl, en, it
- - Max tube dim. : 45x4 mm
- - Max tube diameter for variable radius min. Rm 10d: 35x2 mm
- - Max tube lenght: 5800 mm
Qualitative Machine Benefits:
- - The machine connected, all tests possible. Full documentation available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
