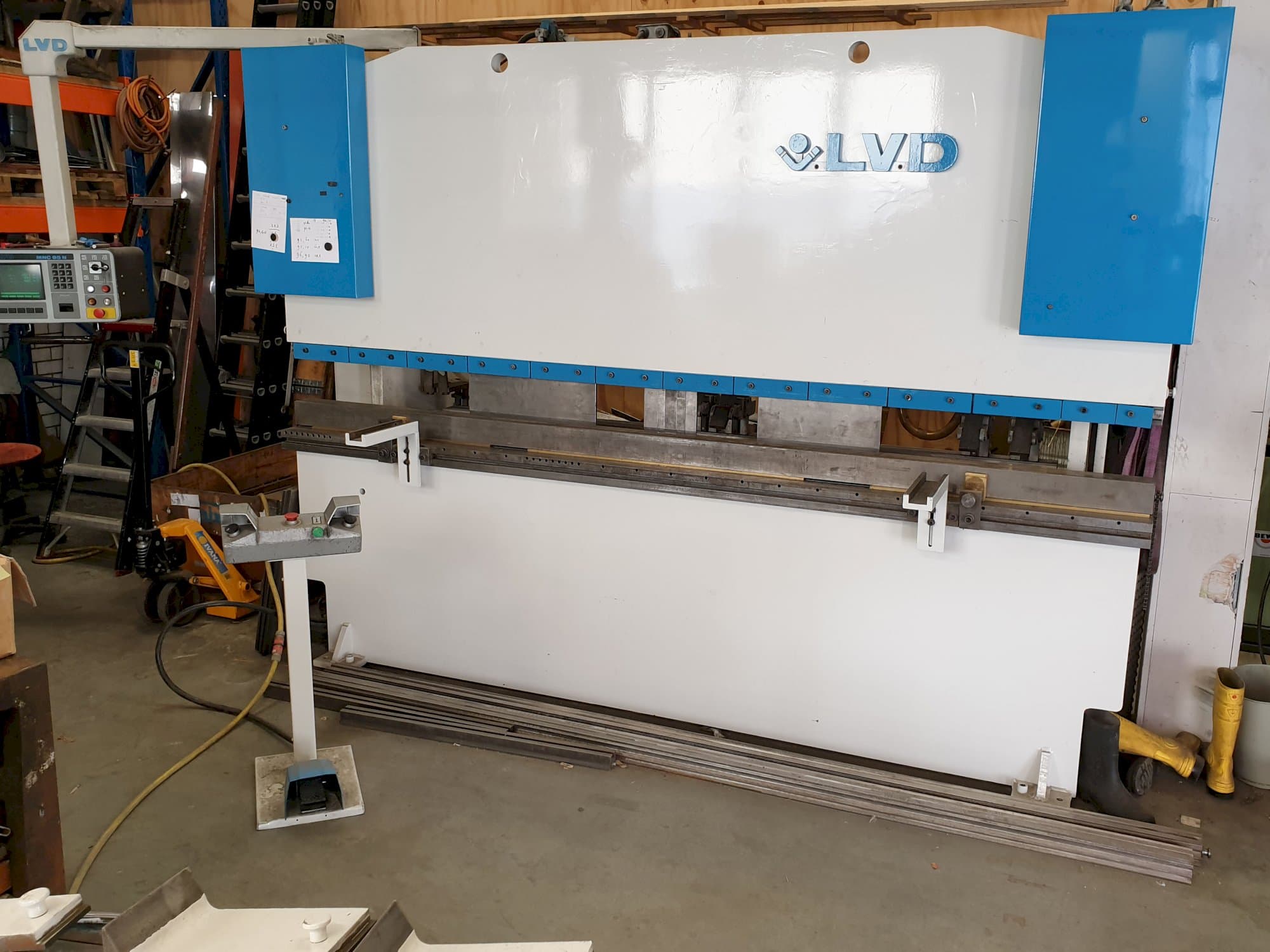

LVD PPI 135/30 Bending Machine

Show in original language

This LVD PPI 135/30 Bending Machine was manufactured in 1989 in Belgium and counts with a production time of 6000 hours. Operated through a LVD MNC 85 N Control unit, this strong performance machine has mainly worked with copper and steel up to 6 mm of thickness during the past. It stands out due to its wide range of beams options and a retrofitted look. It presents overall good conditions, as it works with no downtime.

Overview

brand: LVD
year: 1989
MODEL: PPI 135/30
production hours: 6000
application type: Bending
Location: Netherlands
machine type: Press Brake
availability: Sold

Technical Information - LVD PPI 135/30

General Data

Measurements width: 3600 mm
Measurements depth: 1600 mm
Measurements height: 2500 mm
Machine weight: 6500 kg

Control Unit

Model: MNC 85 N
CNC main language: English
CNC language customizable: Yes

Main drive

Pressing force: 1350 kN
Bending length: 3050 mm

Max Material thickness

Steel: 8 mm
Stainless steel: 8 mm
Aluminum: 8 mm

Media

Main electronic connection: 380 V
Power consumption: 12.5 kVA

Additional equipment

- 12X knife parts (extra box of 100kgs)
- 5x beam tools (120kgs)
- 1x extra backlight

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
