➤ Used LVD Phoenix FL 3015 For Sale | gindumac.com

Show in original language

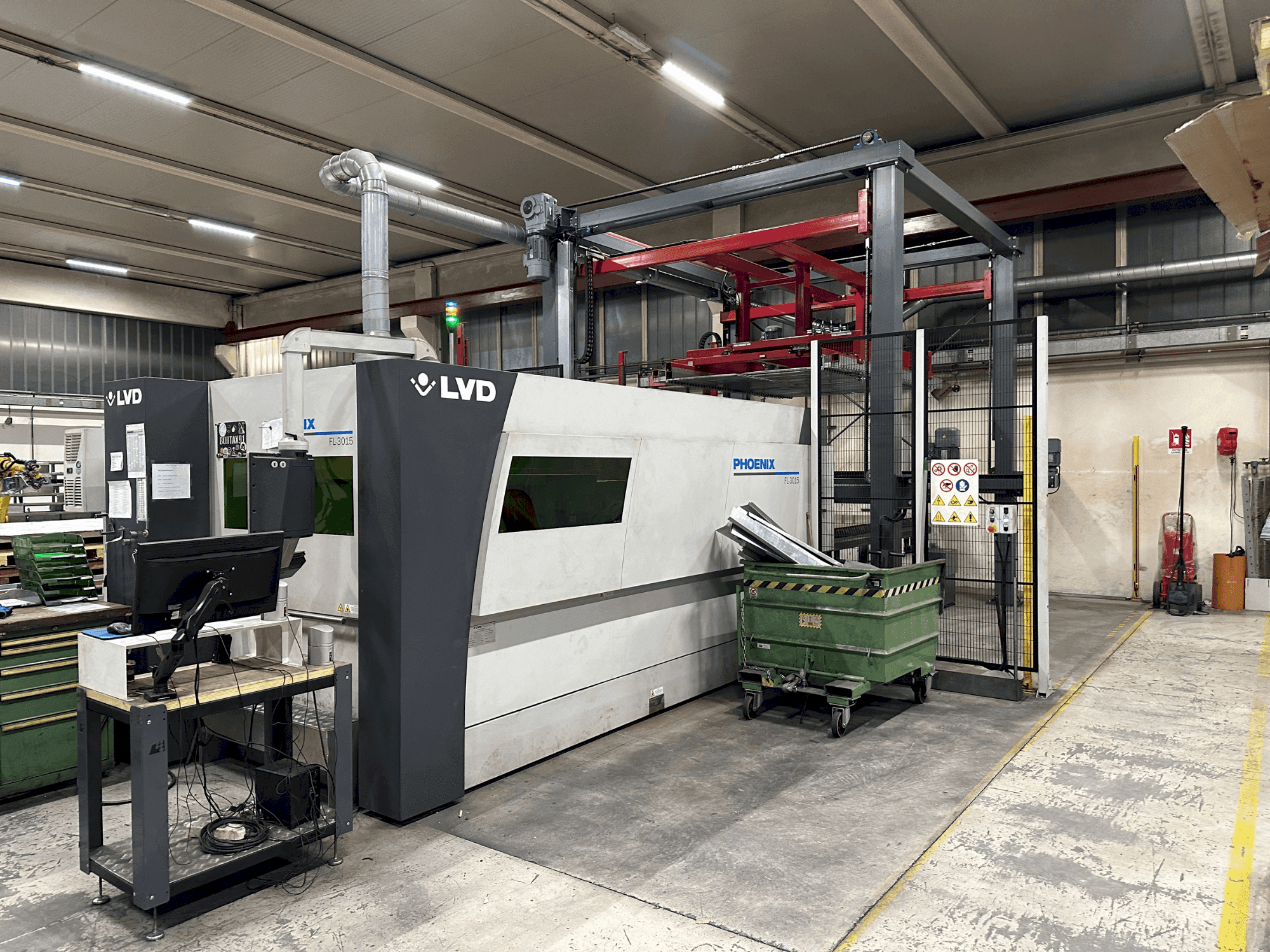

This LVD Phoenix FL 3015 was manufactured in 2018. A robust fiber laser cutting machine, it's ideal for precision cutting tasks. If you are looking to get high-quality cutting capabilities, consider the LVD Phoenix FL 3015 machine we have for sale. Contact us for more information.

Overview

brand: LVD
year: 2018
MODEL: Phoenix FL 3015
application type: Cutting
Location: Italy
machine type: Fiber Laser Cutting Machine
availability: Immediately

Technical Information - LVD Phoenix FL 3015

General Data

Measurements width: 4895 mm
Measurements depth: 10500 mm
Measurements height: 2250 mm
Machine weight: 14000 kg

Main drive

Laser type: IPG 6 kW

Additional equipment

- Starmatik loading/unloading system
- LM4400: Interface for third-party loading/unloading
- LM5130: Automatic nozzle changer
- LM5610: Brushes between tables

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum sheet dimensions: 3000 x 1500 mm
- - Positioning speed: x-y axes: 140 m/min
- - Repeatability accuracy: ±0. 025 mm
- - Positioning accuracy: ±0. 05 mm/m
- - Rated power: 36 kw (6 kw laser)
- - Power range: 100 to 6000 w
- - Compressed air requirements: 6 bar – 30 nm³/h peak (filter)
- - Cutting gas (consumption): o2 (oxygen) or n2 (nitrogen): minimum pressure 12 bar – maximum pressure 32 bar
- - Cutting gas (connections): 50 m³/hour at 6-7 bar (maximum 12 bar)

Extra information

- Software Cadman L 3D CNC TOUCH-L Electra Update

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
