LVD Implus 4030 Laser Cutting Machine

Show in original language

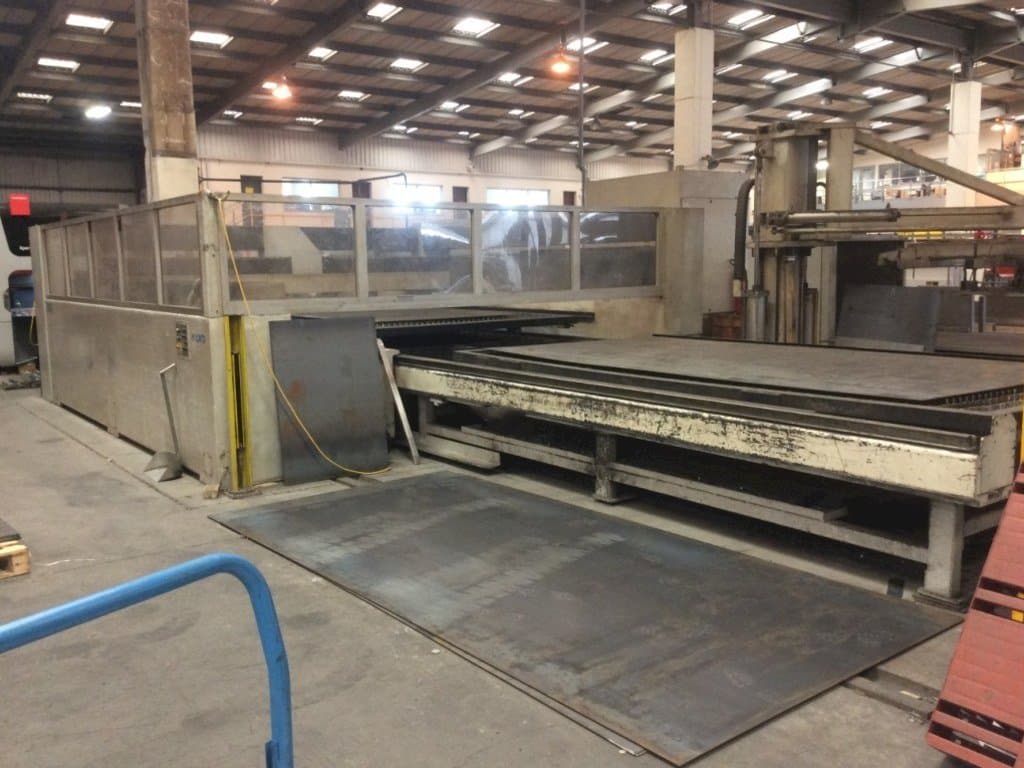

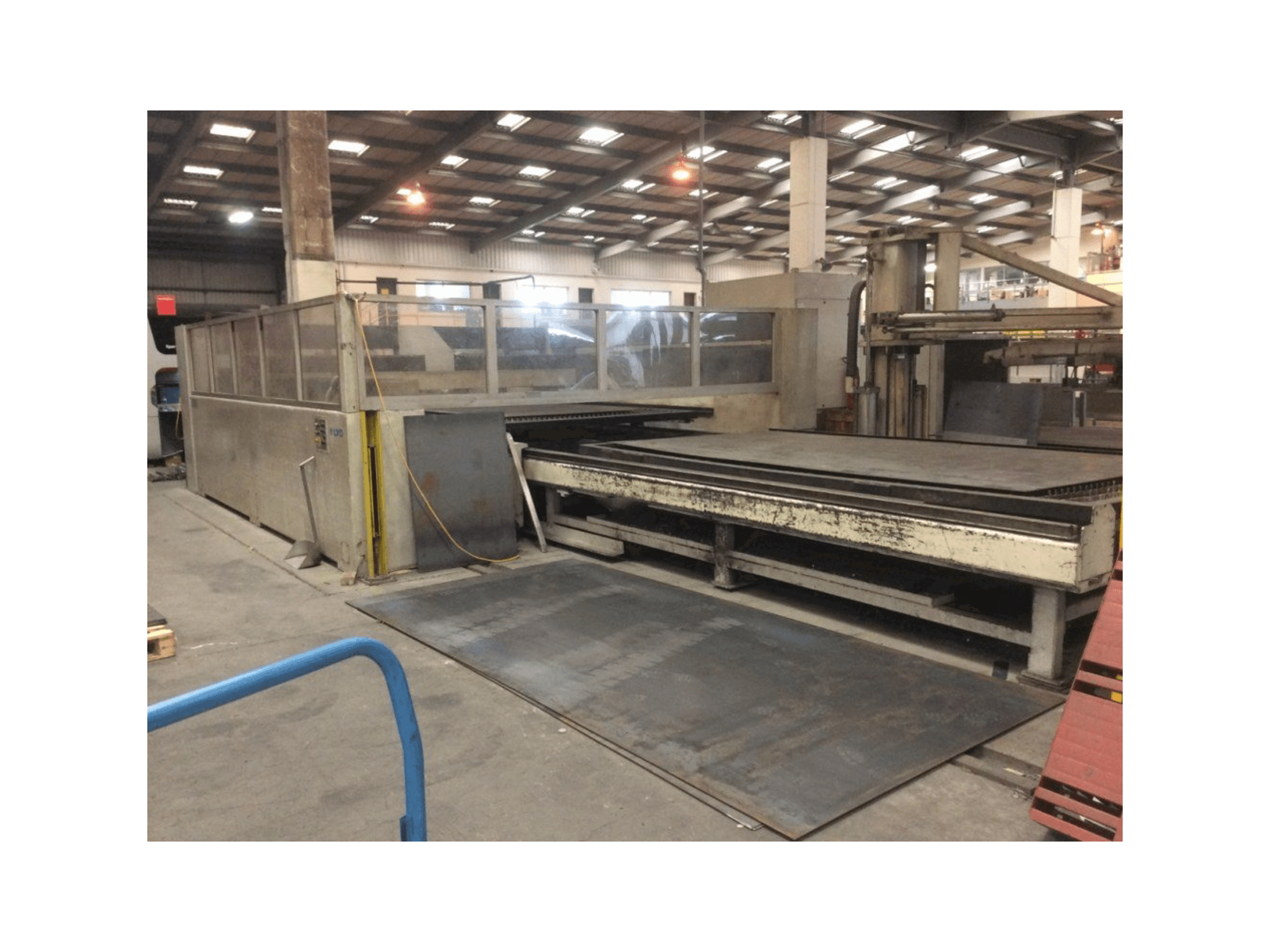

This LVD Implus 4030 Laser Cutting Machine from Belgium was manufactured in 2000. It has a working time of 46714 production hours. It is equipped with a FANUC LVD Series 16-L control unit. This machine can operate with a laser power of 4 kW. It has mainly worked with mild steel during the past. Some additional equipment including sheet loading system Impuls 4020, rotary tube processing station, dust extraction, and a chiller are included.

Overview

brand: LVD
year: 2000
MODEL: Implus 4030
production hours: 46714
application type: Cutting
Location: Ireland
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: FANUC

Technical Information - LVD Implus 4030

General Data

Measurements width: 13285 mm
Measurements depth: 8534 mm
Measurements height: 2050 mm

Control Unit

Model: LVD Series 16-L
CNC main language: English
Brand: FANUC

Main drive

Laserpower: 4 kW
Plasma brand: GE Fanuc C4000A
Laser type: CO2

Movement

X-AXIS Movement: 3150 mm
Y-AXIS Movement: 4070 mm
Z-AXIS Movement: 280 mm

Workpiece

Workpiece x: 4000 mm
Workpiece y: 2000 mm
Workpiece weight: 2400 kg

Max Material thickness

Steel: 20 mm
Stainless steel: 15 mm
Aluminum: 10 mm

Media

Main electronic connection: 400 V

Additional equipment

- Sheet Loading System Impuls 4020
- Rotary Tube Processing Station
- Dust Extraction
- Chiller
- Cadman L Offline Laser Programming Software

Additional Information

Machine history

Material type: Mild steel
End product: Machinery parts

Machine Benefits

Technical Machine Benefits:
- - Twin pallet
- - Sheet loader
Qualitative Machine Benefits:
- - Bi-annually maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
