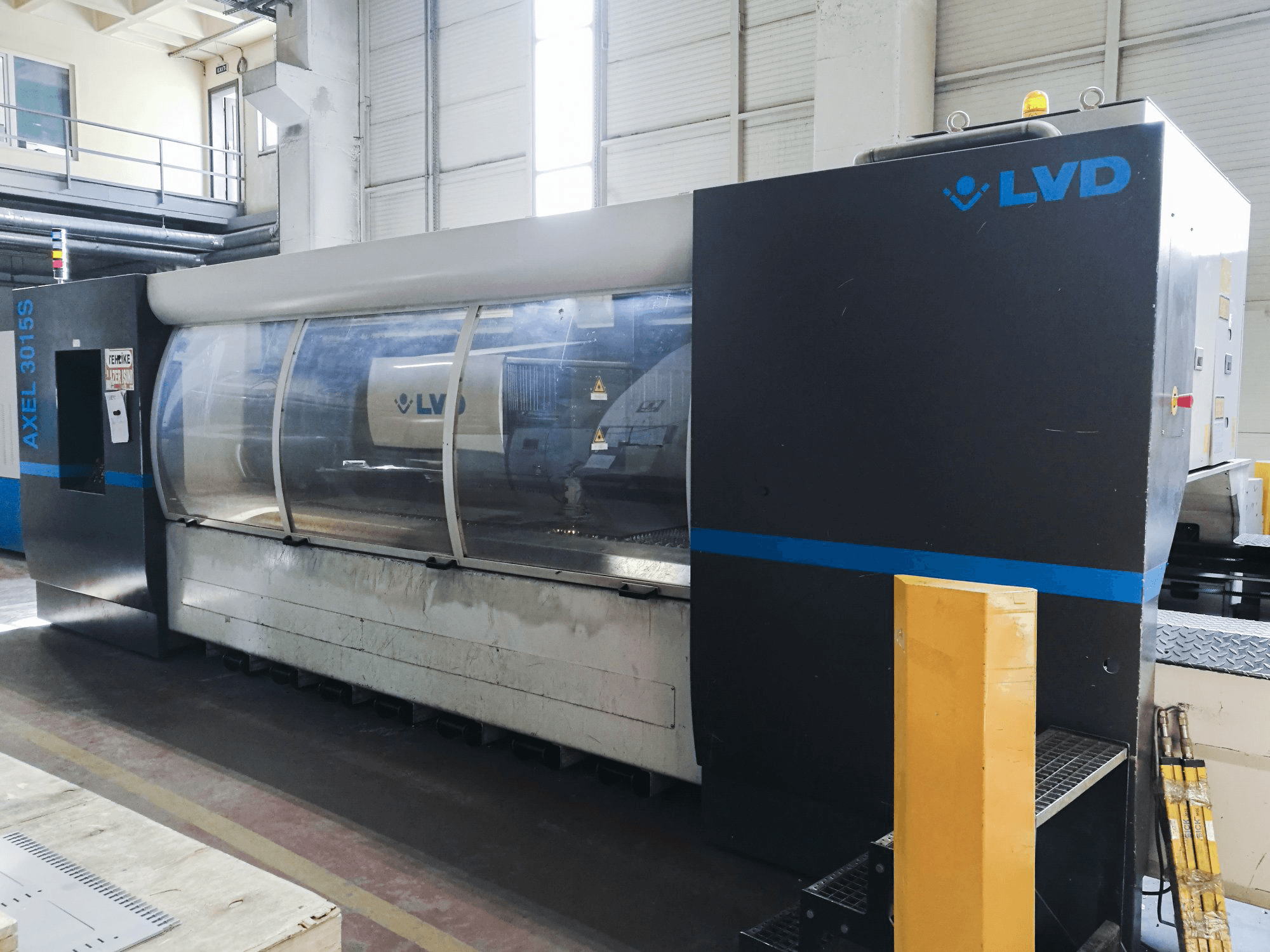

LVD Axel-3015 S Laser Cutting Machine

Show in original language

This Axel-3015 S is a LVD Laser Cutting Machine from 2004 has a production record of 48342 hours. Operated through a FANUC 160i-LB Control unit, the equipment stands out for its excellent condition as well as for its high working feed (measurable in 0 to 120 m/min in the X-Axis, 0 to 120 mm/min in the Y-Axis, and 0 to 169 m/min in the X-Y Axis when operated simultaneously).

Overview

brand: LVD
year: 2004
MODEL: Axel-3015 S
production hours: 48342
application type: Cutting
Location: Turkey
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: FANUC

Technical Information - LVD Axel-3015 S

General Data

Measurements width: 11500 mm
Measurements depth: 4450 mm
Measurements height: 2350 mm
Machine weight: 22175 kg

Control Unit

Model: 160i-LB
Interface: Floppy
Brand: FANUC

Movement

X-AXIS Movement: 3150 mm
X-AXIS Working Feed: 0-120 m/min
X-AXIS Rapid traverse: 120 m/min
X-AXIS Accuracy: 0.05
Y-AXIS Movement: 1600 mm
Y-AXIS Working Feed: 0-120 m/min
Y-AXIS Rapid traverse: 120 m/min
Y-AXIS Accuracy: 0.05
Z-AXIS Movement: 100 mm
Z-AXIS Working Feed: 0-30 m/min
Z-AXIS Rapid traverse: 30 m/min
Z-AXIS Accuracy: 0.05
X-Y-Simultaneous Working Feed: 0-169 m/min

Table

Outer length: 3000 mm
Outer width: 1500 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 96 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
