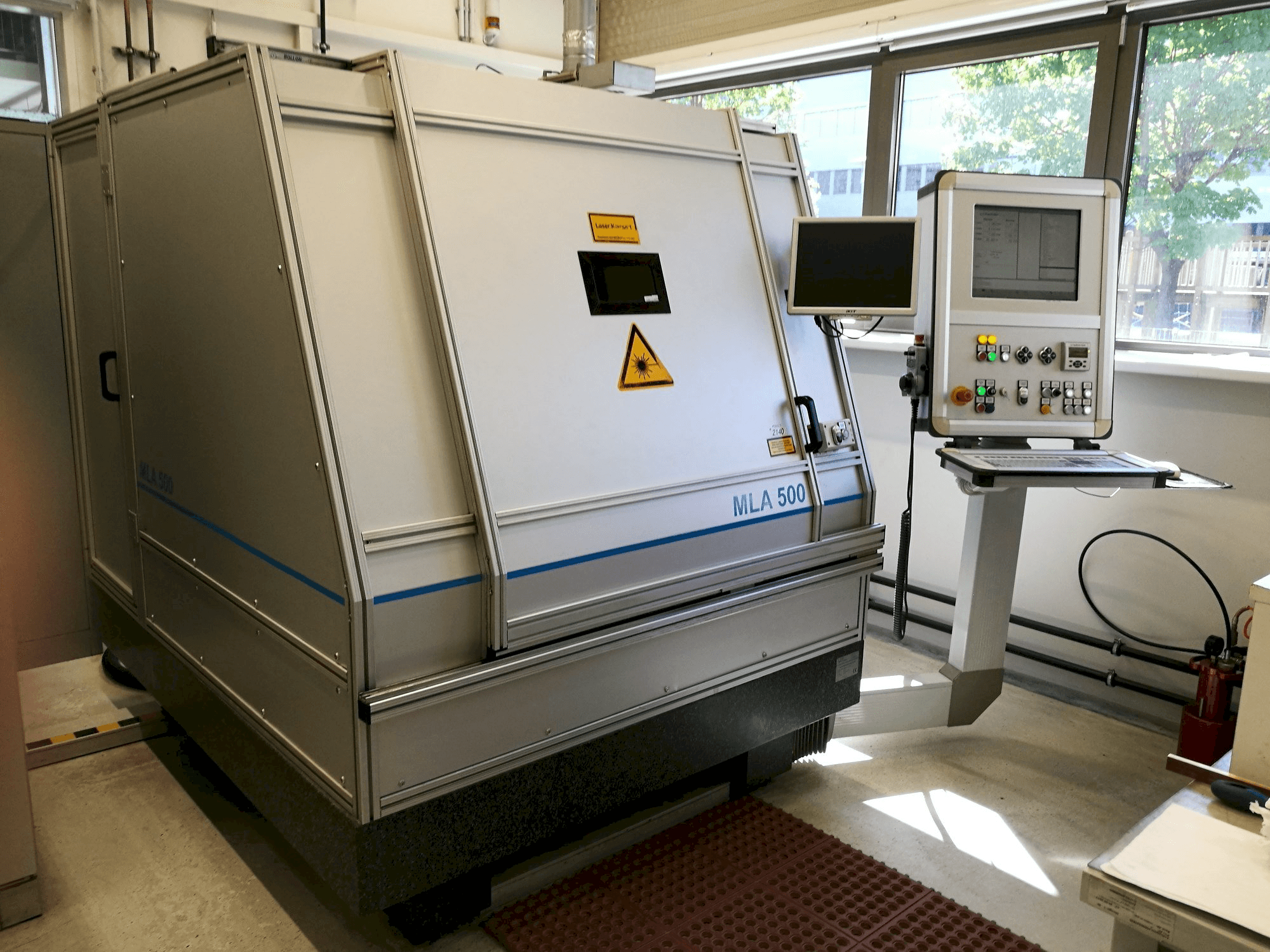

LLT APPLIKATION MLA 500 Laser Cutting Machine

Show in original language

This LLT APPLIKATION MLA 500 Laser Cutting Machine was built in Germany in the year 2008. It has been working for approximately 40760 hours since then. It is operated with a ProCom control unit. This machine can operate with a laser power of 150 w.

Overview

brand: LLT APPLIKATION
year: 2008
MODEL: MLA 500
production hours: 40760
application type: Cutting
Location: Austria
machine type: CO2 Laser Cutting Machine
availability: Sold

Technical Information - LLT APPLIKATION MLA 500

Main drive

Laserpower: 150 Watt KW

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 400 mm
C-AXIS Movement: +-9999 degrees MM

Media

Power consumption: 15kVA 9kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Wavelength: 1064nm
- - Laser type: nd-yag solid state laser pulsed
- - Beam diameter: 6mm (approx. 0. 15mm focus point)
- - Pulse frequency: 0. 1 - 1000 hz
- - Pulse duration: 0. 1 - 20 ms
- - Cooling water consumption: max. 20 l/min at max. 20°c
- - 4 axes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
