➤ Used LIGMATECH ZHR 15/XX/LI Workpiece Return For Sale

Show in original language

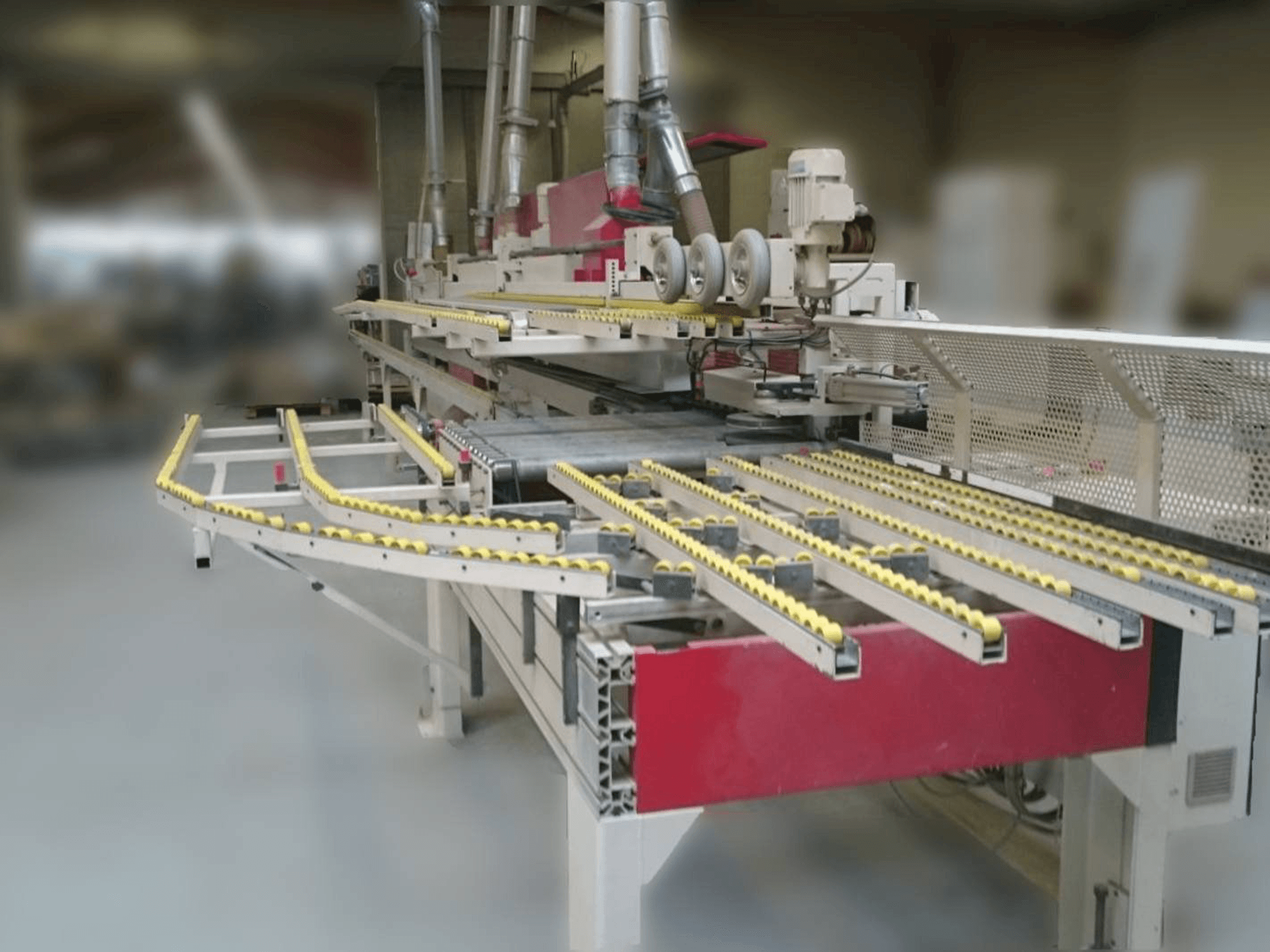

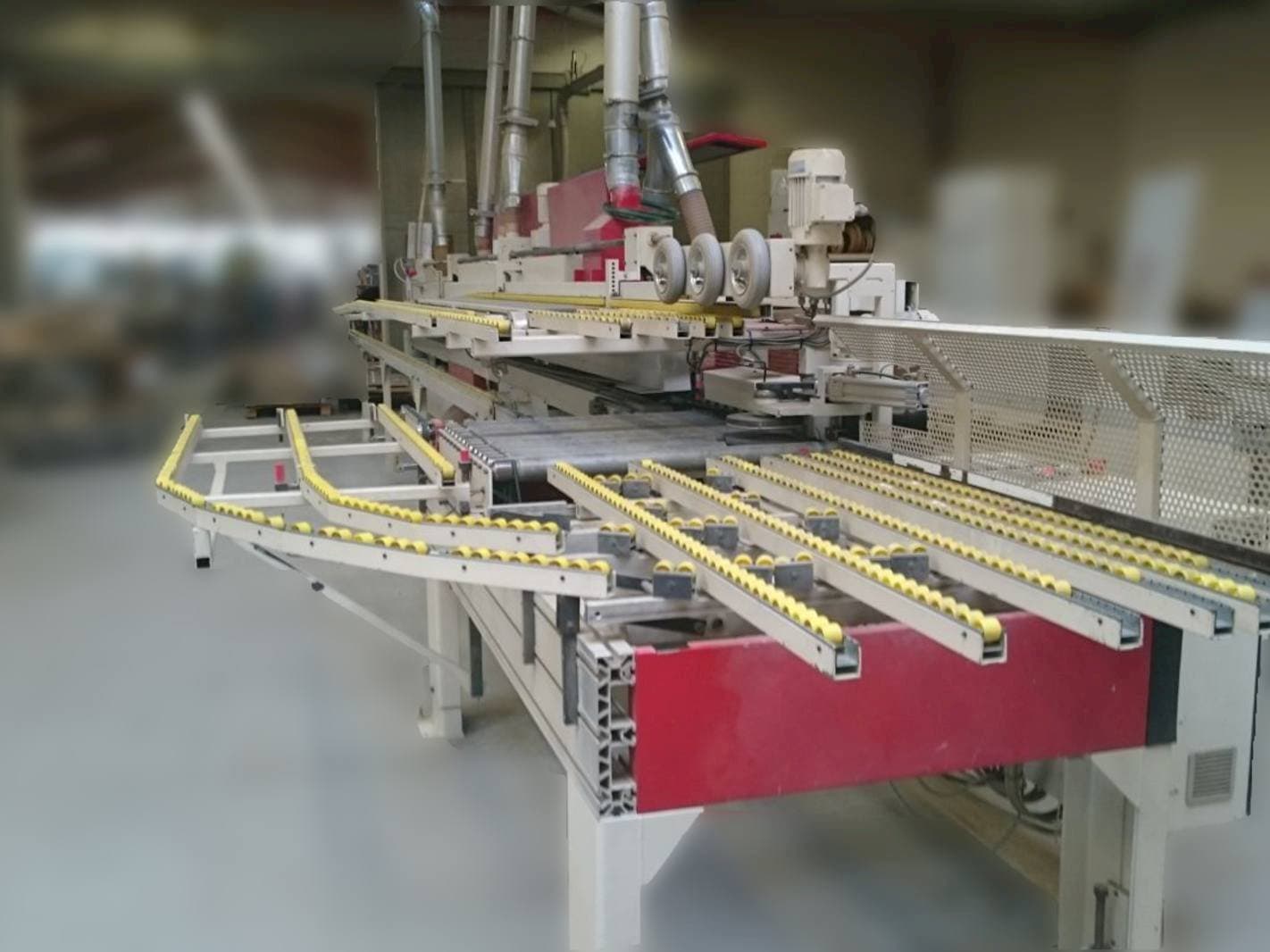

This workpiece return was manufactured in 1997 by Ligmatech, model ZHR 15/XX/LI. This system allows for one-man operation, enhancing efficiency on edge banding tasks. Equipped with a driven roller conveyor and a turning station, it supports workpieces up to 2200 mm in length and 1000 mm in width, with a maximum thickness of 50 mm. For more information about this woodworking machine, please reach out to us.

Overview

brand: LIGMATECH
year: 1997
MODEL: ZHR 15/XX/LI
application type: Sawing (Wood)
Location: Germany
machine type: Panel Saw
availability: Sold

Technical Information - LIGMATECH ZHR 15/XX/LI

Additional equipment

- Roller conveyor system
- Lifting station with scissor mechanism
- Inclined roller conveyor
- Turning station
- Support roller track

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Operating voltage: 400 v, 50 hz
- - Feed speed: 8 - 25 m/min
- - Workpiece dimensions during rotation crossways/longways: length 2200-300 mm, width 1000-120 mm,thickness 50-22 mm, weight 40 -30 kg
Qualitative Machine Benefits:
- - Designed for one-man operation on edge banding machines
- - Workpiece handling specifications detailed for various orientations and sizes
- - Operating pressure: 6 bar
- - Feed speed: infinitely variable 8 - 25 m/min

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
