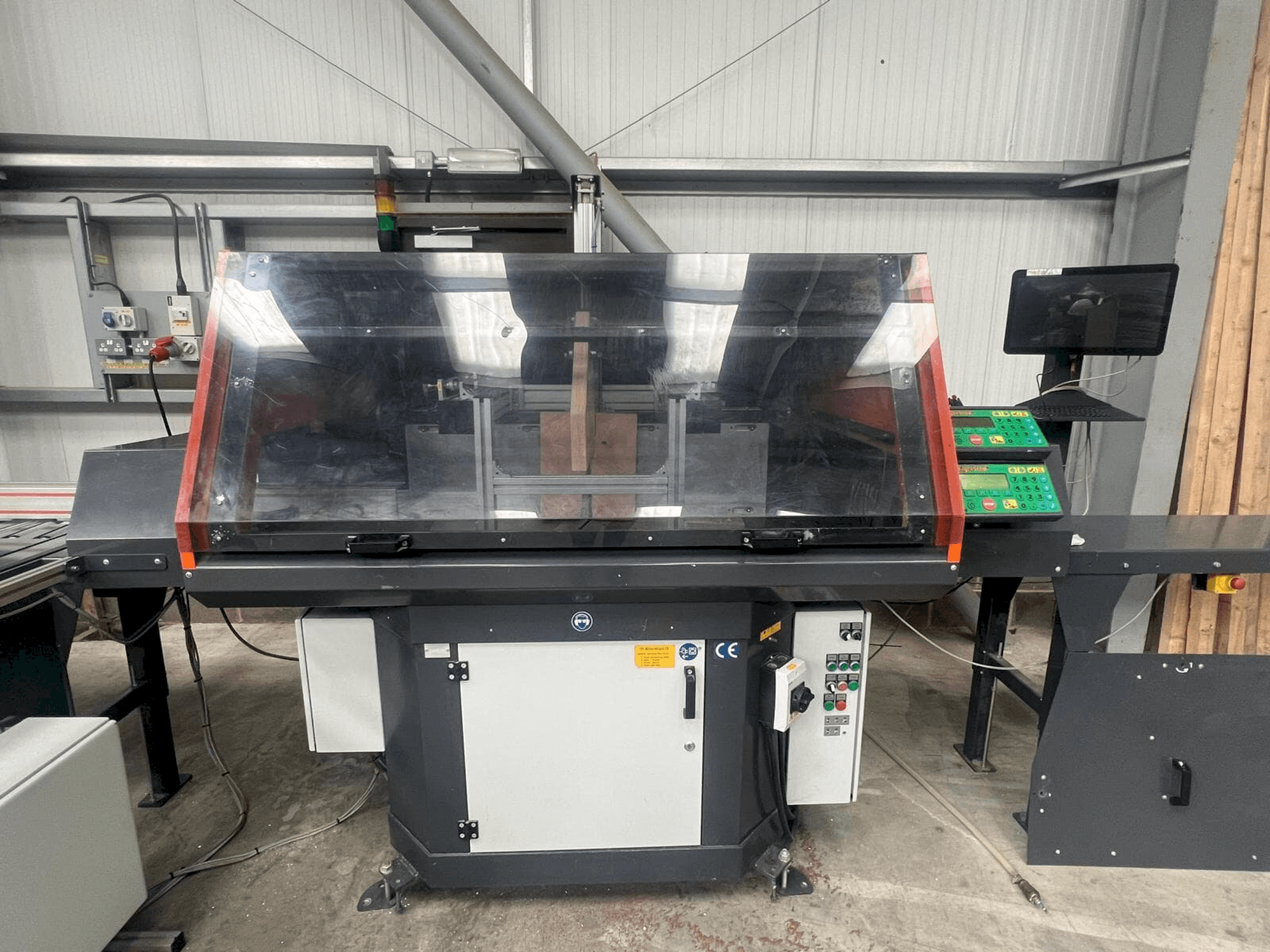

TIGER - UKA 600 Cross cut installationGB-SAW-TIG-2015-00001

Additional equipment

• - PC Control with Beamworks Programme: Computer with Touch Panel and computer cabinet; Cut list download possibilities for CSV file
• - Flipper-Loading Device: For automatic loading of material with length from 500 mm to 6000 mm

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Voltage: 220 volt 50 hz / 400 volt 50 hz
  • - Feed speed: maximum 40 m/min (depends on load)
  • - Precision: +/- 04 mm as pusher
  • - Cutting capacity: 165 x 240 mm at 90 degrees
  • - Maximum cutting height: 165 mm at the fence and 175 mm for round material
  • - Cutting angles: 30-90-30 degrees and 45-90-45 degrees with automatic function
  • - Infeed table: total length 74 meters, table width 325 mm
  • - Outfeed/infeed table with side fence: length 37 meter, width 325 mm
  • - Saw blade diameter: 600 mm
  • - Saw unit on rotating table: diameter 980 mm
• Qualitative Machine Benefits:
  • - Label printer package for beamworks
  • - Safety: safety fence at the back of the machine infeed side including entry door with safety lock; extra guarding at the front to prevent entry between the loading strands; emergency stop safety relais and complete wiring for safety fence door
  • - Product length measuring with sensor: controlled from the controller; length measuring and downloading with software works only on 90-degree cuts

Extra information

• - Machine still under power

Payment Terms

• Payment in advance

• Asset Financing
