Liechti - Turbomill 1400g TwinCZ-TUR-LIE-2010-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools

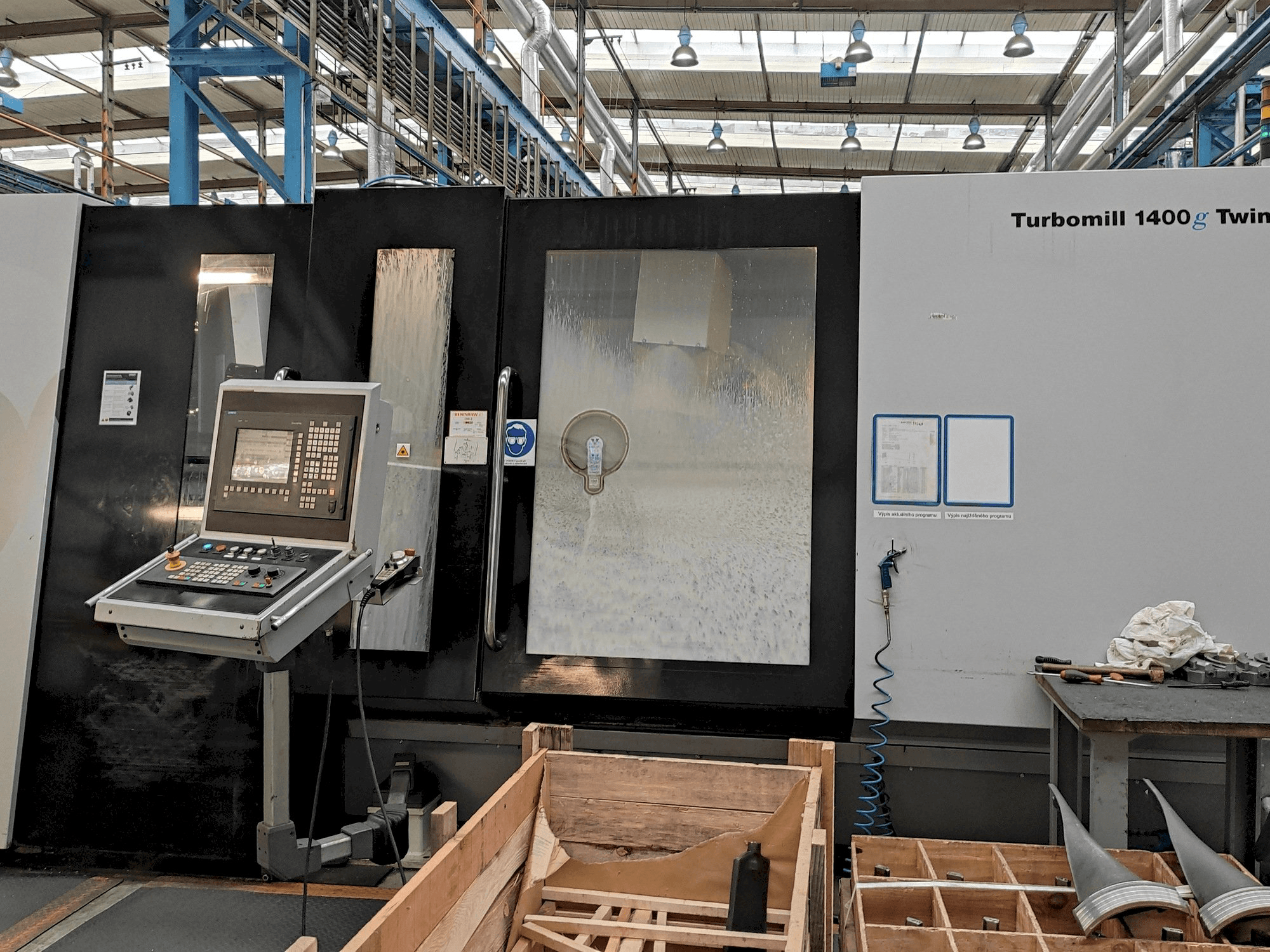

- Liechti Turbomill 1400g Twin Lathe
This Liechti Turbomill 1400g Twin Lathe was made in Switzerland in 2010. It is operated through a Siemens 840D control unit. This 10 axis machine works with a spindle speed up to 20000 rpm. It is in very good condition and has a regularly maintained.
Overview
- brand: Liechti
- year: 2010
- MODEL: Turbomill 1400g Twin
- application type: Turning
- Location: Czech Republic
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: SIEMENS
Technical Information - Liechti Turbomill 1400g Twin
General Data
- Machine weight: 22000 KG
Control Unit
- Model: 840D
- Brand: SIEMENS
Main drive
- Number of spindles: 4
- Spindle speed range: 20000 1/MIN
- Spindle motor power: 25 kW
- Number of axis: 10
Movement
- X-AXIS Movement: 1980 (- 527 / + 1453) mm
- Y-AXIS Movement: 450 (- 160 / + 290) mm
- Z-AXIS Movement: 400 ( + 75 / + 475) mm
Tools
- Slots in storage: 32
- Max tool diameter: 75/150 mm
- Max tool length: 290 mm
- Type of tool holder: HSK-A63
Media
- Main electronic connection: 3 x 400V / 50Hz
- Power consumption: 140 kVA
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - Simultaneous axis operation
- - Axis a (a1/a2 and a11/22) 360 º (rollover)
- - Milling head (axis b): 100 º (- 50 / + 50 º) @ x ≥ 60 mm; 92 º (- 42 / + 50 º) @ x < 60 mm
- - Max. Torque: 119. 4 nm
- - Through spindle cooling
- - Coolant
- Qualitative Machine Benefits:
- - Machine manual
- - Very good condition
- - Regularly maintained
- - *main parts replaced in 2021: new spindle sp1
- - In 2021: new axis a12 - master
- - In 2020: new spindle sp2
- - Z1 and z11 axis and ball screw replacement
- - In 2019: z axis motor replacement
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
