Gildemeister CTX 310 Lathe

Show in original language

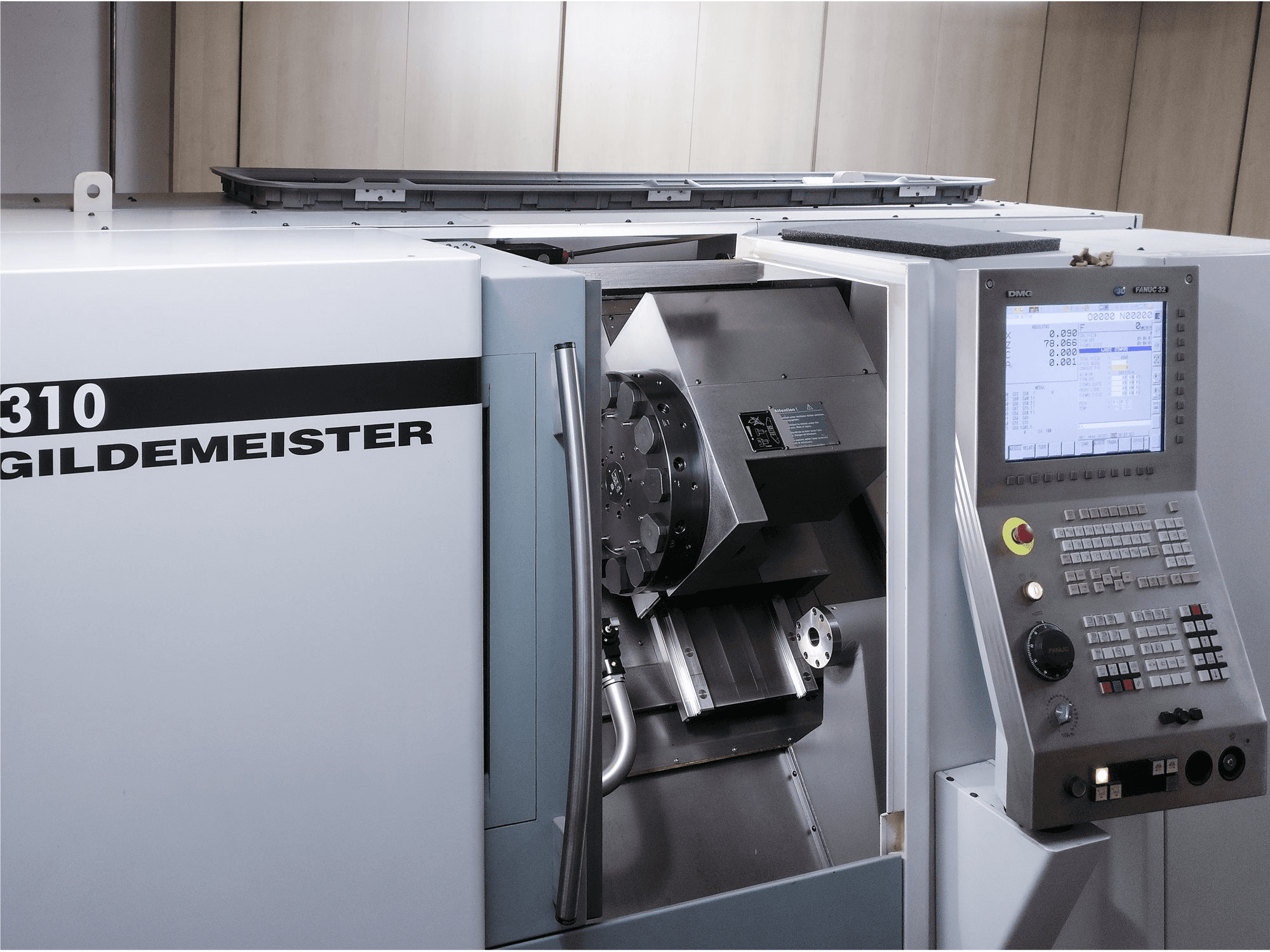

This Gildemeister CTX 310 Lathe was manufactured in 2007 in Italy and has a working record of only 545 production hours since then. This machine is operated through a FANUC 32i Control unit and has exclusively worked with aluminium, producing supplies for the furniture industry. Beside the perfect condition of the machine, which can be considered as new, it stands out due to its tiltable spindle and its automatic tool changer. Additional tools are included in the delivery.

Overview

brand: Gildemeister
year: 2007
MODEL: CTX 310
production hours: 545
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Gildemeister CTX 310

General Data

Measurements width: 4000 mm
Measurements depth: 1563 mm
Measurements height: 1730 mm
Machine weight: 3629 kg

Control Unit

Brand: FANUC
Model: 32i

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/min
Spindle motor power: 12 kW
Spindle bore: 73 mm

Movement

X-AXIS Movement: 213 mm
X-AXIS Working Feed: 24 mm/min
X-AXIS Feed Force: 450 daN
Z-AXIS Movement: 450 mm
Z-AXIS Working Feed: 30 mm/min
Z-AXIS Feed Force: 450 daN

Workpiece

Workpiece drm over bed: 500 mm
Workpiece drm over support: 375 mm
Workpiece drm: 246 mm
Workpiece z: 445 mm
Workpiece weight: 110 kg

Turret

Number of turrets: 1
Number of tool slots: 12

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 24 kVA
Lubrication tank: 175 L
Oil tank: 1.8 L
Internal cooling: Yes

Additional equipment

- Tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
