Leadwell T-7iM Lathe

Show in original language

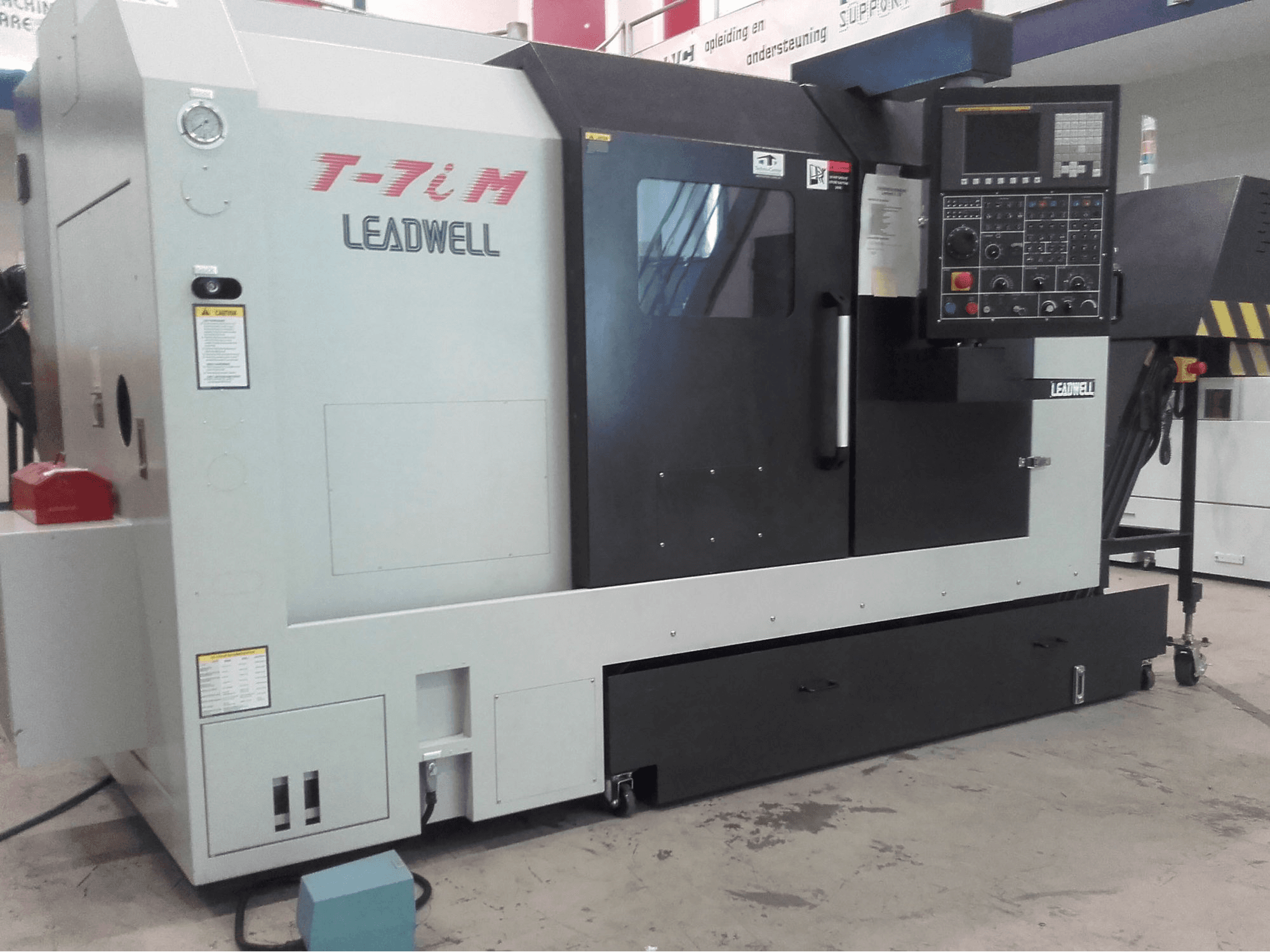

This Leadwell T-7iM Lathe was manufactured in Taiwan in 2013 and counts a total of 1000 working hours. Operated through a FANUC 0iTD Control unit, this barely used machine stands out for its high spindle performance and a a live-tooling turret.

Overview

brand: Leadwell
year: 2013
MODEL: T-7iM
production hours: 1000
application type: Turning
Location: Netherlands
machine type: Turn-Mill Centre
availability: Sold
control unit brand: Fanuc

Technical Information - Leadwell T-7iM

General Data

Measurements width: 2910 mm
Measurements depth: 1900 mm
Measurements height: 1860 mm
Machine weight: 3900 kg

Control Unit

Brand: Fanuc
Model: 0iTD
CNC main language: English
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/min

Movement

X-AXIS Movement: 185 mm
Z-AXIS Movement: 480 mm

Workpiece

Workpiece drm: 350 mm
Workpiece weight: 175 kg

Turret

Number of turrets: 12
Max tool length: 585 mm

Tools

Max weight: 8 kg
Max tool diameter: 40 mm
Max tool length: 25 mm

Media

Main electronic connection: 380 V
Power consumption: 35 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- 3 toll holders

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
