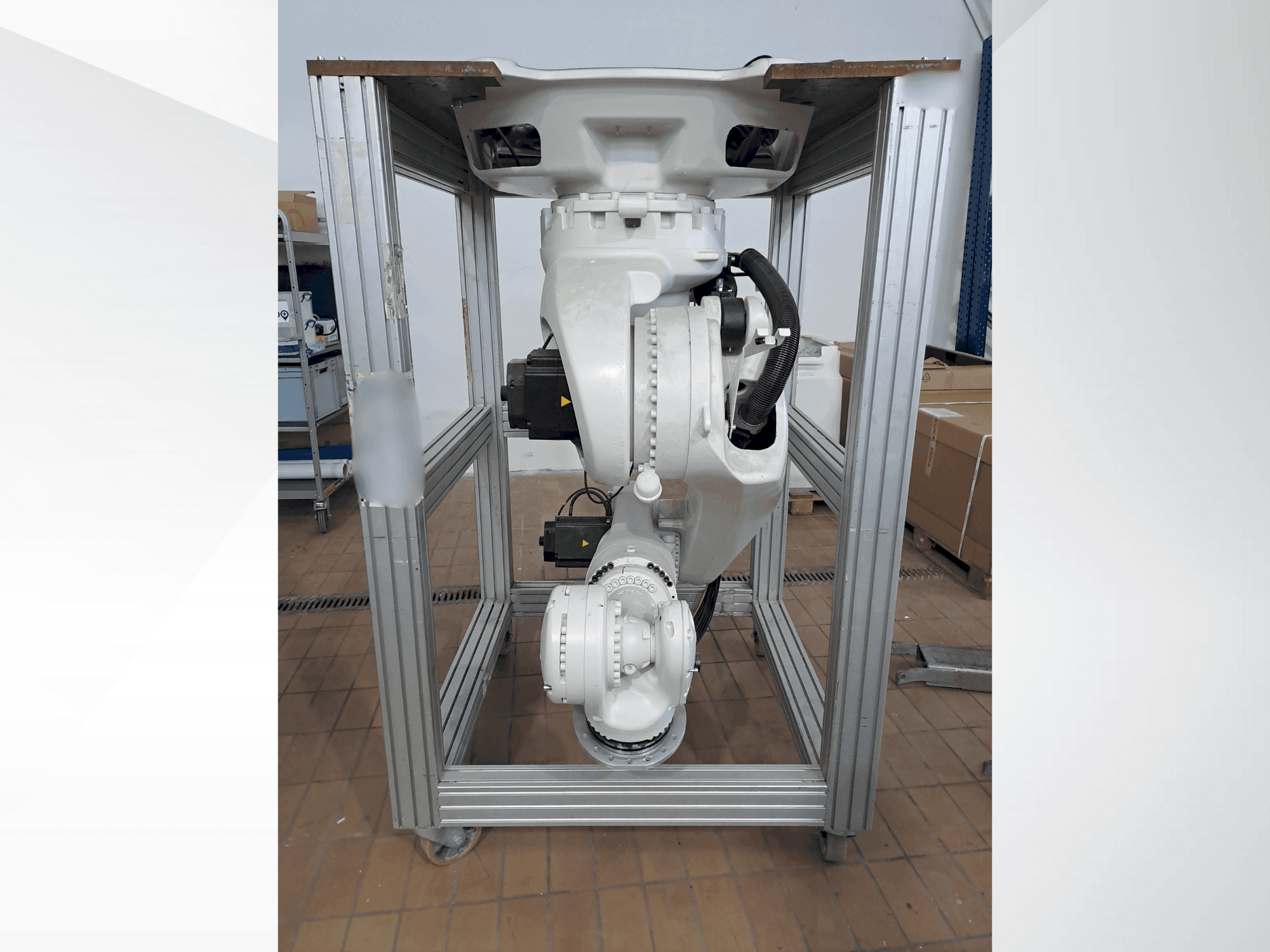

KUKA - KR270 R2700 C ultra MEDDE-ROB-KUK-2015-00002

Additional equipment

• - Resolver Cable: 16m
• - Motor Cable: X7.x flexible, 15m; X30 flexible, 15m
• - Three-phase Servo Motor: TYP-K/1FK7103
• - Reference Switch Assembly: 25m angled / Reference Switch Unit: Cable trailing 15.0m
• - Adjustment Equipment Set for Additional Axes
• - SmartPAD: 1.0 / SmartPAD Holder: Medweiß 610 / Extension Cable SmartPAD: 25m and 10m
• - Scope of delivery: Robot, control cabinet & cable.

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Production hours: less than 1000 machine hours
  • - Positioning robot: kr c4 / special paint finish: mechanics and base / cooling: standard medwhite 610 / krc4 basic enclosure: eu medwhite / disconnector: 8 kva 380/400/440-400/230v, 25a
  • - Mains supply: eu han6 transformer 8 kva mbc / enclosure paint: siemens white 610 /labeling set: de/en kr c4
  • - Ethernet interface: x67. 1-3 / reference switch interface: x42 / external power supply interface: x55 / csp standard: 2xusb3. 0 / rj45 - ksi
  • - Controller: mcc-30s med / kss: 8. 3/ safe operation: 3. 2 / ethernet krl: 2. 2 / robot sensor interface: 3. 2 / remote service: 1. 1 / profinet controller/device: 3. 1
  • - Load: 270 kg / range: 2696 mm

Payment Terms

• Payment in advance

• Asset Financing
