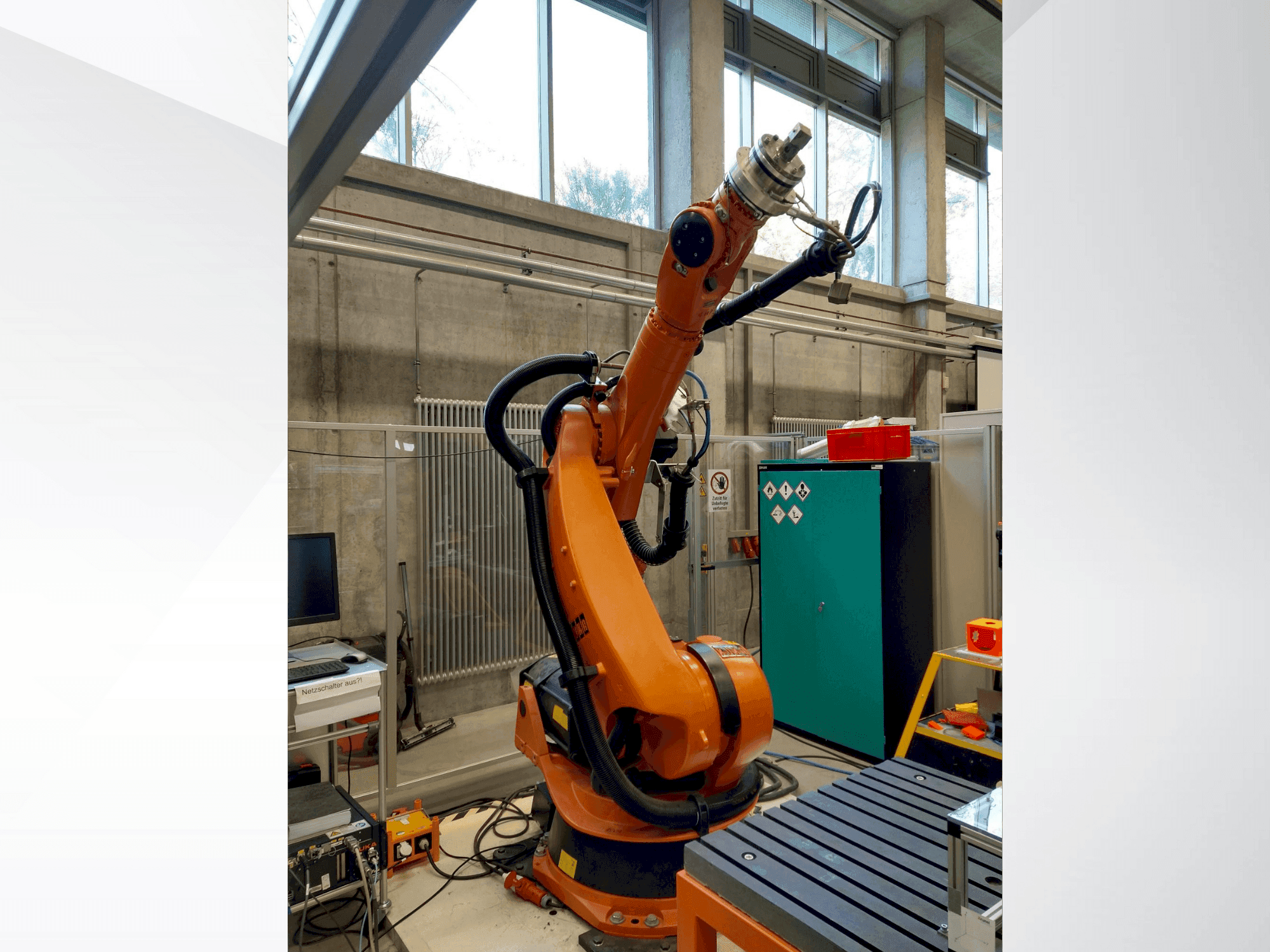

KUKA - KR 240-2 2000DE-ROB-KUK-2009-00004

Additional equipment

• - Robot Arm: max. handling weight: 240 kg
• - Robot Arm: max. reach: Not provided
• - Nominal Payload: 240 kg
• - Additional Arm Load: 50 kg
• - Additional Swing Load: 100 kg
• - Maximum Additional Load (Arm and Swing): 100 kg
• - Additional Carousel Load: 300 kg
• - Maximum Total Load: 640 kg
• - ForceTorqueControl: Yes

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Axis 1 range: ±185° // axis 1 speed: 86°/s at 240 kg payload
  • - Axis 2 range: +0° to -146° // axis 2 speed: 82°/s at 240 kg payload
  • - Axis 3 range: +155° to -119° // axis 3 speed: 79°/s at 240 kg payload
  • - Axis 4 range: ±350° axis 4 // speed: 76°/s at 240 kg payload
  • - Axis 5 range: ±125° axis 5 // speed: 100°/s at 240 kg payload
  • - Axis 6 range: ±350° axis 6 // speed: 110°/s at 240 kg payload
  • - Arm length: 1100 mm
  • - Installation position: floor or ceilings
  • - High payload capacity
  • - Versatile installation positions (floor or ceilings)

Extra information

• - Machine still under power
