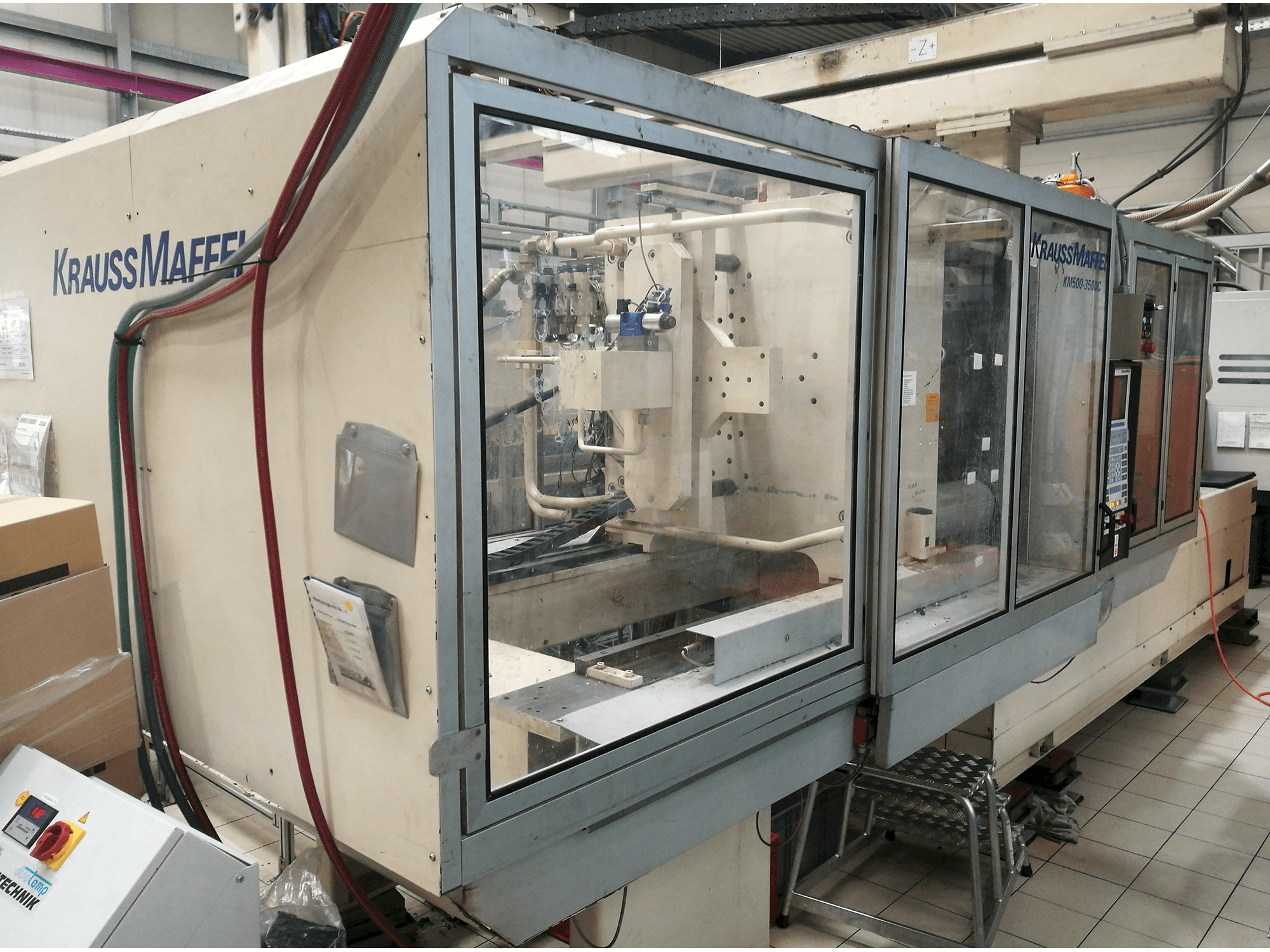

Krauss Maffei KM 500-3500 C1 Injection Moulding Machine

Show in original language

This Krauss Maffei KM 500-3500 C1 Injection Moulding Machine was manufactured in 2001 in Germany and has been operative for 93168 hours since then. Equipped with a Krauss Maffei MC3-F Control unit, this machine offers a clamping force of 5000 kN. Furthermore, in 2013 a new computer was installed, and the Y-axis has a new motor, new gear and new gear rack. Also, its B-axis is rotatable 360 degrees.

Overview

brand: Krauss Maffei
year: 2001
MODEL: KM 500-3500 C1
production hours: 93168
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei KM 500-3500 C1

General Data

Measurements width: 7650 mm
Measurements depth: 2330 mm
Measurements height: 2550 mm
Machine weight: 24000 kg

Control Unit

Model: MC3-F
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 90 mm
Stroke volume: 1953 cm3 CM³
Injection pressure: 1742 bar

Clamping unit

Clamping force: 5000 kN
Opening stroke: 1650 mm
Ejector stroke: 250 mm

Media

Power consumption: 90 kW
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Pump overhauled at 60000 hours
- - New ipc at 90727 hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
