➤ Used Krauss Maffei 650-2700 C2 For Sale | gindumac.com

Show in original language

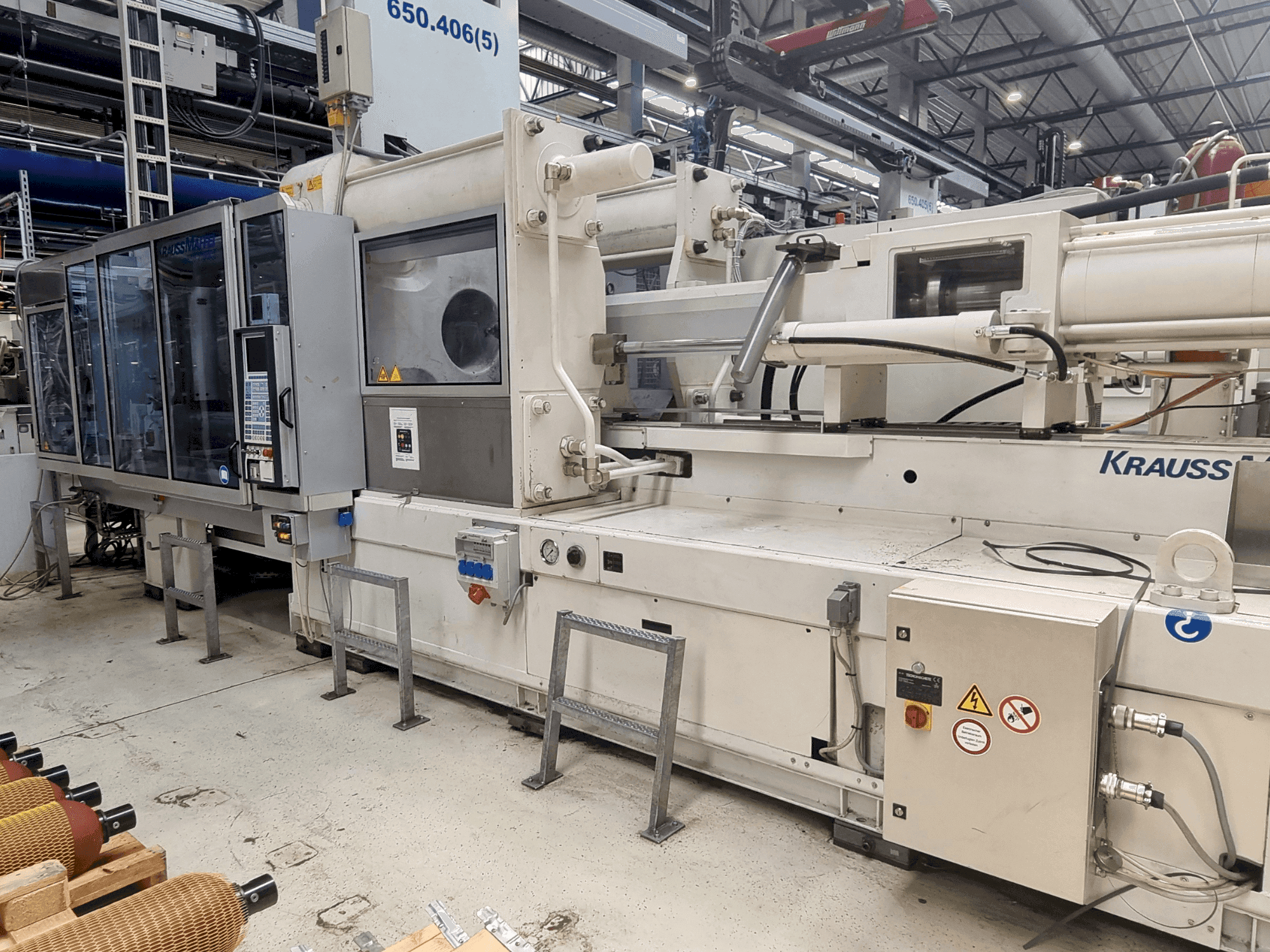

This hydraulic injection moulding machine was manufactured in 2004 by Krauss Maffei. It features a clamping force of 6500 kN and a screw diameter of 80 mm, capable of handling significant mould weights up to 11400 kg. The machine includes a horizontal assembly for efficient operation and a needle shut-off nozzle for precise injection control. A great opportunity to buy this Krauss Maffei 650-2700 C2 hydraulic injection moulding machine. For more information about this hydraulic injection moulding machine, please reach out to us.

Overview

brand: Krauss Maffei
year: 2004
MODEL: 650-2700 C2
production hours: 30870
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - Krauss Maffei 650-2700 C2

Control Unit

Model: 2K

Injection Unit

Screw diameter: 80 mm / 35 mm
Stroke volume: 1433 cm³ / 155 cm³
Injection pressure: 1800 bar
Plasticizing rate max.: 108 g/s / 22 g/s

Clamping unit

Clamping force: 6500 kN
Opening stroke: 1300 mm
Max open daylight: 1842 mm
Distance between bars: 1000 mm
Mould height min: 542 mm

Additional equipment

- Needle shut-off nozzle (Injection Unit 1): Yes
- Centering bar: Tecnomagnete

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Plasticising stroke (injection unit 1): 287 mm / plasticising stroke (injection unit 2): 162 mm
- - Nozzle radius (injection unit 1): 35 mm / nozzle radius (injection unit 2): 19 mm
- - High between tie bars: 930 mm
- - Mould weight max: 11400 kg // max mould weight with plate: 7600 kg
- - Accumulator number: 1
- - Machine pre-fusing current: 250 a
- - Heater pre-fusing current: 315 a
- - Amount of oil: 1240 liters
- - Clamping screw thread bwap: 16113. 56. 00
- - Clamping screw thread fwap: 16112. 55. 00

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
