- Krauss Maffei 550-4300 GX Injection Moulding Machine

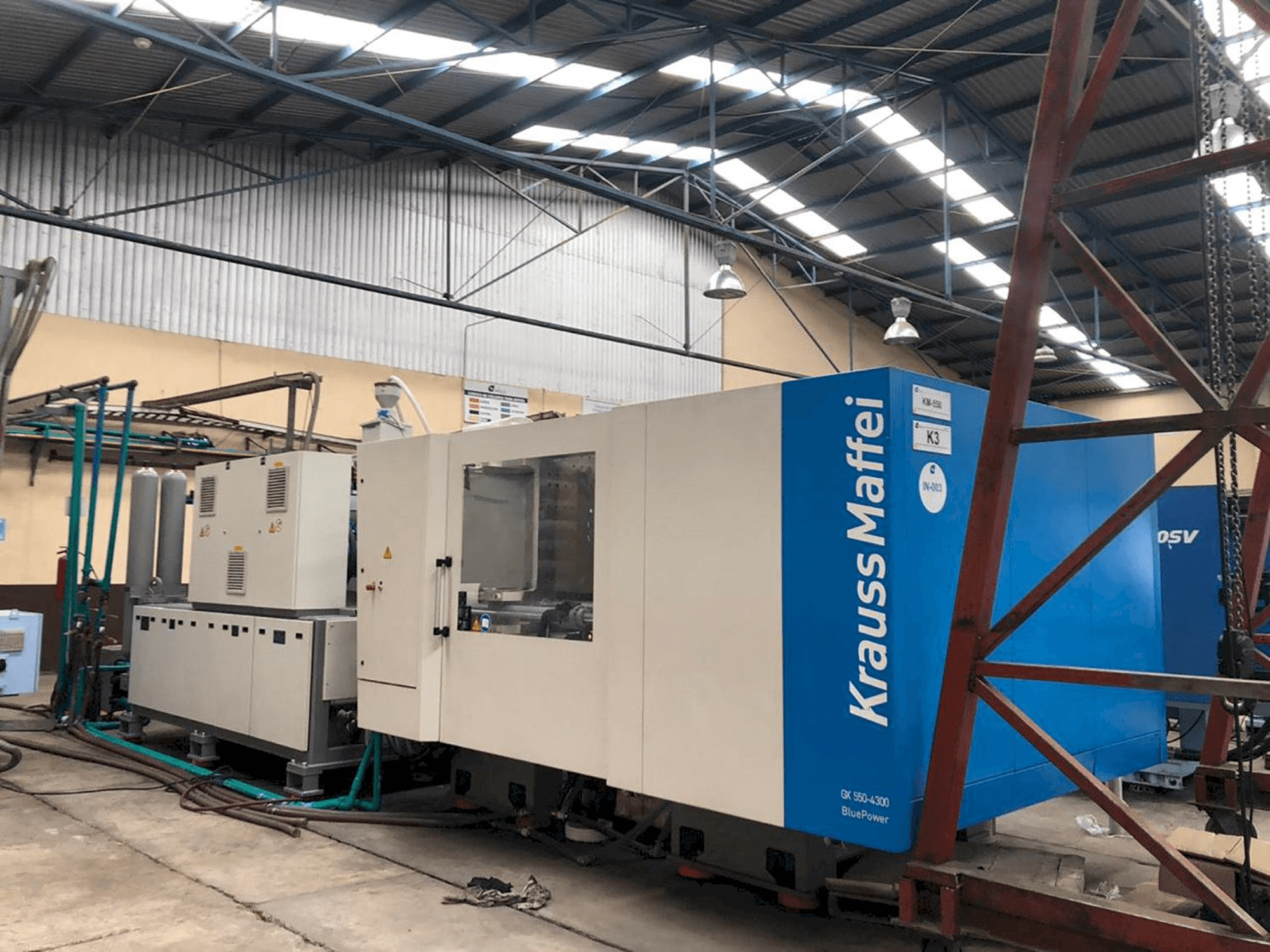

This Krauss Maffei 550-4300 GX Injection Moulding Machine was made in the year 2013 in Germany. It is equipped with a Krauss Maffei MC6 control unit. It has been working for 32070 hours, from which only 31105 have been production hours. This machine incorporates a clamping force of 5500 kN, and an injection pressure of 1839 bar.
Overview
- brand: Krauss Maffei
- year: 2013
- MODEL: 550-4300 GX
- production hours: 31105
- application type: Injection Moulding
- Location: Mexico
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
- control unit brand: KRAUSS MAFFEI
Technical Information - Krauss Maffei 550-4300 GX
General Data
- Measurements width: 8080 mm
- Measurements depth: 2800 mm
- Measurements height: 2390 mm
- Machine weight: 27500 kg
Control Unit
- Model: MC6
- Brand: KRAUSS MAFFEI
Injection Unit
- Screw diameter: 90 mm
- Injection pressure: 1839 bar
- Nozzle pressure: 129 kN
Clamping unit
- Clamping force: 5000 - 5500 kN
- Opening stroke: 1350 mm
- Mould height min: 400 mm
- Mould height max: 950 mm
- Size of mold platens: 1430 x 1350 mm
- Ejector stroke: 250 mm
- Ejector force for / back: 95/49 kN
Media
- Main electronic connection: 440 V 60 Hz
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
