Krauss Maffei 175-1400 C2 Injection Moulding Machine

Show in original language

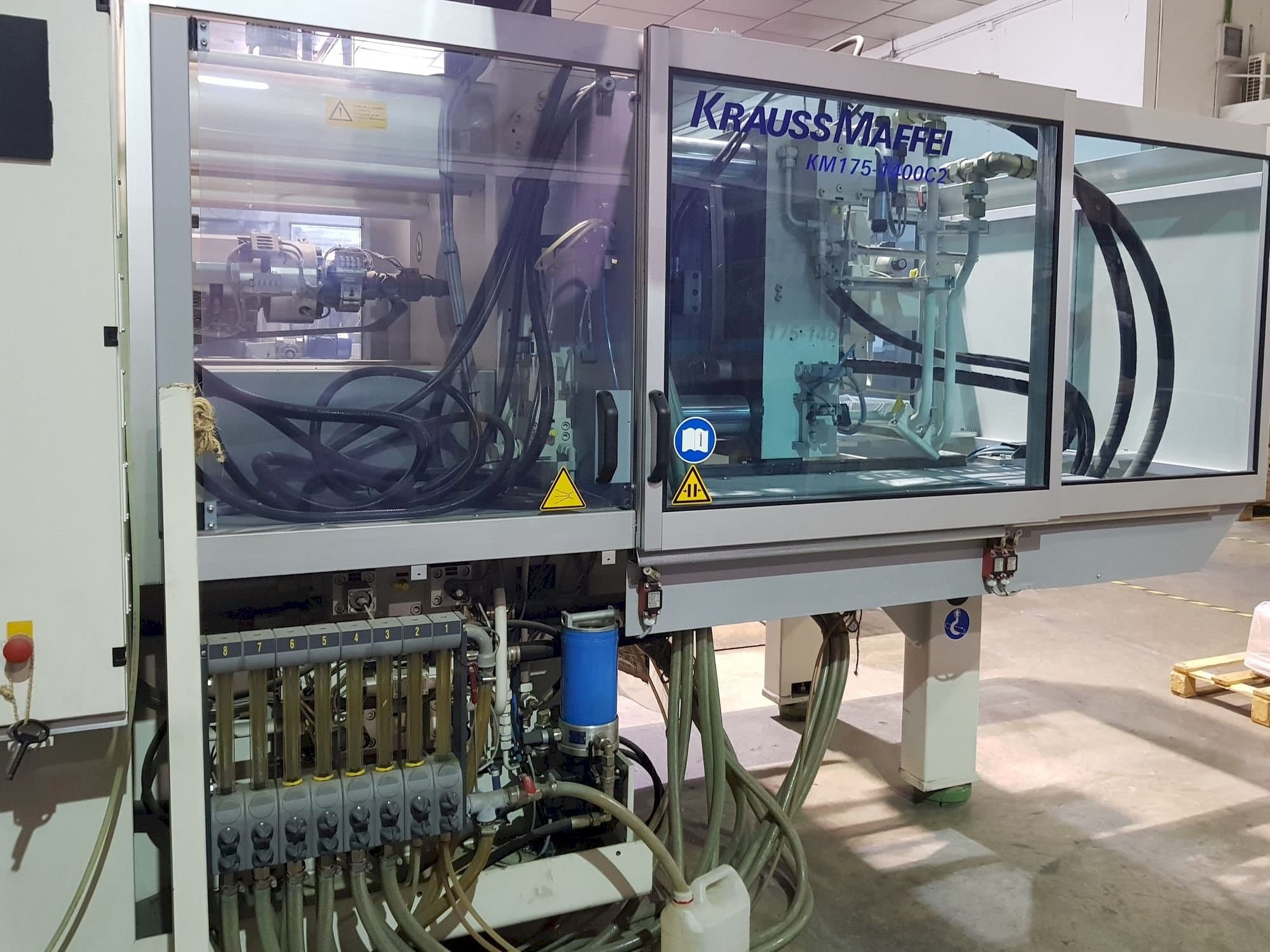

This Krauss Maffei 175-1400 C2 Injection Moulding Machine was built in 2005 in Germany and has been working for 8198 hours. It is operated through a control unit of the same brand. It can work with a clamping force of 1750 kN. Several additional equipment comes with this machine, including a LUXOR S 600 dry air generator.

Overview

brand: Krauss Maffei
year: 2005
MODEL: 175-1400 C2
production hours: 8198
application type: Injection Moulding
Location: Spain
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 175-1400 C2

General Data

Measurements width: 5690 mm
Measurements depth: 1900 mm
Measurements height: 2240 mm
Machine weight: 9525 kg

Control Unit

Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 60 mm
Shot weight: 618 g
Stroke volume: 679 CM³
Injection pressure: 2000 bar

Clamping unit

Clamping force: 1750 kN
Opening stroke: 700 mm
Mould height min: 350 mm
Ejector stroke: 200 mm
Ejector force for / back: 58/28 kN

Additional equipment

- Dry air generator LUXOR S 600
- Drying Hopper LBS 1200, LBS 150L
- Drying funnel B-15/30/60
- Suction box SB 101-K
- Aspiring conveyor METRO 2HLB
- Aspiring conveyor METRO HLB
- Fan Protector filter GSF-0.5

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
