Krauss Maffei 150-700 C2 Injection Moulding Machine

Show in original language

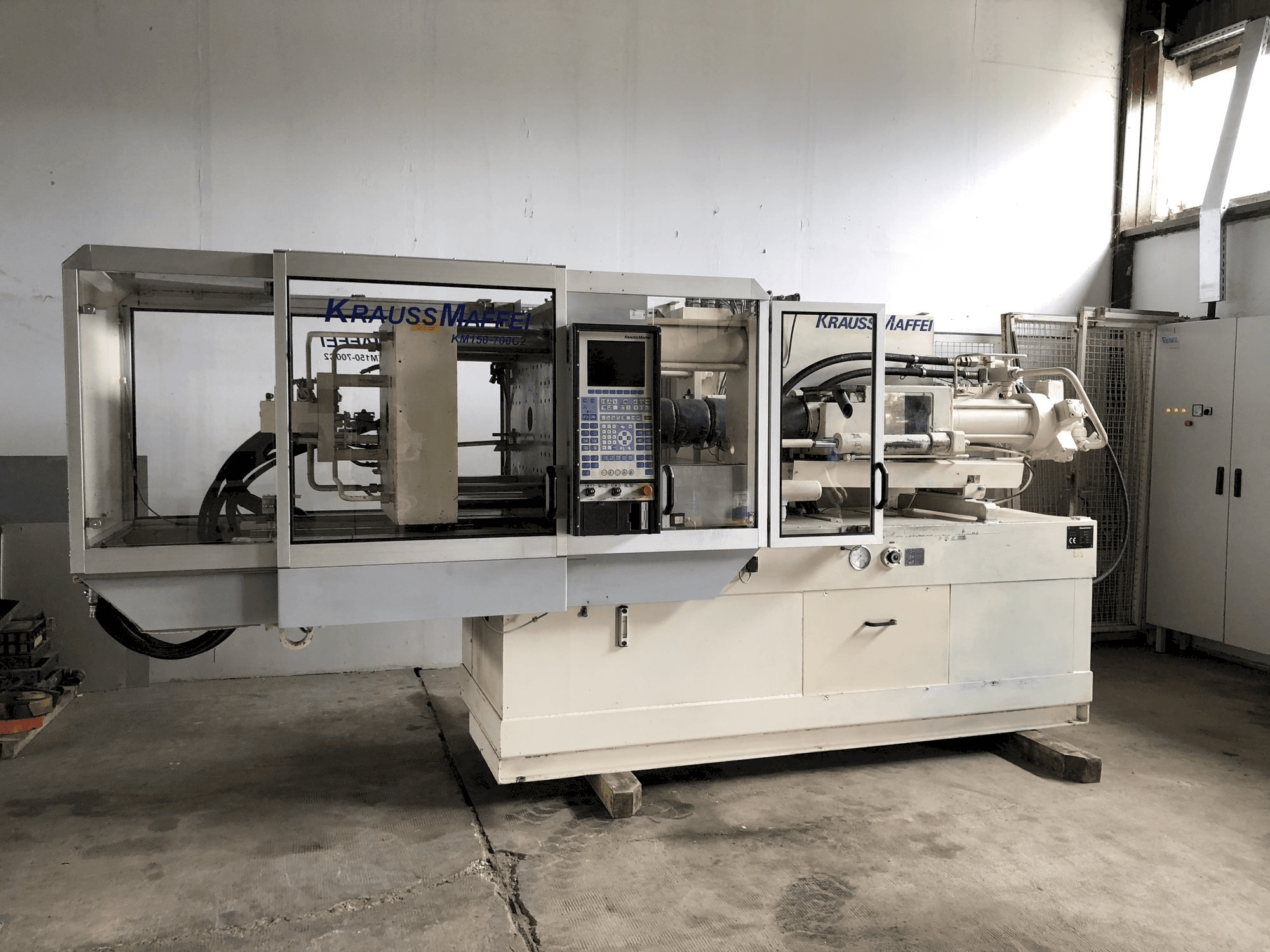

This Krauss Maffei 150-700 C2 Injection Moulding Machine from 2001 was built in Germany. Equipped with a Krauss Maffei Control unit and an Euromap 12 interface, this machine can operate with a clamping force of 1500 kN. It incorporates a core pull and an air valve as well.

Overview

brand: Krauss Maffei
year: 2001
MODEL: 150-700 C2
application type: Injection Moulding
Location: Serbia
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 150-700 C2

General Data

Measurements width: 4660 mm
Measurements depth: 1510 mm
Measurements height: 2190 mm
Machine weight: 7100 kg

Control Unit

Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 45 mm
Shot weight: 278 g PS
Stroke volume: 305 CM³
Injection pressure: 2336 bar
Screw speed: 27 g/s
Heating capacity: 13 kW
Nozzle pressure: 50 kN

Clamping unit

Clamping force: 1500 kN
Opening stroke: 600 mm
Max open daylight: 900 mm
Distance between bars: 500 x 500 mm
Mould height min: 300 mm
Size of mold platens: 780 X 790 mm
Ejector stroke: 150 mm
Ejector force for / back: 22/10 kN

Additional equipment

- DOUBLE PUMP FOR PARALLEL MOVEMENTS
- ACCUMULATOR FOR SPEED 300MM/SEC
- Hotrunner
- corepull
- air valve
- euromap 12

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
