- Krauss Maffei 1300-14000 MX IMC Injection Moulding Compounder

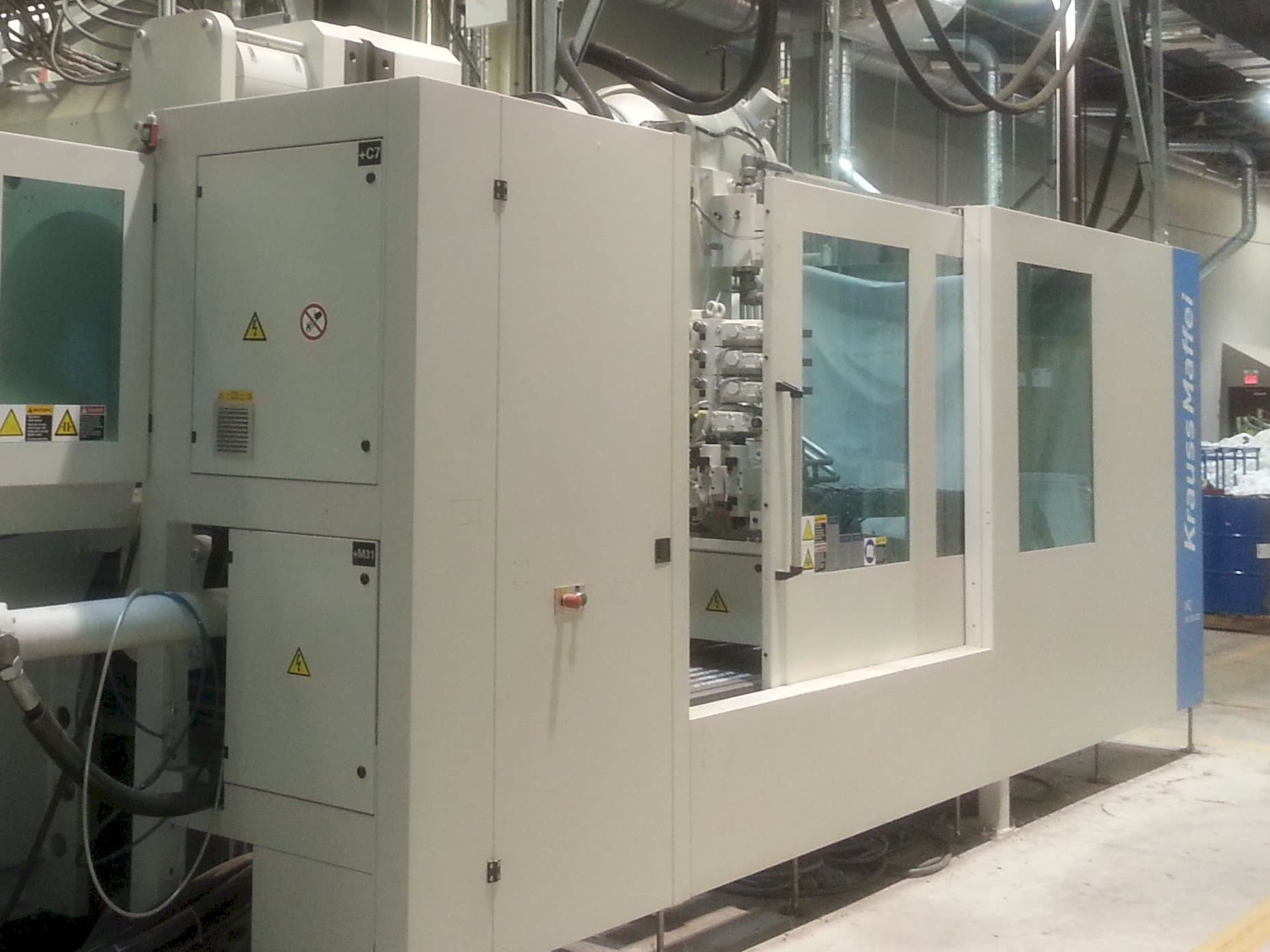

This Krauss Maffei 1300-14000 MX IMC Injection Moulding Compounder was manufactured in 2012 in Germany. This powerful setup consists of an Injection Moluding Unit and an attached Twin Screw Compounder that allows a continuous process shot process. The IMC is unique in combining two value-adding processes – compounding and injection moulding – in one machine. It is an engineering innovation that stands out on quality, cost and flexibility. The IMC successfully teams up compounding and extrusion, a continuous process, with injection moulding, a discontinuous process. Processors benefit from the best of both worlds.
Overview
- brand: Krauss Maffei
- year: 2012
- MODEL: 1300-14000 MX IMC
- production hours: 100
- application type: Injection Moulding
- Location: Canada
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - Krauss Maffei 1300-14000 MX IMC
General Data
- Measurements width: 13200 mm
- Measurements depth: 3700 mm
- Measurements height: 6100 mm
- Machine weight: 78017 kg
Injection Unit
- Screw diameter: 115 mm
- Shot weight: 4487 PP (g)
- Stroke volume: 6232 CM³
- Injection pressure: 2178 bar
- Plasticizing rate max.: 902 cm3/s
- Nozzle pressure: 166 kN
Clamping unit
- Clamping force: 13000 kN
- Opening stroke: 910 kN
- Max open daylight: 3050 mm
- Distance between bars: 1550x1250 mm
- Mould height min: 700-1400 mm
- Mould height max: 2350 mm
- Size of mold platens: 2210x1910 mm
- Ejector stroke: 350 mm
- Ejector force for / back: 250/125 kN
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
