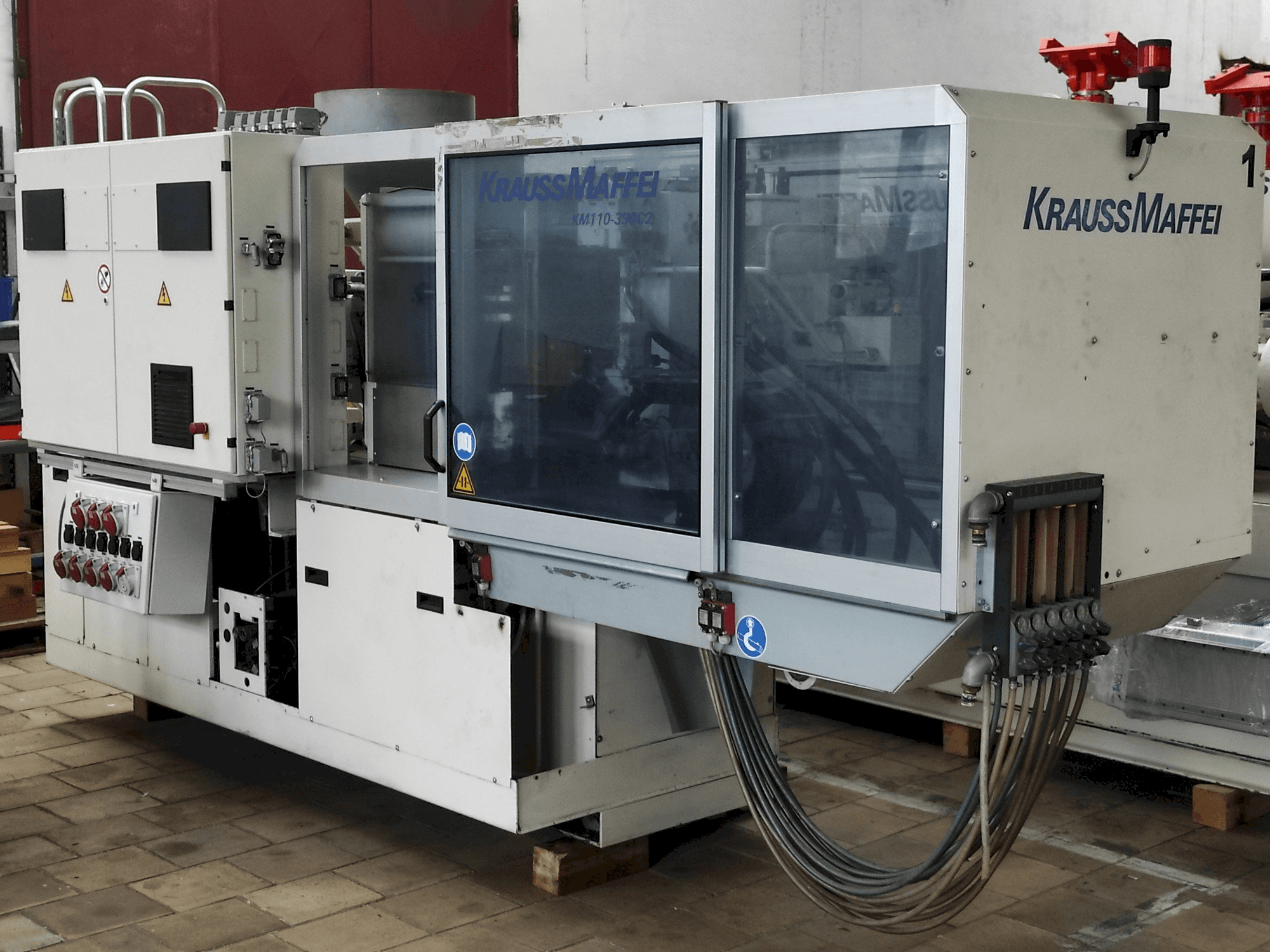

Krauss-Maffei 110 - 390 C2 Injection moulding machine

Show in original language

This Krauss-Maffei 110 - 390 C2 Injection moulding machine was manufactured in the year 2004 in Germany and has 87900 production hours. It is equipped with a KraussMaffei MC4 control unit. The machine has a clamping force of 1100 kN and a screw diameter of 35 mm.

Overview

brand: Krauss Maffei
year: 2004
MODEL: 110 - 390 C2
production hours: 87900
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 110 - 390 C2

General Data

Measurements width: 4240 mm
Measurements depth: 1510 mm
Measurements height: 2180 mm
Machine weight: 5800 kg

Control Unit

Model: MC4
CNC language customizable: Yes
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 35 mm
Stroke volume: 156 CM³
Injection pressure: 2429 bar

Clamping unit

Clamping force: 1100 kN
Max open daylight: 900 mm
Distance between bars: 470 x 470 mm
Mould height min: 300 mm
Size of mold platens: 745 x 770 mm
Ejector stroke: 150 mm
Ejector force for / back: 22/10 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Robot interface as per euromap 18, euromap 67
- - 2 zones hotrunner controller
- - Interface for conveyor
- - 2+2 core pullers
- - 6-fold waterbattery
- - Pneumatic valve
- - Accumulator for increased injection pressure
Qualitative Machine Benefits:
- - Regularly serviced and maintained by kraussmaffei

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
