KOVOSVIT MAS - SP 180 SMCCZ-TUR-KOV-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

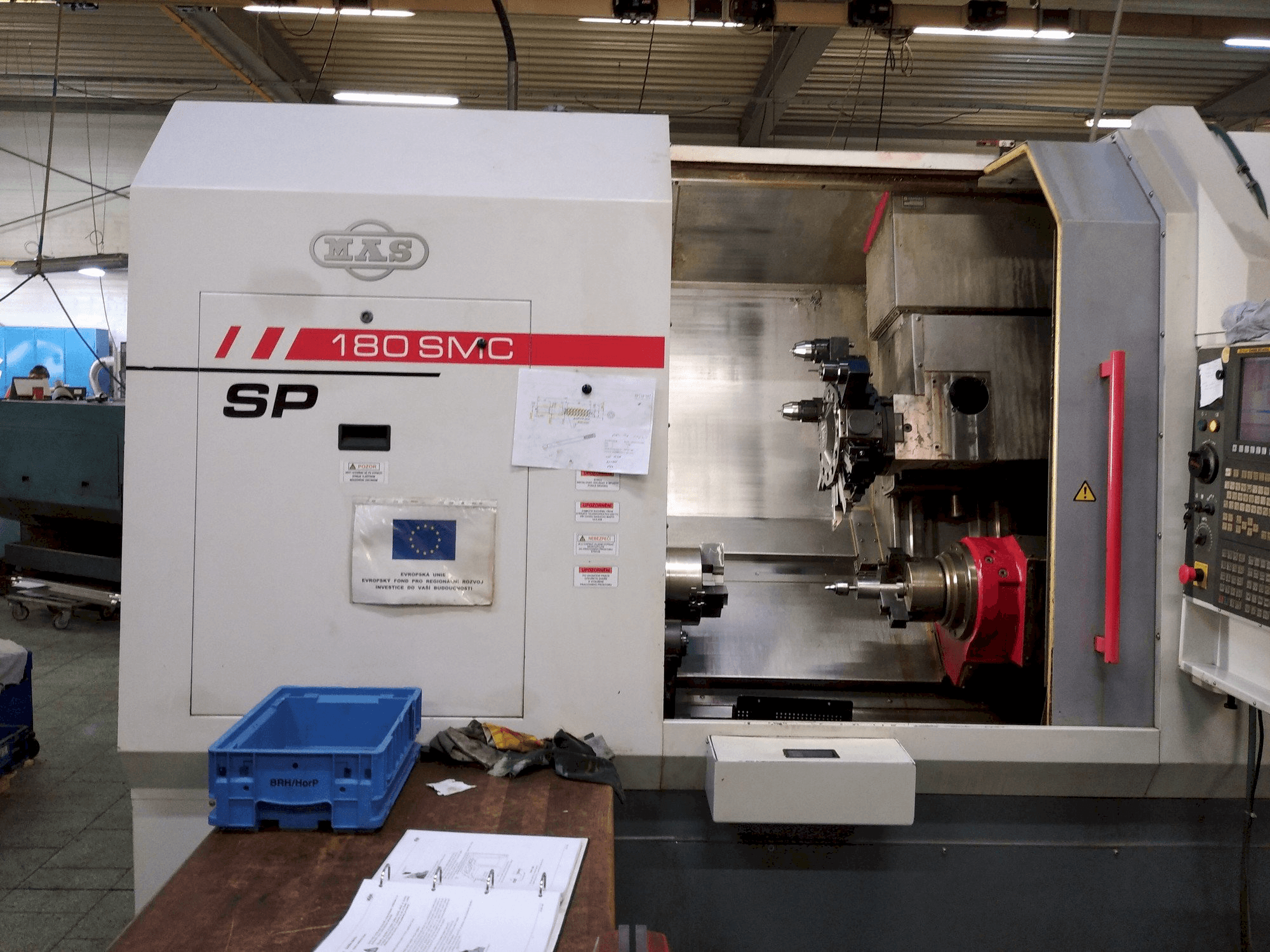

KOVOSVIT SP 180 SMC Lathe

Show in original language

This KOVOSVIT SP 180 SMC Lathe was built in the year 2011. It has been working for 14164 hours, of which 2915 are spindle hours. This 3 axis machine is equipped with a Fanuc Series 31i. This 2 spindle machine can operate with a spindle speed up to 6000 rpm.

Overview

brand: KOVOSVIT MAS
year: 2011
MODEL: SP 180 SMC
production hours: 14164
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: Fanuc

Technical Information - KOVOSVIT MAS SP 180 SMC

General Data

Measurements width: 3875 mm
Measurements depth: 2122 mm
Measurements height: 2345 mm
Machine weight: 7600 kg

Control Unit

Brand: Fanuc
Model: Series 31i

Main drive

Number of spindles: 2
Spindle speed range: 6000 1/MIN

Movement

X-AXIS Movement: 113 mm
Z-AXIS Movement: 480 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning diameter 180 mm
- - Swing diameter over bed 530 mm
- - Max. Turning length 370 mm
- - Max. Bar diameter through spindle 43 mm
- - Spindle a5 (16. 8/22 kw/6000 rpm)
- - Subspindle a5 (7. 5/9 kw, 6000 rpm)
- - C axis
- - Turret 12 positions , vdi 30, milling speed 5000 rpm
Qualitative Machine Benefits:
- - Very good condition
- - Low hours
- - Bought as new in 2015

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
