- KOVOSVIT MAS MCV 1016 Quick Vertical Machining Center

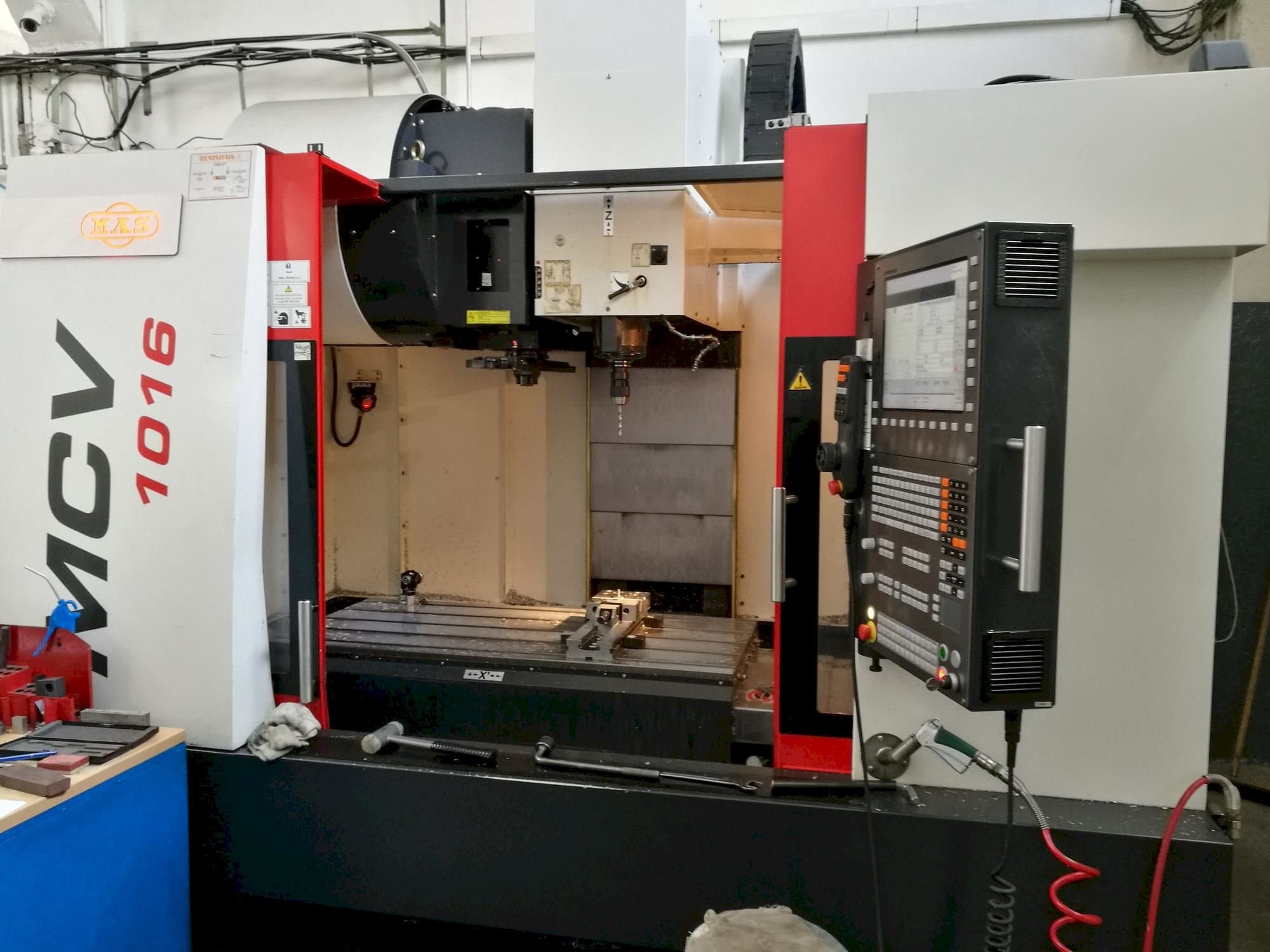

This KOVOSVIT MAS MCV 1016 Quick Vertical Machining Center was built in the year 2017 in Czech Republic. It has a working record of only 7074 hours, which 2337 are spindle hours. It is equipped with a HEIDENHAIN iTNC 530 HSCI control unit. This machine can work with a spindle speed up to 10000 rpm. It presents very good conditions.
Overview
- brand: KOVOSVIT MAS
- year: 2017
- MODEL: MCV 1016 Quick
- production hours: 7074
- application type: Milling
- Location: Slovakia
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Heidenhain
Technical Information - KOVOSVIT MAS MCV 1016 Quick
General Data
- Measurements height: 2937 mm
- Machine weight: 5500 kg
Control Unit
- Brand: Heidenhain
- Model: iTNC 530 HSCI
Main drive
- Number of spindles: 1
- Spindle speed range: 10000 1/MIN
Movement
- X-AXIS Movement: 1016 mm
- Y-AXIS Movement: 610 mm
- Z-AXIS Movement: 710 mm
Workpiece
- Workpiece weight: 700 kg
Table
- Outer length: 1300 mm
- Outer width: 600 mm
Tools
- Slots in storage: 24
- Type of tool holder: ISO 40
Additional Information
- Technical Machine Benefits:
- - Renishaw tool and workpiece probe
- - Internal cooling 20 bar
- - Outer tool air blow
- - Manual rinsing of workspace
- Qualitative Machine Benefits:
- - Very good condition
- - Low hours
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
