KASTO win A 3.3 Sawing Machine

Show in original language

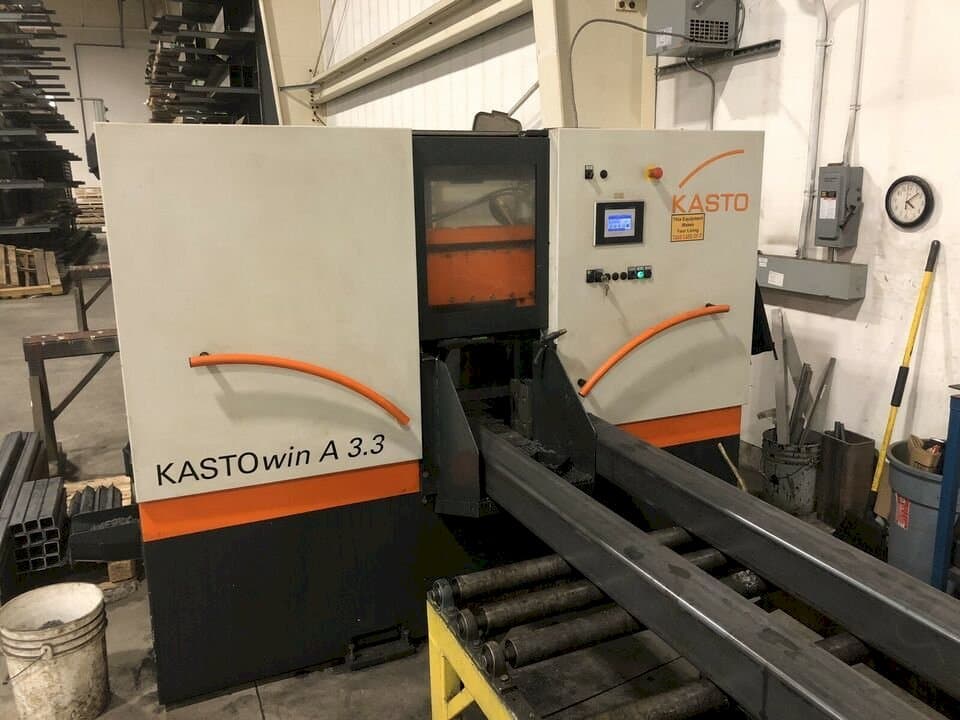

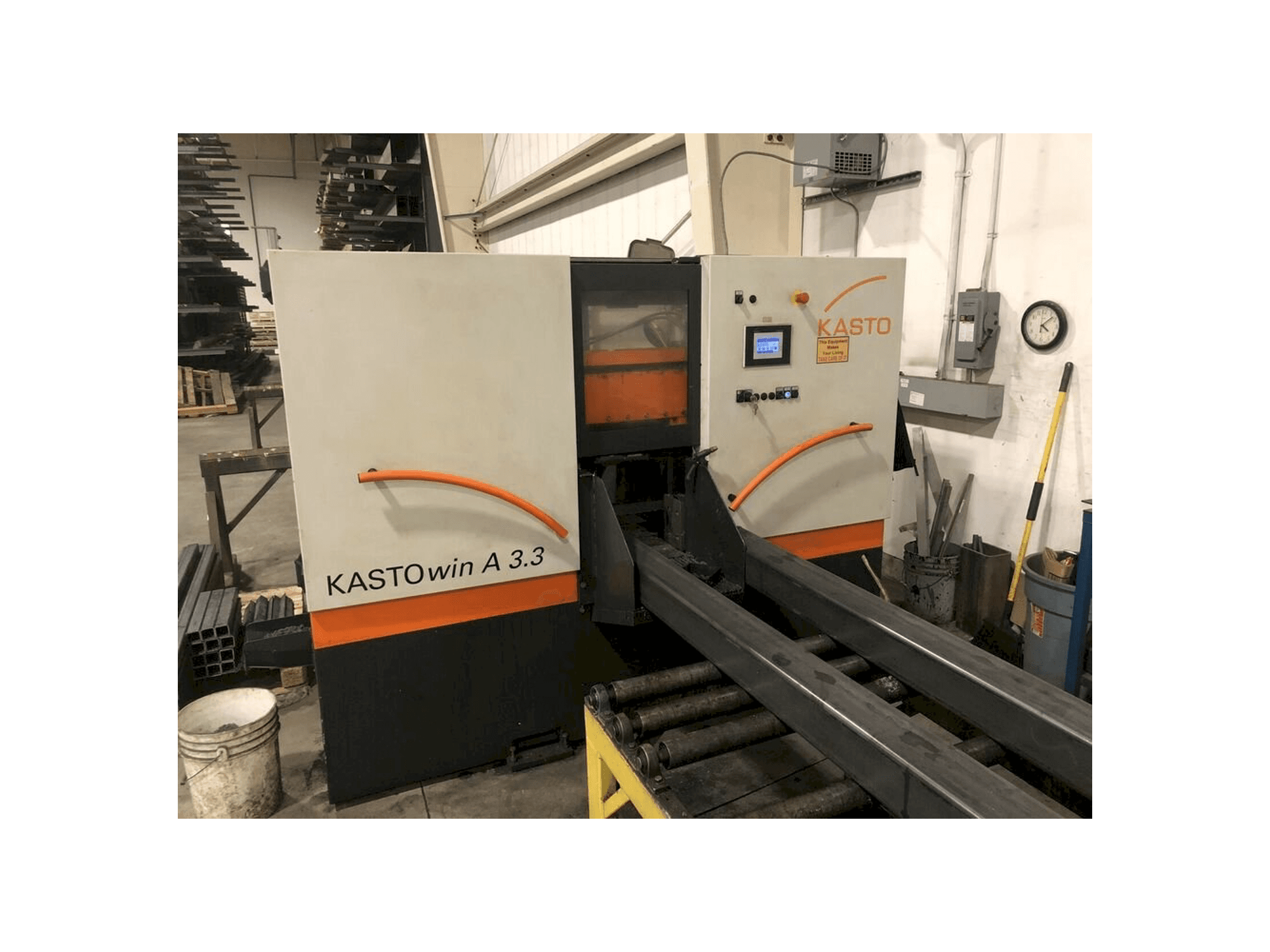

This KASTO win A 3.3 Sawing Machine from the year 2014 was manufactured in Germany. It is operated through a KASTO Smart touch screen control unit. This machine can operate with a cutting diameter 330 mm.

Overview

brand: KASTO
year: 2014
MODEL: win A 3.3
application type: Sawing
Location: Canada
machine type: Metal Band Saw
availability: Sold
control unit brand: Kasto

Technical Information - KASTO win A 3.3

General Data

Measurements width: 1358 mm
Measurements depth: 2329 mm
Measurements height: 325 mm
Machine weight: 2200 kg

Control Unit

Brand: Kasto
Model: Smart

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cutting range 90 degree round: 330 mm
- - Cutting range 90 degree flat (w x h): 350 x 330 mm
- - Clamping range: 349 mm
- - Smallest dimension to be cut: 9,9 x 9,9 mm
- - Shortest remnant length in auto operation: 60 mm
- - Shortest remnant length individual cut: 9,9 mm
- - Material feed length, individual cut: 500 mm
- - Multiple feed: 10000 mm
- - Dimensions of saw blade: 427 mm x 41 mm x 1,27 mm
Qualitative Machine Benefits:
- - Kasto smart touch screen control with job and tool management
- - Machine enclosure
- - Ball screw downscrew

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
