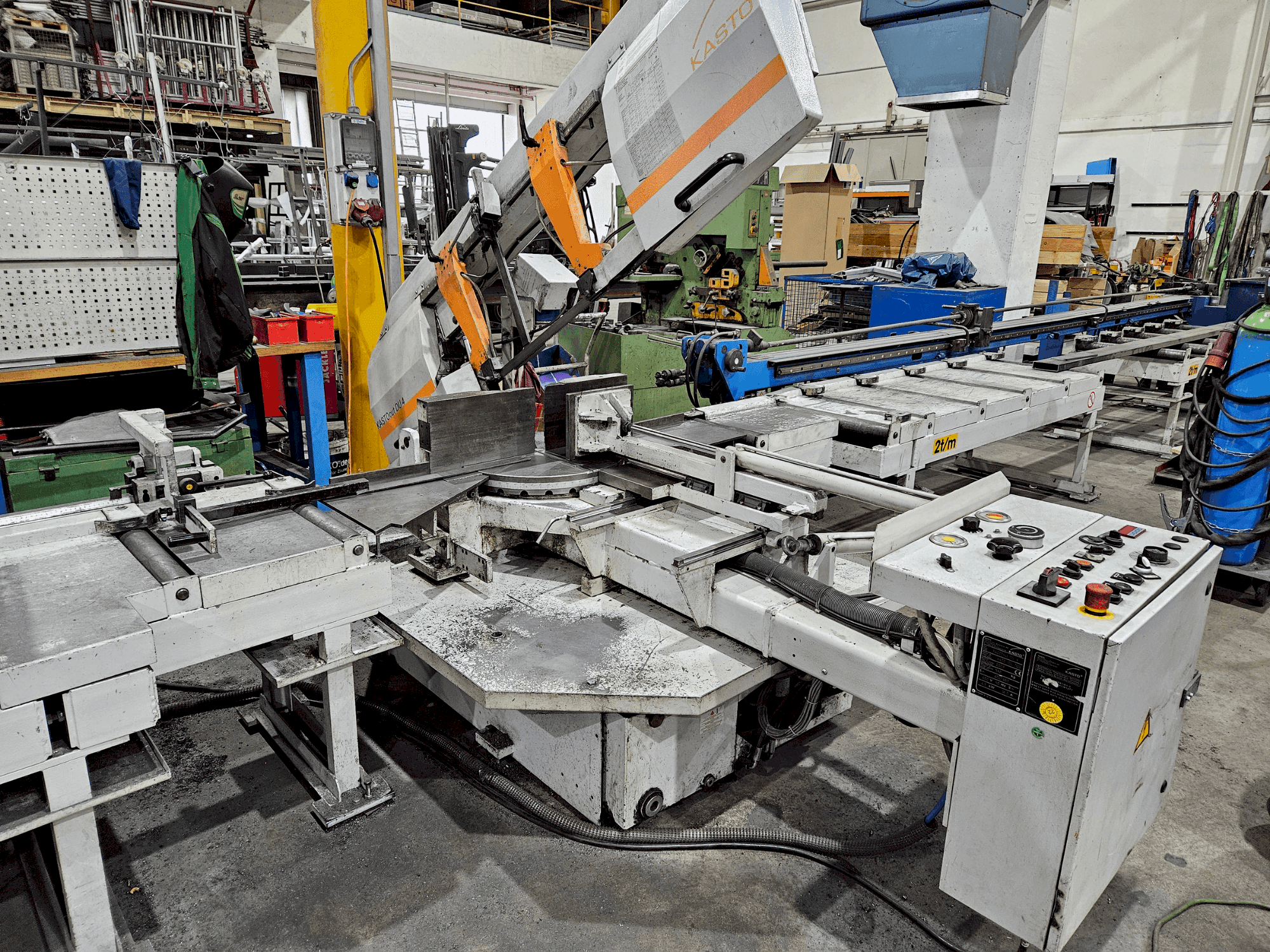

KASTO - cut DU 4DE-SAW-KAS-2009-00002

Additional equipment

• - Hydraulic material clamping
• - Coolant system with 2 coolant nozzles
• - Saw blade cleaning with easily replaceable plastic brush

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Mitre adjustment - 60°/ + 60°
  • - Cutting speed: infinitely variable from 20 to 110 m/min
  • - Cutting feed: infinitely variable
  • - Saw blade guide: carbide, replaceable
  • - Saw blade tensioning: hydraulic
  • - Cutting ranges (standard) in mm approx:mitre angle 0° (90°) ± 45° ± 60° round: Ø 400 mm, 320 mm, 250 mm square: 320 x 320 mm, 320 mm, 220 x 220 mm flat wxh: 520 x 320 mm, 320 x 320 mm, 220 x 320 mm
  • - Minimum diameter to be sawn: 10 mm
  • - Minimum length to be sawn: 10 mm
  • - Shortest remaining piece length: 45 mm
  • - Maximum material weight: 400 kg/m
• Qualitative Machine Benefits:
  • - Coolant filling quantity: approx. 65 litres
  • - Coolant pump capacity: approx. 25 l/min

Extra information

• - Machine still under power
