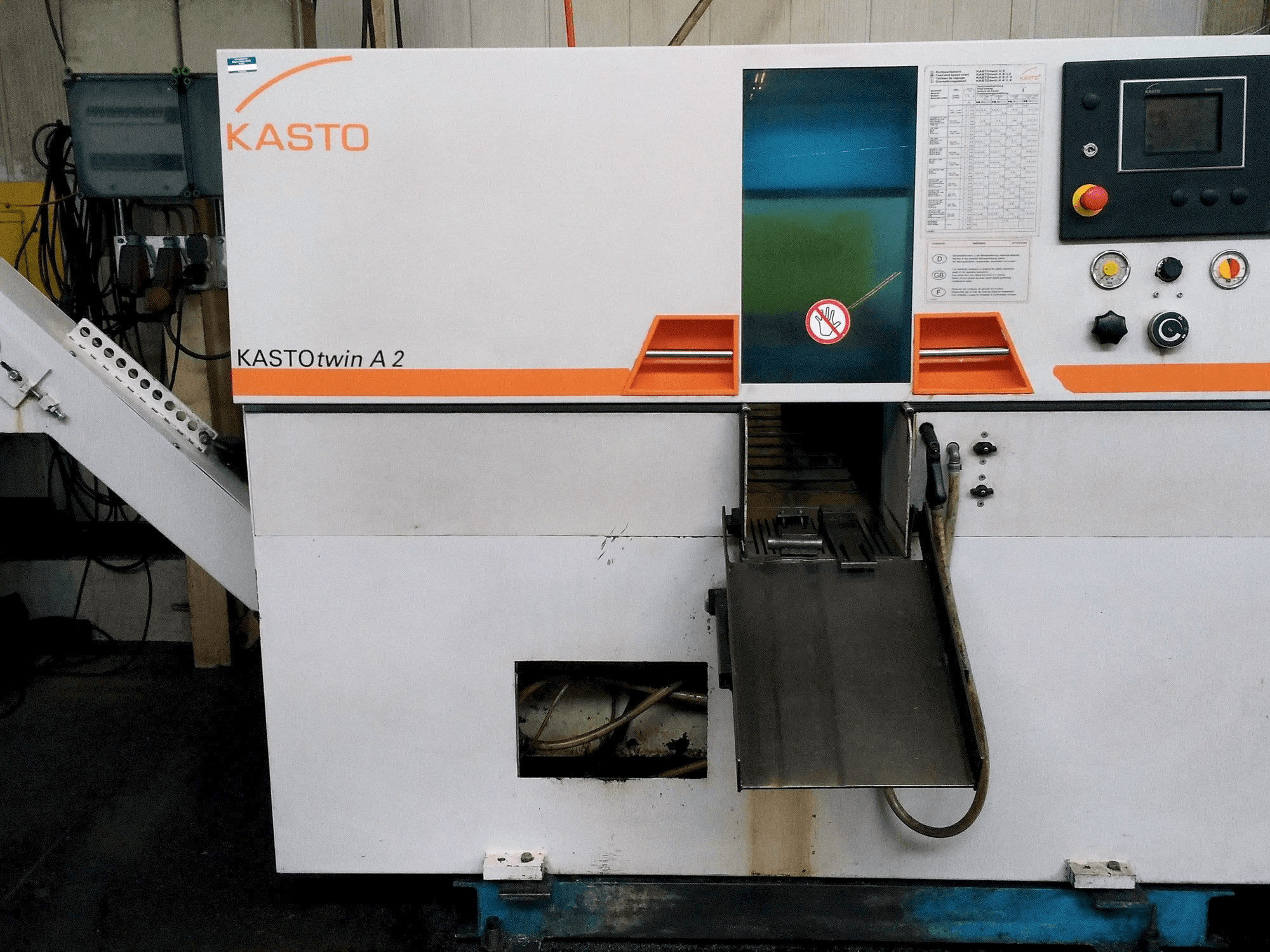

This KASTO twin A2 Sawing Machine was built in Germany in the year 2008. This machine can operate with a cutting speed 20-110 rpm (steplessly adjustable) and a clamping pressure 20-60 bar (hydraulic, steplessly adjustable). It is still in use and works perfectly. In addition, spare parts as saw bands and brushes are still available.

Overview

brand: KASTO
year: 2008
MODEL: twin A2
application type: Sawing
Location: Germany
machine type: Metal Band Saw
availability: Sold

Technical Information - KASTO twin A2

General Data

Measurements width: 2475 mm
Measurements depth: 1755 mm
Measurements height: 1570 mm
Machine weight: 1700 kg

Workpiece

Workpiece weight: 1000 kg/m

Media

Main electronic connection: 400 v 50 hz
Power consumption: 5 kw
Chip conveyor: Yes

Additional equipment

- saw bands
- brushes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Smallest diameter to be sawn 10 mm
- - Shortest lenght to be sawn 6 mm
- - Shortest remaining piece lenght in single cut 15 mm
- - Shortest remaining piece lenght in automatic cut 100 mm
- - Feed lenght: single 750 mm / multiple 19999. 9 mm
- - Cutting speed: 20-110 m/min (steplessly adjustable)
- - Clamping pressure: 20-60 bar (hydraulic, infinitely adjustable)
- - Saw band dimensions l x h x w: 4530 x 34 x 1. 1 mm
- - Saw band guide: carbide, interchangeable
- - Saw band tension: hydraulic
Qualitative Machine Benefits:
- - This machine is still in use and works perfectly

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
