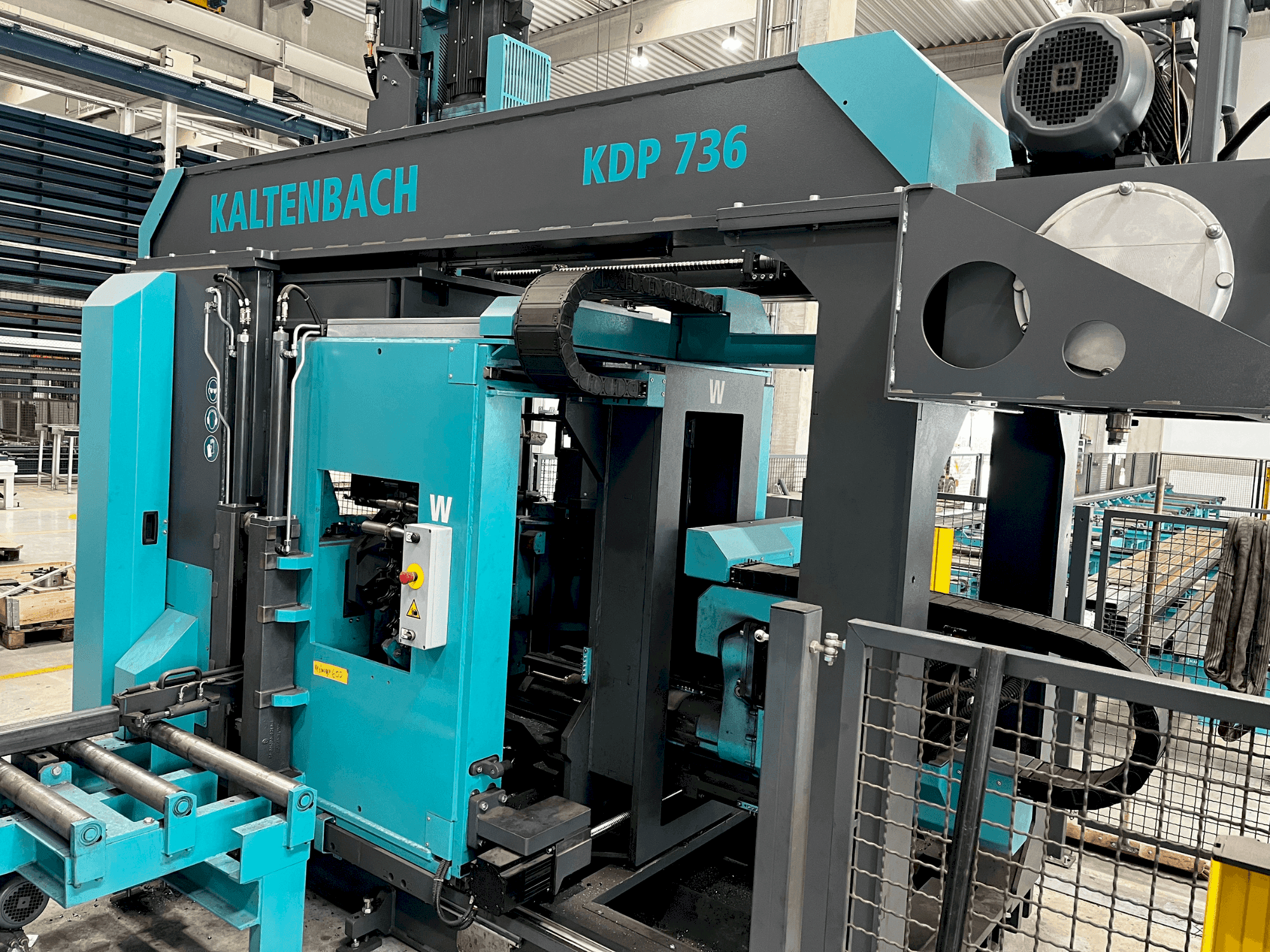

- ➤ Used KALTENBACH KBS 761/ KDP 736 | Saw For sale
This sawing machine was manufactured in 2019. The Kaltenbach KBS 761/KDP 736 features a bi-metal band saw blade M42 8,320x54x1.6mm with a cutting speed of 15-180m/min. It supports a saw band feed up to 600 mm/min and a rapid feed of 6,000 mm/min. Dimensions are 4,080x1,435x2,650 mm, weighing approximately 5,500 kg. Ideal for diverse cutting tasks, buy this Kaltenbach KBS 761/KDP 736 sawing machine. Contact us for further details regarding this sawing machine.
Overview
- brand: KALTENBACH
- year: 2019
- MODEL: KBS 761/ KDP 736
- application type: Sawing
- Location: Germany
- machine type: Band Saw
- availability: Sold
- control unit brand: Sawing Unit
Technical Information - KALTENBACH KBS 761/ KDP 736
General Data
- Measurements width: 1435 mm
- Measurements depth: 4080 mm
- Measurements height: 2650 mm
- Machine weight: 5500 kg
Control Unit
- Brand: Sawing Unit
- Model: KBS 761
Additional Information
- Technical Machine Benefits:
- - Kdp 736: 6260 x 2100 x 3900 mm // kdp 736: approx. 12,400 kg
- - Saw blade dimensions: 8320 x 54 x 1. 6 mm
- - Cutting speed: 15-180 m/min // feed speed: 0-600 mm/min (infinitely adjustable) // rapid feed and return speed: 6000 mm/min
- - Working height above floor: 640 mm
- - Drilling unit (kdp 736): working area minimum dimensions (w x h): 50 x 5 mm/ working area maximum dimensions (w x h): 750 x 600 mm/ drilling diameter: 6. 8-50 mm
- - Spindle speeds: max. 3500 rpm (frequency-controlled) / torque: max. 544 nm / drilling feed speed: max. 2,000 mm/min/ rapid feed and return speed: max. 22,000 mm/min
- - Positioning speed of the machining axes: max. 22,000 mm/min / number of magazine positions: 36/ horizontal clamping force: max. 30,000 n / vertical clamping force: max. 4 x 10,000 n / working height above floor: 640 mm
- - Kbs 761: versatile cutting speed and adjustable feed for precision.
- - Kdp 736: high spindle speed, torque, and wide working area for versatility and efficiency.
- Qualitative Machine Benefits:
- - Kbs 761: precise control with adjustable feed speeds and rapid traverse.
- - Kdp 736: stable and precise machining with strong clamping force and frequency-controlled spindle speeds.
- - Operating hours main switch on: 10060, operating hours manual mode 4329, operating hours in automatic mode 2374
- - Special equipment optional for sale : 3 engraving tools, 8 saw bands, 1 special gripper for small profiles as an accessory for length stop, 1 camera system with one screen and 4 cameras.
- - 1 camera system with one screen and 4 cameras.
- - Operational Control: Infinitely adjustable feed on the control panel.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
