JUTEC 5030 Pipe Bending Machine

Show in original language

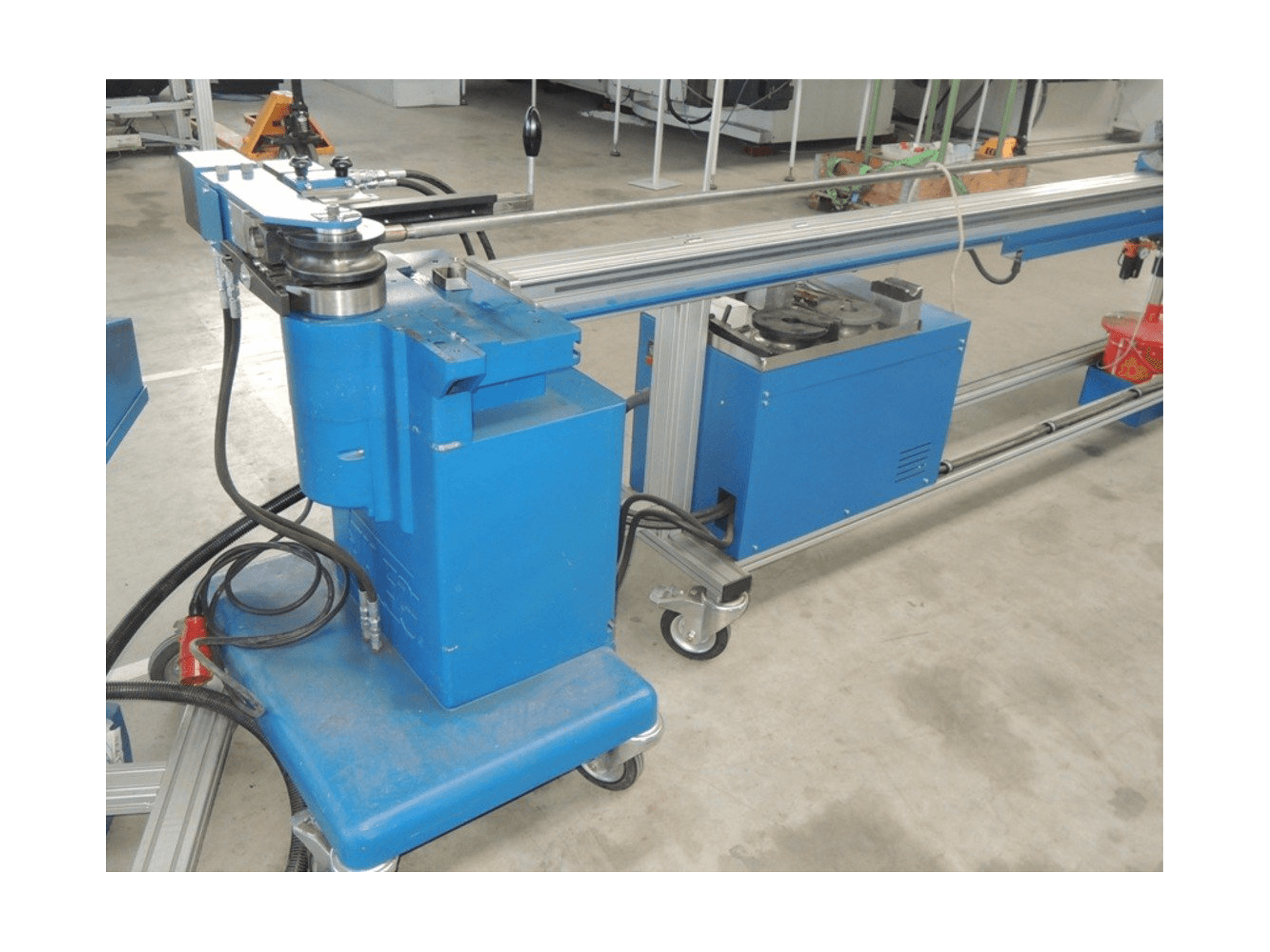

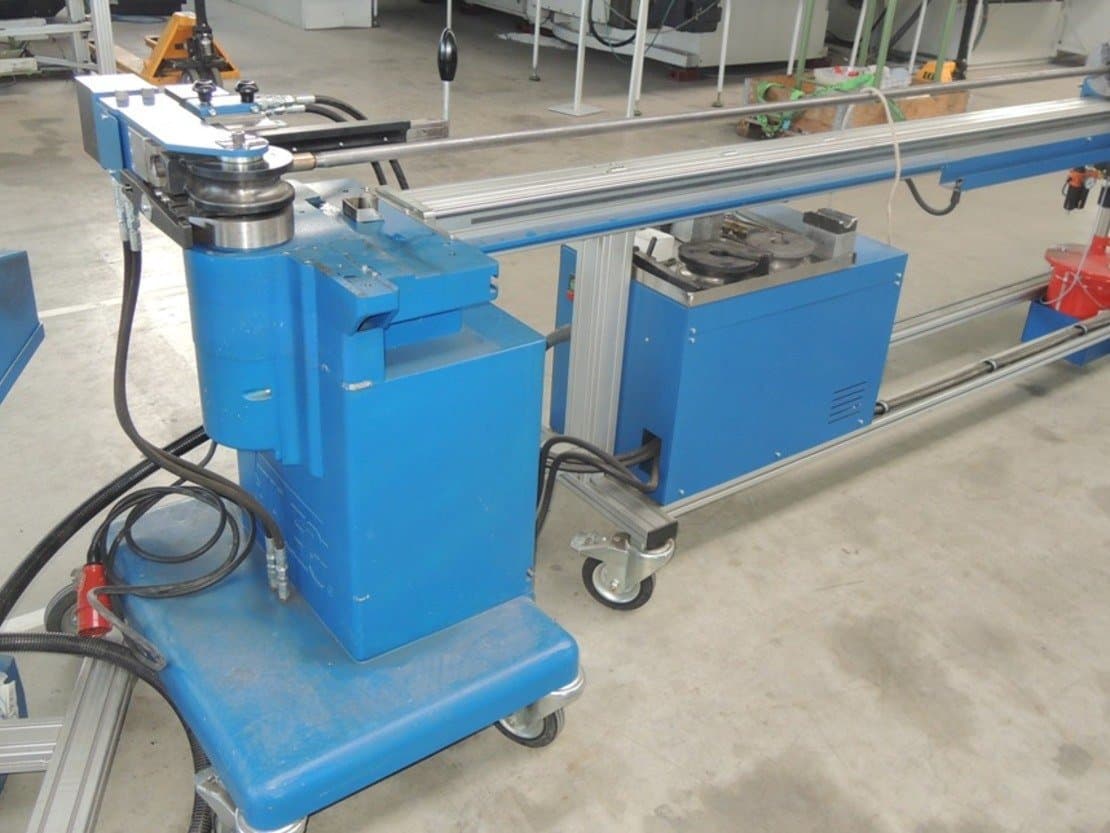

This JUTEC 5030 Pipe Bending Machine was built in the year 2004 in Germany. Equipped with a control unit of the same brand, this machine has a bending capacity up to 50 mm. The freestanding bending head can be easily converted for difficult geometries on right and left bending. Must be noted that the clamping pressure for the pipe clamping can be optimally adjusted. It presents excellent conditions, as it has been inspected by JUTEC on October 2018.

Overview

brand: JUTEC
year: 2004
MODEL: 5030
application type: Bending
Location: Macedonia
machine type: Press Brake
availability: Sold

Technical Information - JUTEC 5030

General Data

Measurements width: 3700 mm
Measurements depth: 800 mm
Measurements height: 1150 mm
Machine weight: 600 kg

Main drive

Bending length: 6-50 mm

Media

Main electronic connection: 400 V

Additional equipment

- 2 x 32 mm R70
- 1 x 32 mm R80
- 1 x 26.9 mm R55
- Sliding rail 33,7mm for 32mm stainless steel pipe
- MLF - running along sliding rail
- Bending mandrel diameter 27,2mm/ 28,0 mm/27,6mm with ball all for stainless steel
- 3x mandrel rod (diameter 15/25 standard mandrel and diameter 16 M16 for ball mandrel)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2 bending speeds
- - Mandrel carrier lengths 3000 mm
- - Maximum 180 ° bending result
- - Bending radius min / max: 10 mm / 140 mm
- - Total length of the mandrel of 3 m
Qualitative Machine Benefits:
- - Automatic lubrication system
- - Foot operating switch
- - Digital rotational positioning control
- - Programmable mandrel retrieve

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
