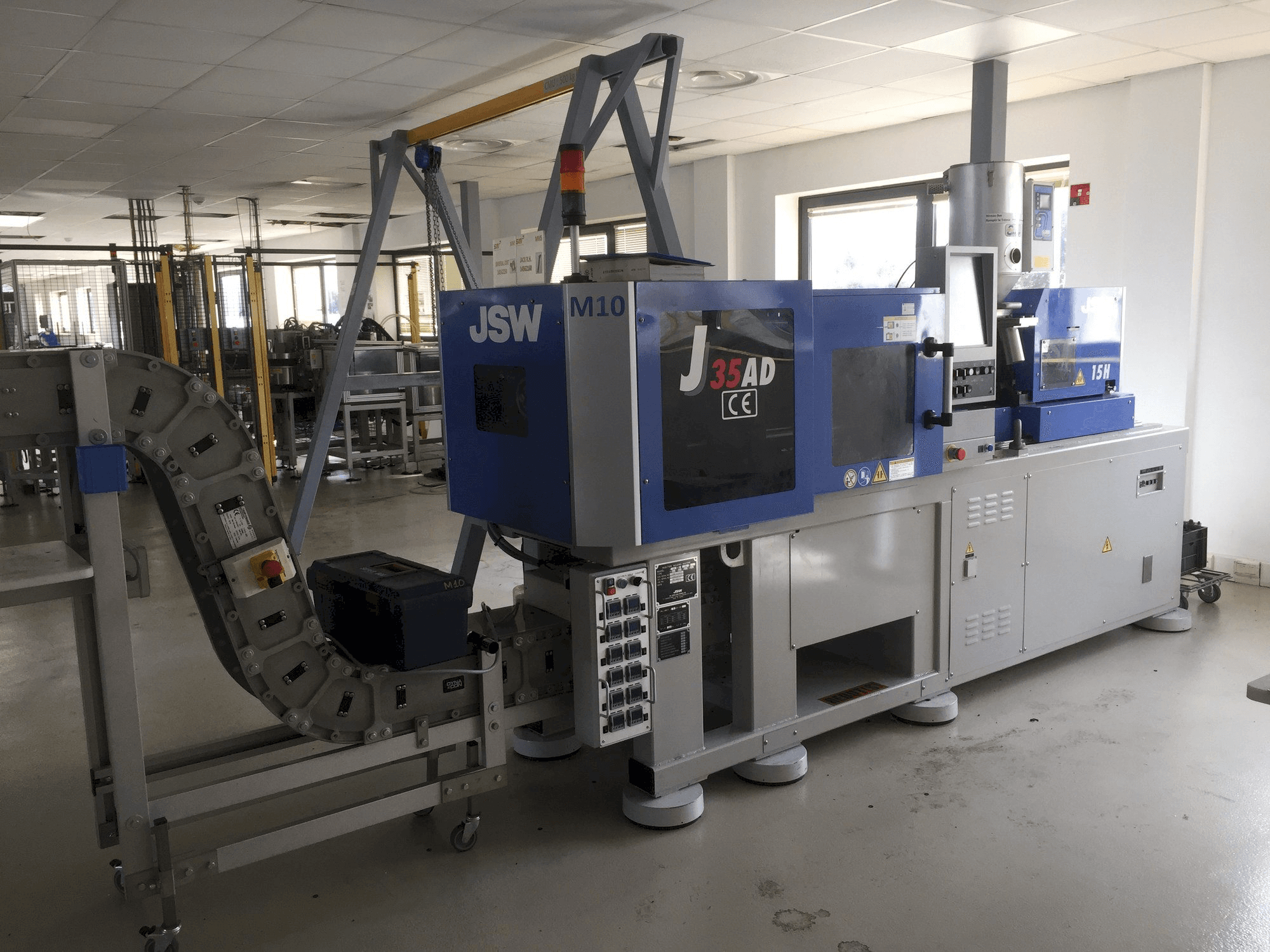

JSW J 35 AD 15 H Injection Moulding Machine

Show in original language

This JSW J 35 AD 15 H Injection Moulding Machine was built in 2014. It is operated through a JSW SYSCOM 3000 control unit. This machine can work with a clamping force of 334 kN, and a injection screw size of 16 mm. It includes a hopper, hopper loader, dryer for plastics granules, and a vibrating sorter.

Overview

brand: JSW
year: 2014
MODEL: J 35 AD 15 H
production hours: 14000
application type: Injection Moulding
Location: France
machine type: Electrical Injection Moulding Machine
availability: Sold

Technical Information - JSW J 35 AD 15 H

General Data

Measurements width: 3270 mm
Measurements depth: 1050 mm
Measurements height: 1600 mm
Machine weight: 2500 kg

Control Unit

Model: Syscom 3000

Injection Unit

Screw diameter: 16 mm
Shot weight: 10 g
Stroke volume: 12 cm3 CM³
Injection pressure: 276 mPA BAR
Plasticizing rate max.: 11 kg/h
Screw speed: 500
Nozzle pressure: 9.9 kN

Clamping unit

Clamping force: 334 kN
Opening stroke: 230
Mould height min: 150 mm
Mould height max: 380 mm
Size of mold platens: 180 * 150
Ejector stroke: 50 mm
Ejector force for / back: 9.9 kN

Additional equipment

- VARIATOR - CORE UNSCREWING
- INTERFACE CONVEYOR (TA-CC75°-6 DYNACON) IMM
- INTEGRATED HOT RUNNERS (2 TO 12 zones)
- VIBRATING SORTER
- HOPPERHOPPER LOADER + DRYER FOR PLASTICS GRANULES

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
