JORDI - PH 6225FR-BEN-JOR-2009-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

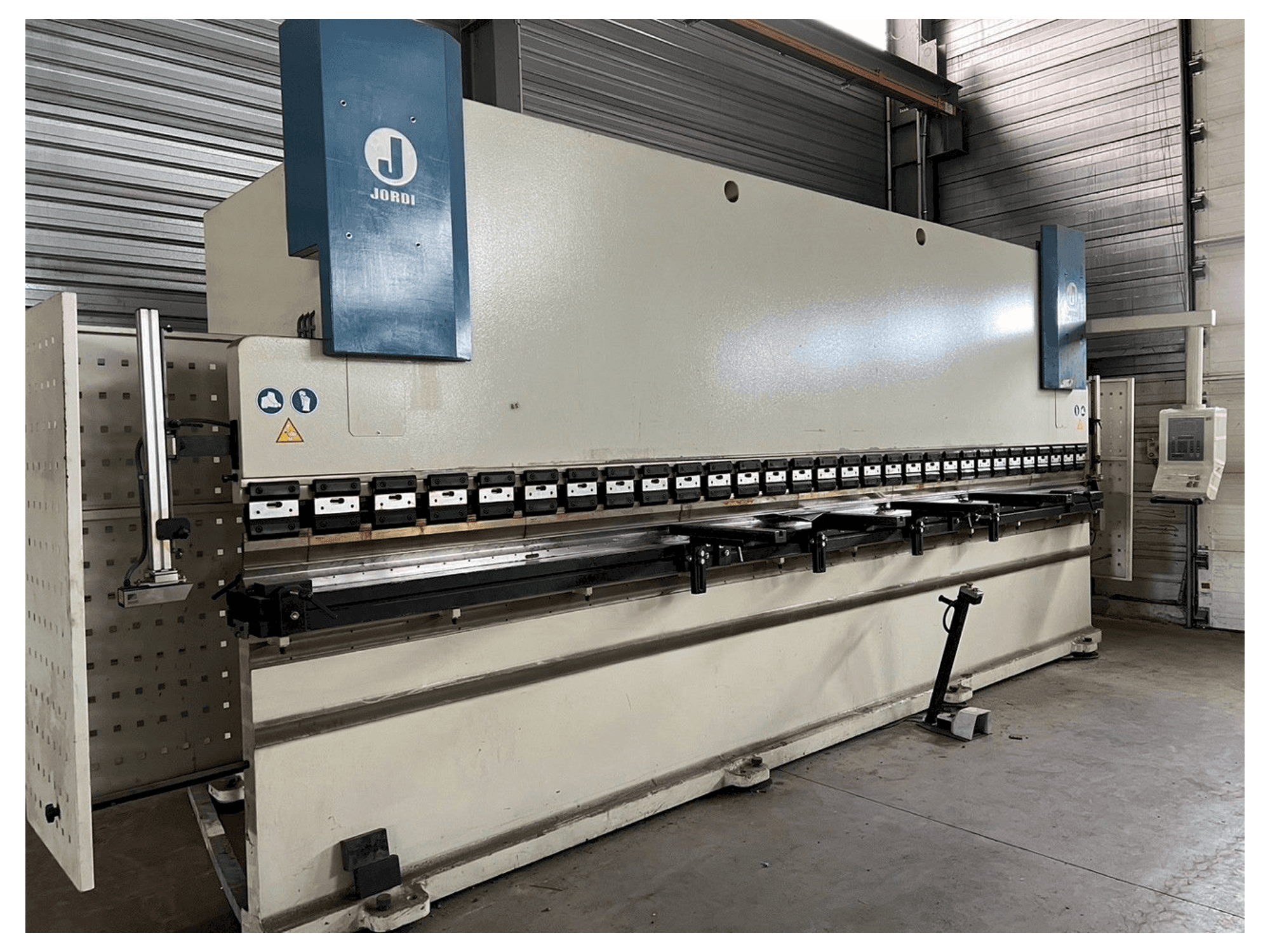

JORDI PH 6225 Bending machine

Show in original language

This JORDI PH 6225 Bending machine was made in 2009 in Spain and has under 2000 production hours. It is equipped with a CYBELEC DNC60 control unit. The machine has a bending force of 2250 kN, is in very good condition and well maintained.

Overview

brand: JORDI
year: 2009
MODEL: PH 6225
production hours: 2000
application type: Bending
Location: France
machine type: Hydraulic Press
availability: Sold
control unit brand: CYBELEC

Technical Information - JORDI PH 6225

General Data

Measurements width: 6500 mm
Measurements depth: 2200 mm
Measurements height: 2950 mm
Machine weight: 19900 KG

Control Unit

Model: DNC60
Brand: CYBELEC

Main drive

Bending length: 6050 mm
Stroke: 200 mm

Media

Main electronic connection: 380 V / 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Power 2250 kn
- - Distance between frames 5100 mm
- - C frame 400 mm
- - Cnc cybelec dnc60 managing y1y2 - x - r
- - Strong back gauge with axis x-r & 4 stop bumpers movable on thk rail
- - Motorized crowning adjustment table
- - 4 front adjustable consols (arms)
- - Set of tools like new
- - No foundation
Qualitative Machine Benefits:
- - Machine is like new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
