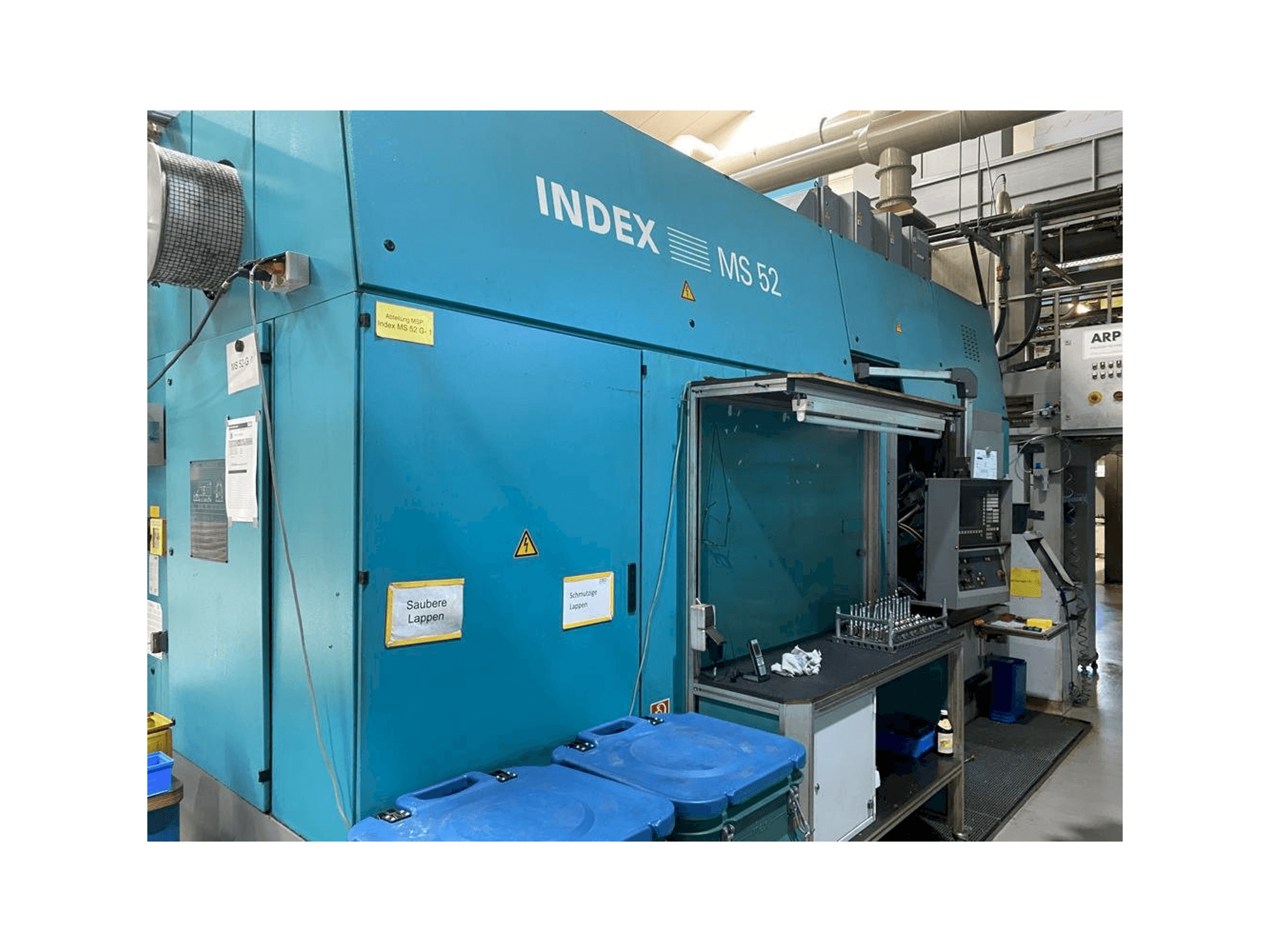

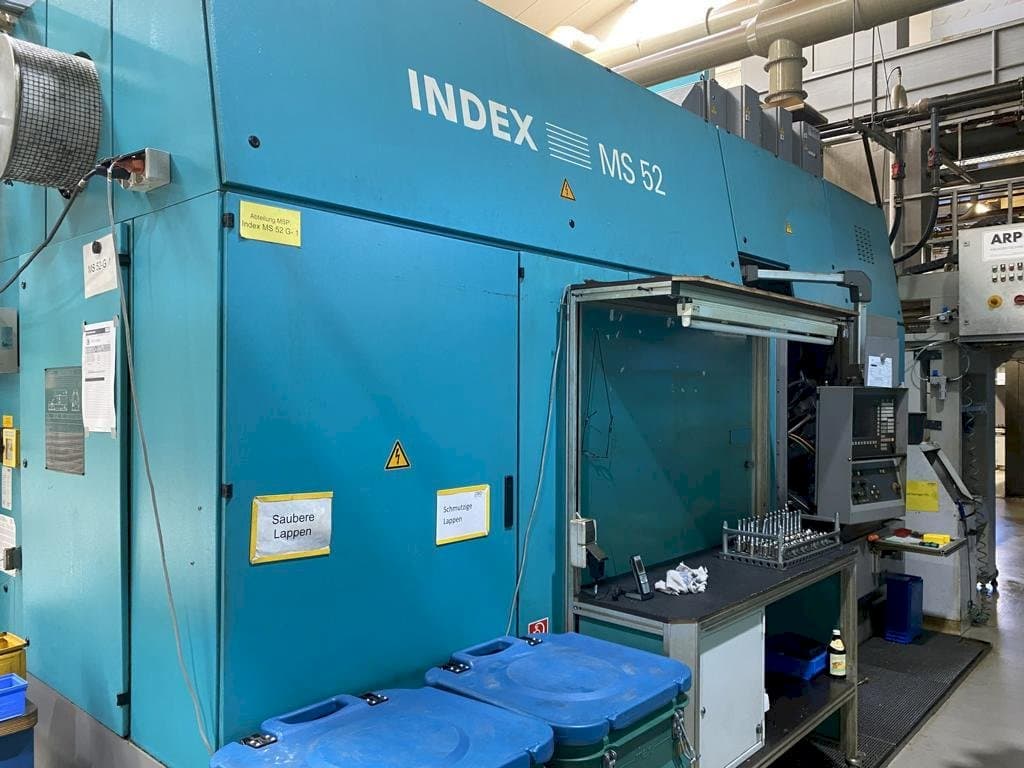

Index MS 52 G Lathe

Show in original language

This Index MS 52 G Lathe was made in the year 2004. It is operated with a Siemens 840 D control unit and has 3 axis. The machine has a spindle speed of 5000 rpm and a robot gripper arm is included.

Overview

brand: Index
year: 2004
MODEL: MS 52 G
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Index MS 52 G

Control Unit

Model: 840 D
Brand: SIEMENS

Main drive

Spindle speed range: 5000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 500 mm

Tools

Number of stations: 24

Media

Main electronic connection: 400 V / 50 hz
Power consumption: 190 kva

Additional equipment

- Robot gripper arm
- handling

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar capacity: 52 mm
- - 6 main spindles
- - 6 counter spindles
- - Tool carrier
- - 2 control stations
- - Fire extinguishing system kraft & bauer
- - Handling system with position gripper
- - Conveyor belt
- - Oil mist extraction system
- - Hydraulic system connected to central oil supply system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
