- Index G200 Lathe

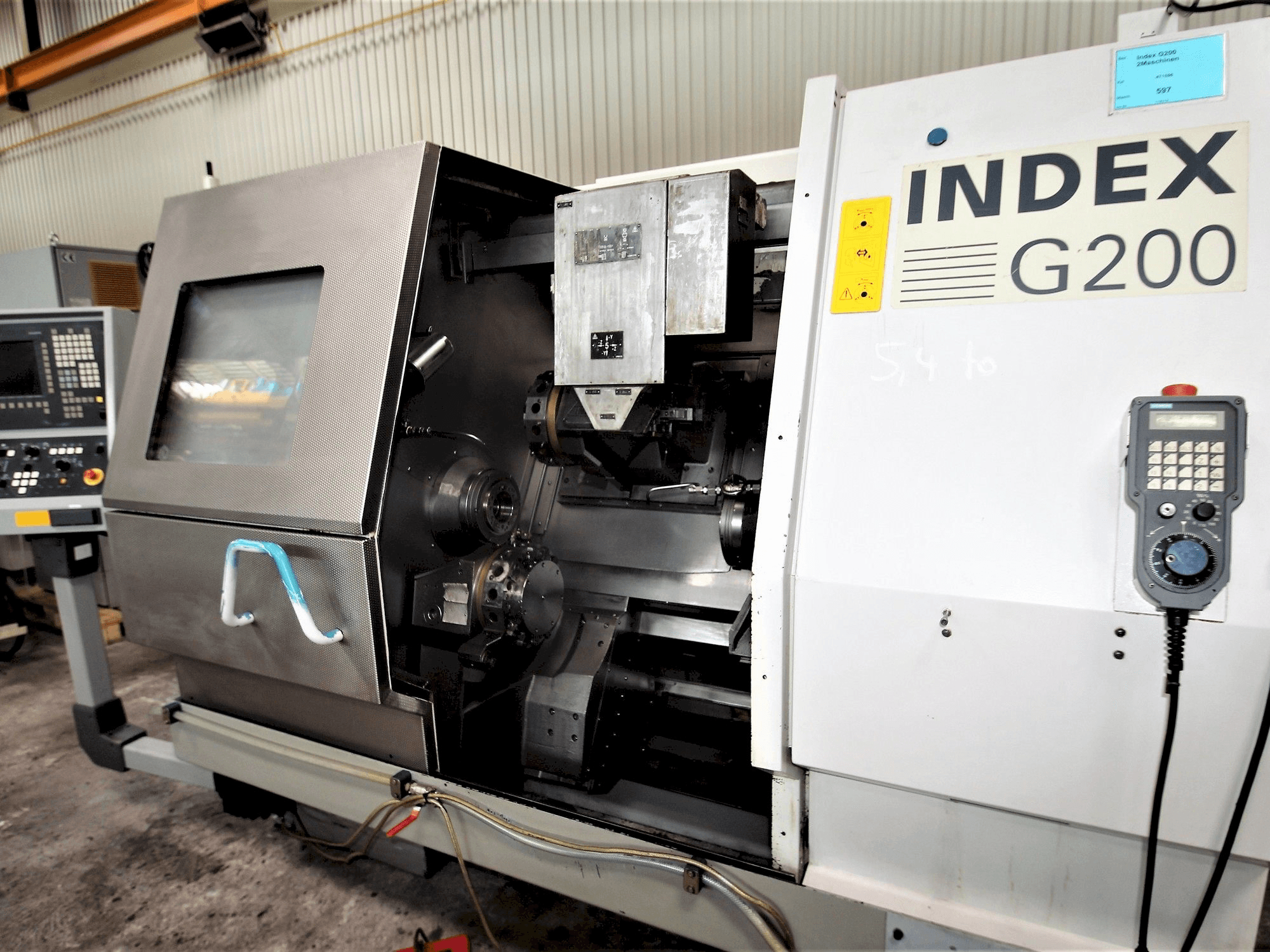

This Index G200 Lathe was built in 2002 in Germany. It is equipped with a SIEMENS SINUMERIK Control unit. This machine stands out for its 2 NC axis drives for longitudinal gripper travel and gripper stroke, including a protective cover of the travel range.
Overview
- brand: Index
- year: 2002
- MODEL: G200
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: SIEMENS
Technical Information - Index G200
Control Unit
- Model: SINUMERIK
- Brand: SIEMENS
Main drive
- Spindle speed range: 5000 1/MIN
- Spindle motor power: 29 kW
Movement
- X-AXIS Movement: 120 mm
- X-AXIS Feed Force: 5000N
- X-AXIS Rapid traverse: 20m/min
- Y-AXIS Feed Force: 5000N
- Y-AXIS Rapid traverse: 30m/min
- Z-AXIS Movement: 400 mm
Workpiece
- Workpiece drm: 100 mm
Tools
- Number of stations: 14
Additional Information
- Technical Machine Benefits:
- - Chuck parts
- - Shaft parts
- - Portal with 2-jaw double gripper
- - 2 nc axis drives for longitudinal gripper travel and gripper stroke
- - Blowing device for blowing off the whu portal arm and the workpiece
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
