➤ Used Imet X-TECH 410 - 2013 - Sawing Machine

Show in original language

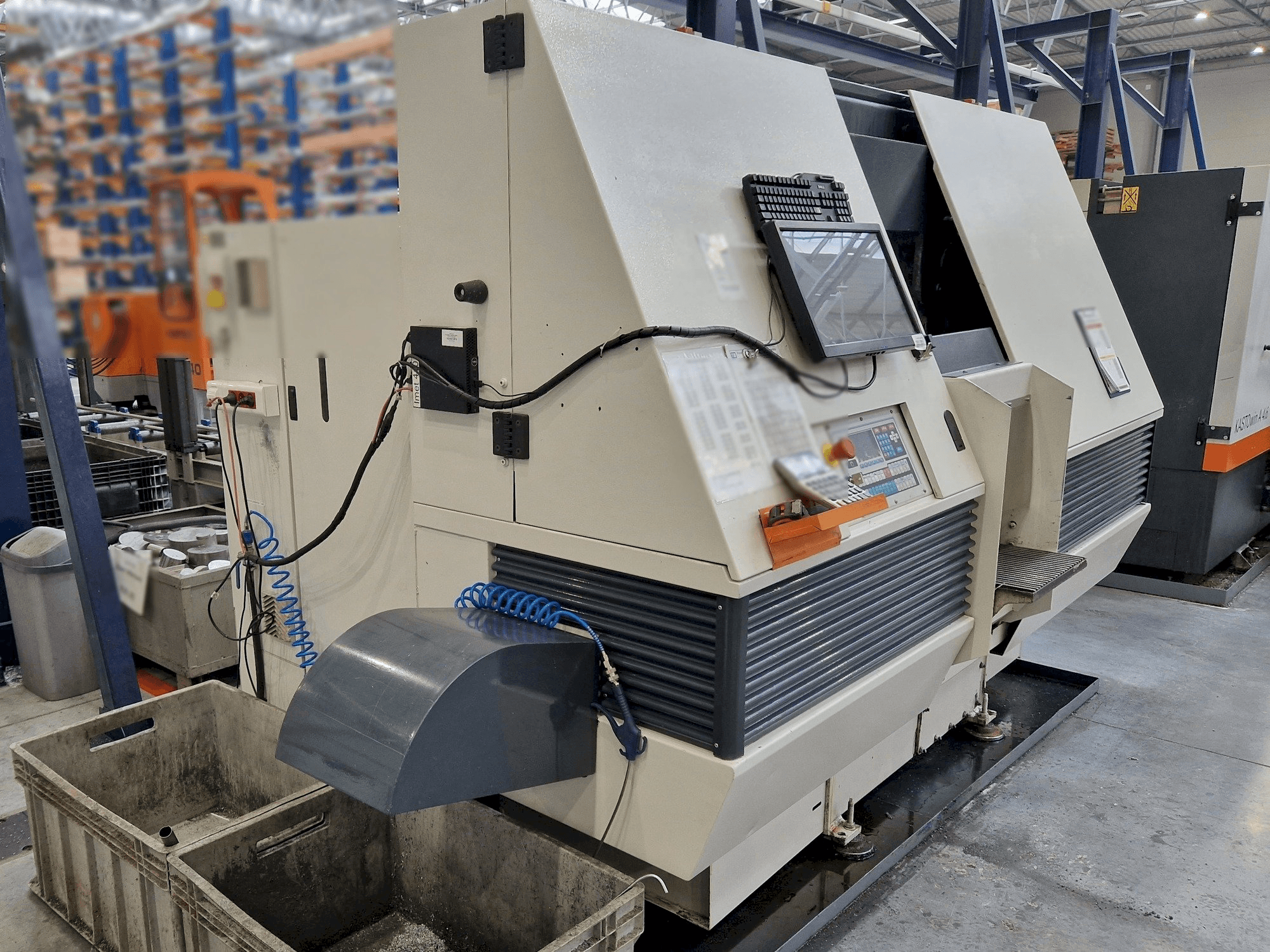

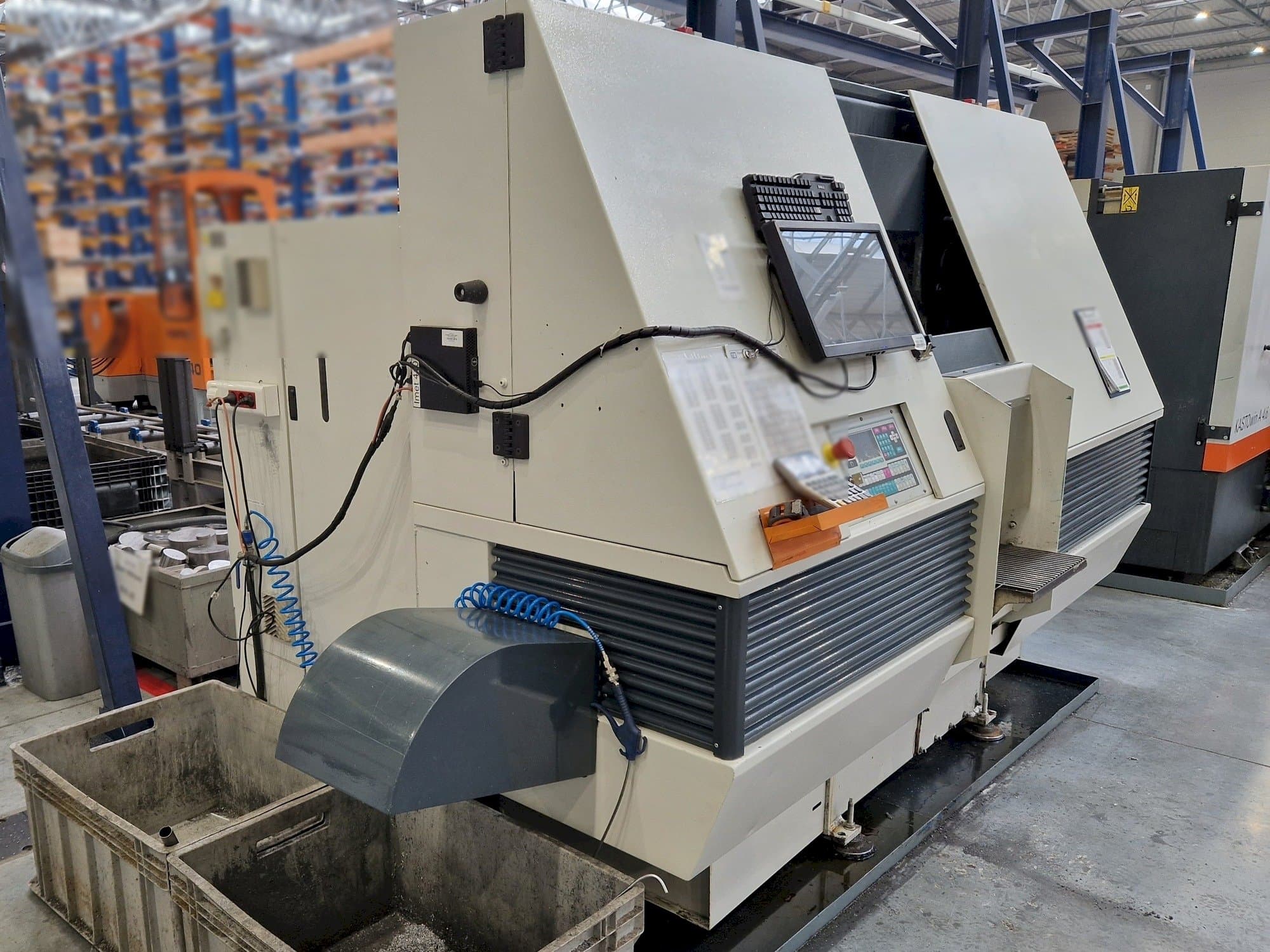

This Imet X-TECH 410 Sawing Machine was built in 2013 in Italy. It is equipped with an Imet control unit. This machine has a max cutting diameter of 410 mm, a max square cutting size of 410 x 410 mm, and a max rectangle cutting size of 420 x 410 mm. It includes a bar feeder. The machine is in very good working condition, and ready for testing.

Overview

brand: Imet
year: 2013
MODEL: X-TECH 410
application type: Sawing
Location: Poland
machine type: Metal Band Saw
availability: Sold

Technical Information - Imet X-TECH 410

General Data

Measurements width: 3500 mm
Measurements depth: 2000 mm
Measurements height: 2200 mm
Machine weight: 3450 kg

Media

Main electronic connection: 400V / 50Hz

Additional equipment

- Bar feeder

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max cutting diameter: 410 mm
- - Max square cutting size: 410 x 410 mm
- - Max cutting size of rectangle: 420 x 410 mm
- - Beam cut: 410 x 300 mm
- - Motor power: 6 kw
- - Speed variation = 12-100 (meters per minute)
- - Belt size: 6150 x 41 mm
Qualitative Machine Benefits:
- - The machine is in very good working condition
- - Ready for test.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
