Hyundai Wia L 700MA

Show in original language

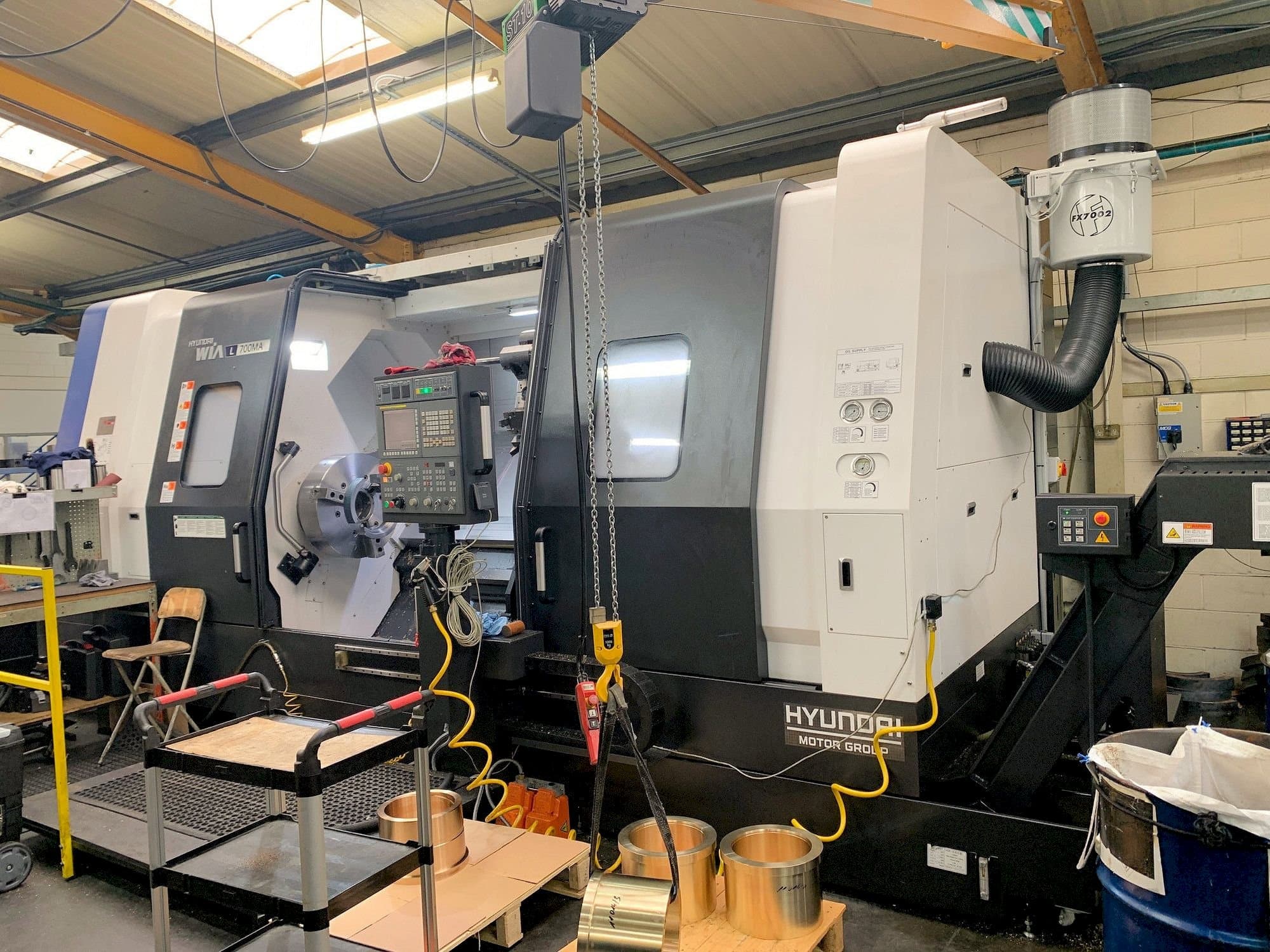

This Hyundai Wia L 700MA lathe was manufactured in 2019. This 3 axis machine has a spindle speed up to 1500 rpm and a bar capacity 165 mm. It is in very good condition.

Overview

brand: Hyundai Wia
year: 2019
MODEL: L 700MA
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - Hyundai Wia L 700MA

General Data

Measurements width: 7077 mm
Measurements depth: 3075 mm
Measurements height: 2700 mm
Machine weight: 18000 Kg

Main drive

Number of spindles: 1
Spindle speed range: 1500 1/MIN
Spindle motor power: 45 kW
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
Z-AXIS Movement: 1680 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 1050 mm, over carriage 820 mm
- - Maximum machining diameter 920 mm
- - Maximum machining length 1650 mm
- - Bar capacity 165 mm
- - Milling power 11 kw; speed 3000 rpm
- - 0. 001 degree c axis
- - Chuck size 24''
- - C axis & milling function
- - Tool setter, coolant, tailstock, tooling
- - 3 controlled axes (x, z, c)
Qualitative Machine Benefits:
- - Very good condition of the machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
