Hyundai Wia - HD 2600SYDE-TUR-HYU-2022-00001

Name: Hyundai Wia HD 2600SY
Brand: Hyundai Wia
SKU: DE-TUR-HYU-2022-00001
Price: 12031600 INR
Availability: InStock

Rs. 12,031,600

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Hyundai Wia HD 2600SY For Sale | gindumac.com

Show in original language

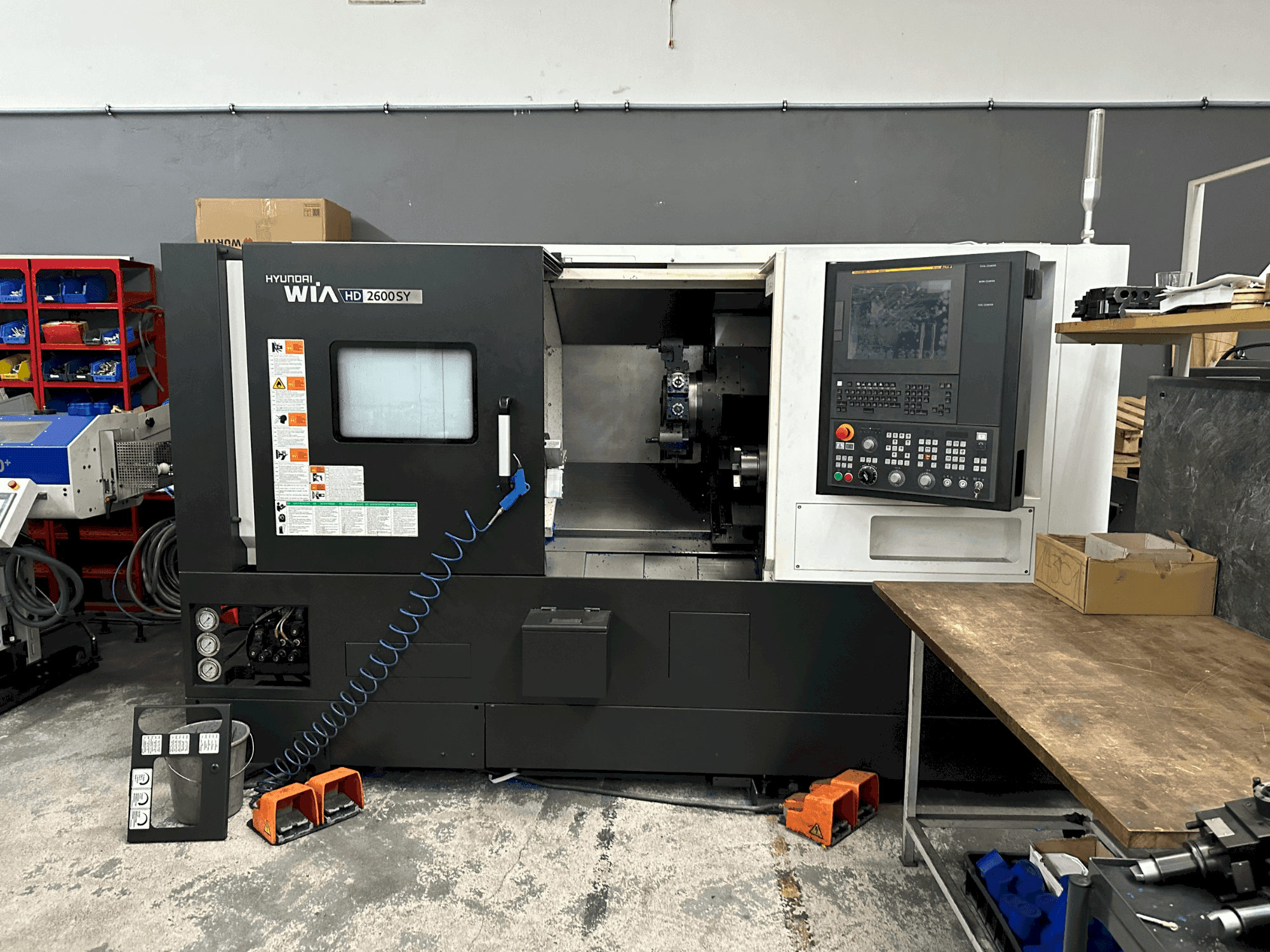

This 4-axis Hyundai Wia HD 2600SY was manufactured in 2022. It features a maximum turning diameter of 300 mm, turning length of 610 mm, and bar capacity of 81 mm. Equipped with a HW Fanuc FOi Plus control system, it offers spindle speeds up to 3,500 rpm and driven tools speed of 6,000 rpm. Consider the opportunity to buy this Hyundai Wia HD 2600SY horizontal turning machine. Contact us for further details regarding this machine.

Overview

brand: Hyundai Wia
year: 2022
MODEL: HD 2600SY
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - Hyundai Wia HD 2600SY

Control Unit

Brand: FANUC
Model: FOi Plus

Main drive

Spindle speed range: 3500 1/MIN
Spindle motor power: 15/18.5 kW (max)
Number of axis: 4

Movement

X-AXIS Movement: 215 mm
Y-AXIS Movement: 110 mm [±55]
Z-AXIS Movement: 680 mm

Workpiece

Workpiece drm over bed: 820 mm
Workpiece drm: 300 mm

Additional equipment

- 2x straight driven tool holders
- 2x angled driven tool holders
- 15-inch touch display
- Fanuc Smart Guide
- Part program storage: 2MB

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning length: 610 mm
- - Bar capacity: 81 mm
- - Chuck size main spindle: 10 inches (-250 mm)
- - Chuck size sub-spindle: 5 inches (-130 mm)
- - 12 tool positions, bmt55
- - Manual tailstock mt#4
- - Driven tools speed: 6000 rpm, 5. 5 kw
- - Spindle nose: a2-8
- - Torque: 400. 7 nm (max)
- - C-axis: 0. 001
Qualitative Machine Benefits:
- - Coolant tank: 200 l
- - Coolant nozzle
- - Usb interface
- - Single-color signal light
- - Maintenance system: biobalance maintenance system for tanks up to 2m² surface area and a volume up to 500l
- - No loader included with the machine

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
