Hyundai Kia HiT-15S Lathe

Show in original language

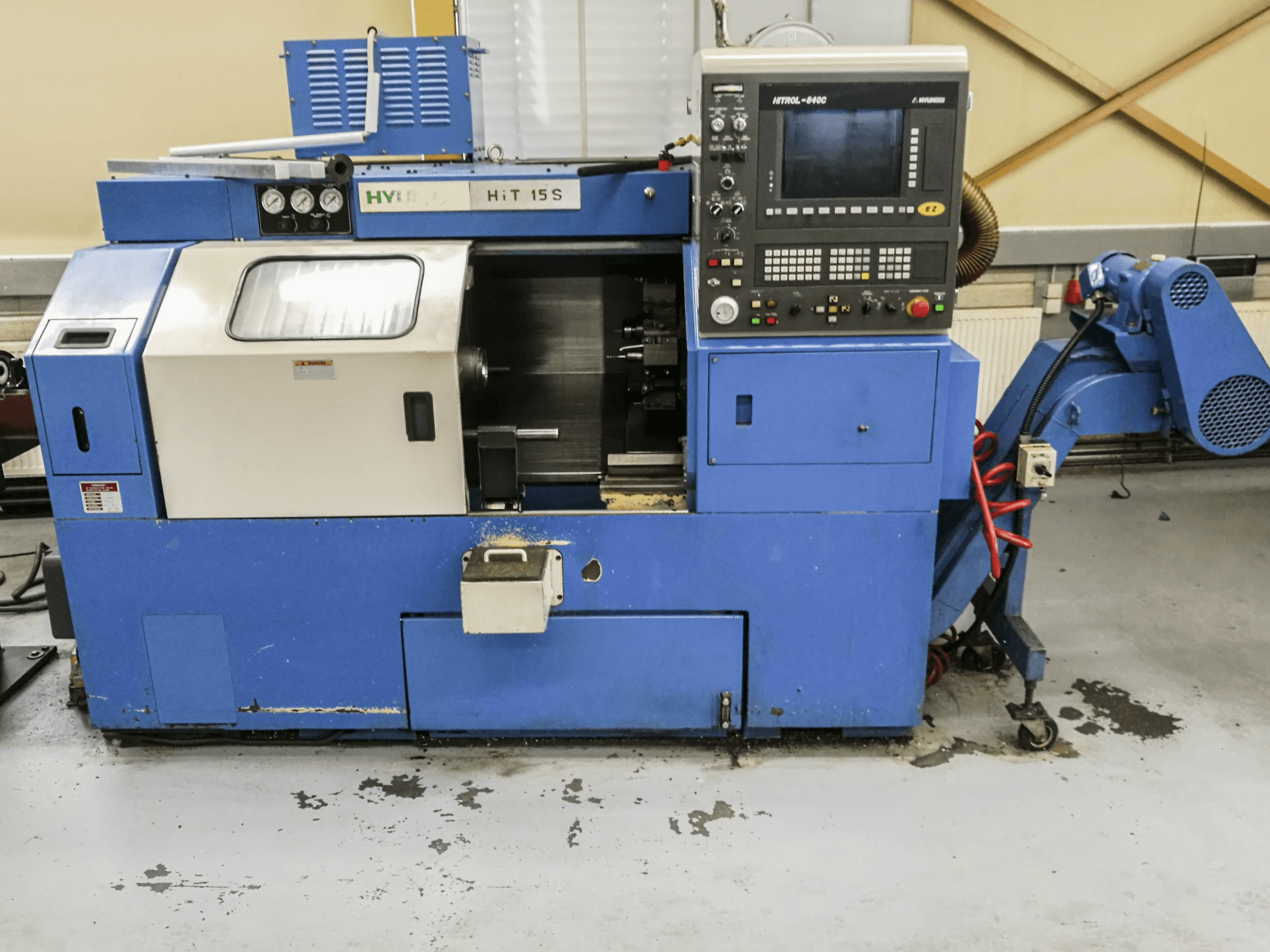

This Hyundai Kia HiT-15S Lathe was manufactured in Korea in 1995 and is operated through a Hyundai HITROL-840C Control unit. With a spindle speed range of 3600 rpm, this precise machine incorporates an additional bar feeder SAMECA Quicksam 7.52 and other several tools.

Overview

brand: HYUNDAI KIA
year: 1995
MODEL: HiT-15S
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - HYUNDAI KIA HiT-15S

General Data

Measurements width: 3300 mm
Measurements depth: 1650 mm
Measurements height: 2000 mm
Machine weight: 4200 kg

Control Unit

Model: HITROL-840C
CNC main language: German
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 30-3600 1/min

Movement

X-AXIS Movement: 180 mm
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 520 mm
Y-AXIS Rapid traverse: 24 m/min

Media

Main electronic connection: 380 V
Power consumption: 23.5 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Tools
- Bar feeder SAMECA Quicksam 7.52

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
